PH60B PHONO STAGE
Haer
2
9
4
5
6 7 8

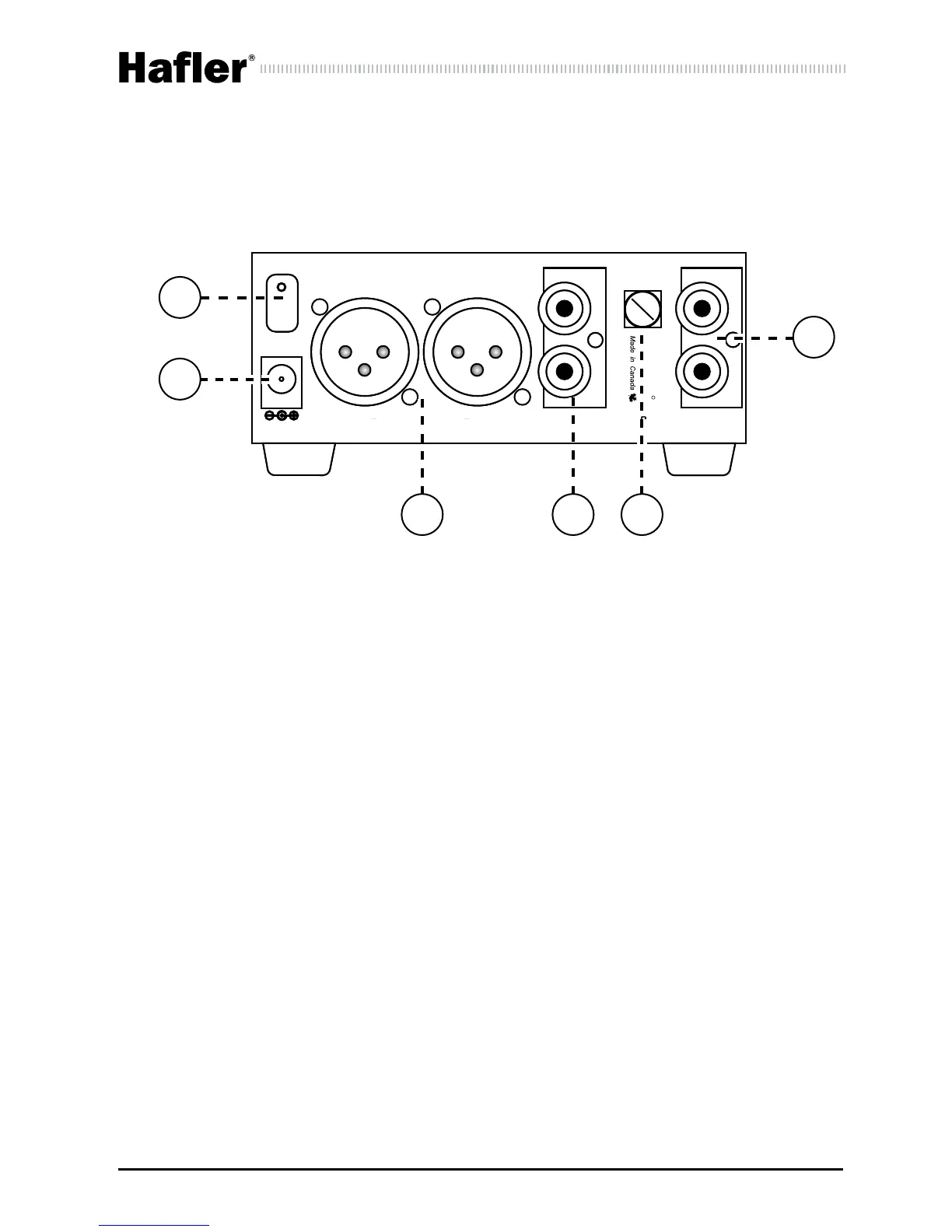

4. CABLE CLAMP: Secures the power supply cable
5. 15VDC: external power supply connection
6. BALANCED OUTPUTS: XLR outputs connect to a recording inter-
face or balanced HIFI system inputs
7. UNBALANCED OUTPUTS: RCA output to feed the receiver
8. GROUND LUG: For turntable to eliminate hum and buzz
9. INPUT: RCA input to connect your turntable to the PH60B
