Haier 2U18MS2HDA1 - Wall Brackets

31-5000564 Rev. 1 15
ENGLISH
INSTALLATION INSTRUCTIONS

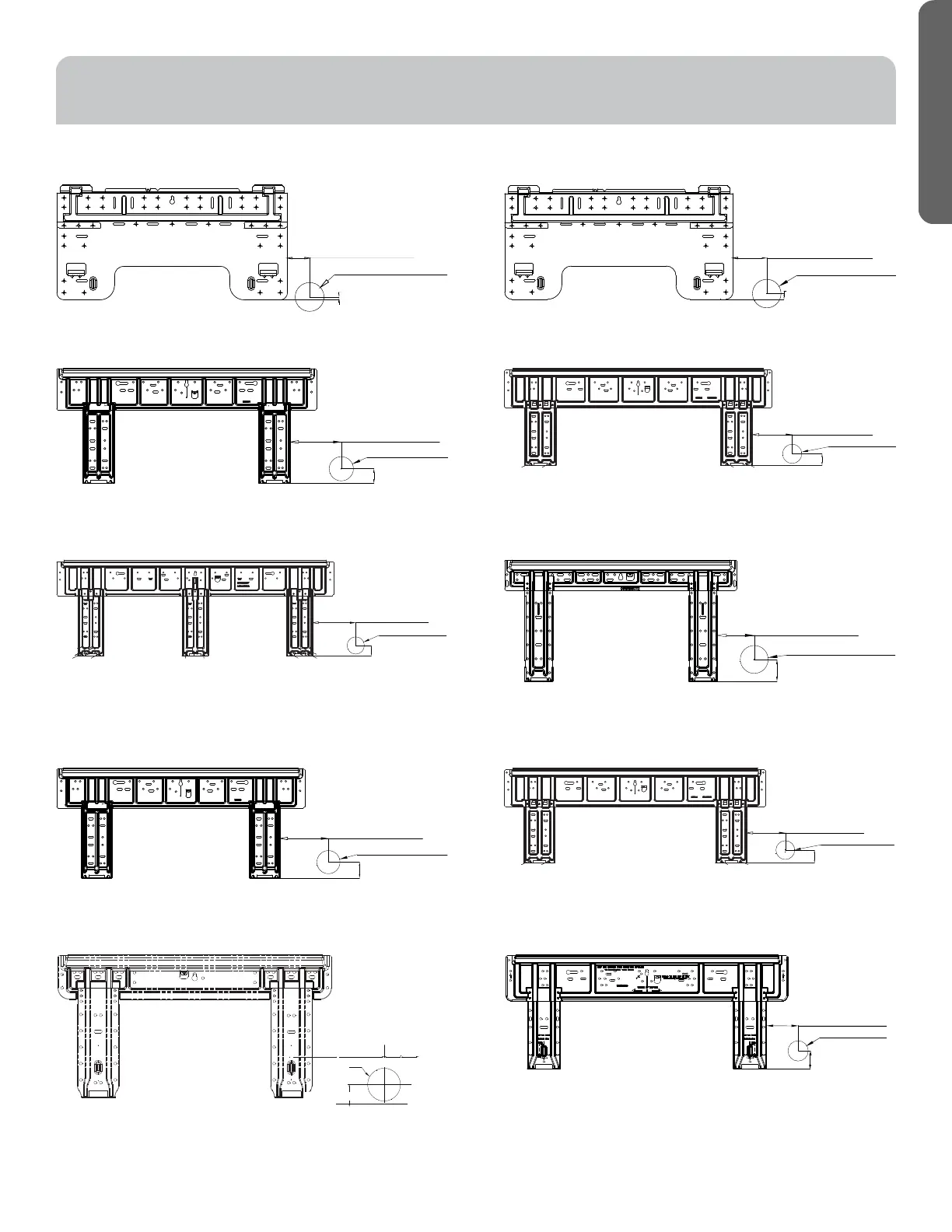

Wall Brackets
35 N
1.84in (46mm)
0.236in (6mm)
Ø 2 1/4in (57mm)
40 N
2.795in (71mm)
0.472in (12mm)
Ø 2 1/4in (57mm)
4.961in (126 mm)
1.417in (36mm)
50 N
Ø 2 1/4in (57mm)
1.417in (36mm)
4.882in (124mm)
Ø
2 1/4in (57mm)
70 N
4.961in (126mm)
1.614in (41mm)
50 T
Ø 2 1/4in (57mm)
1.614in (41mm)
4.882in (124mm)
Ø 2 1/4in (57mm)
70 T
5.906in (150mm)
1.417in (36mm)
Ø 2 1/4in (57mm)
100 N
3.150in (80mm)
1.85in (47mm)
35 T
Ø 2 1/4in (57mm)
4.53 in (115mm)
2 5/32 in (55 mm)
Ø 2 3/8 in (60 mm)
70 F
35F
6.75in (170mm)
2.50in (63mm)
1.625in (40mm)
Line set hole 2.25in (60mm)
