Haier 40D3505 - Chapter 3. Disassemble and Assemble; 40 D3505 Disassembly Procedure

Service ManualModel No.: 39D3005
Model NO.:40D3505

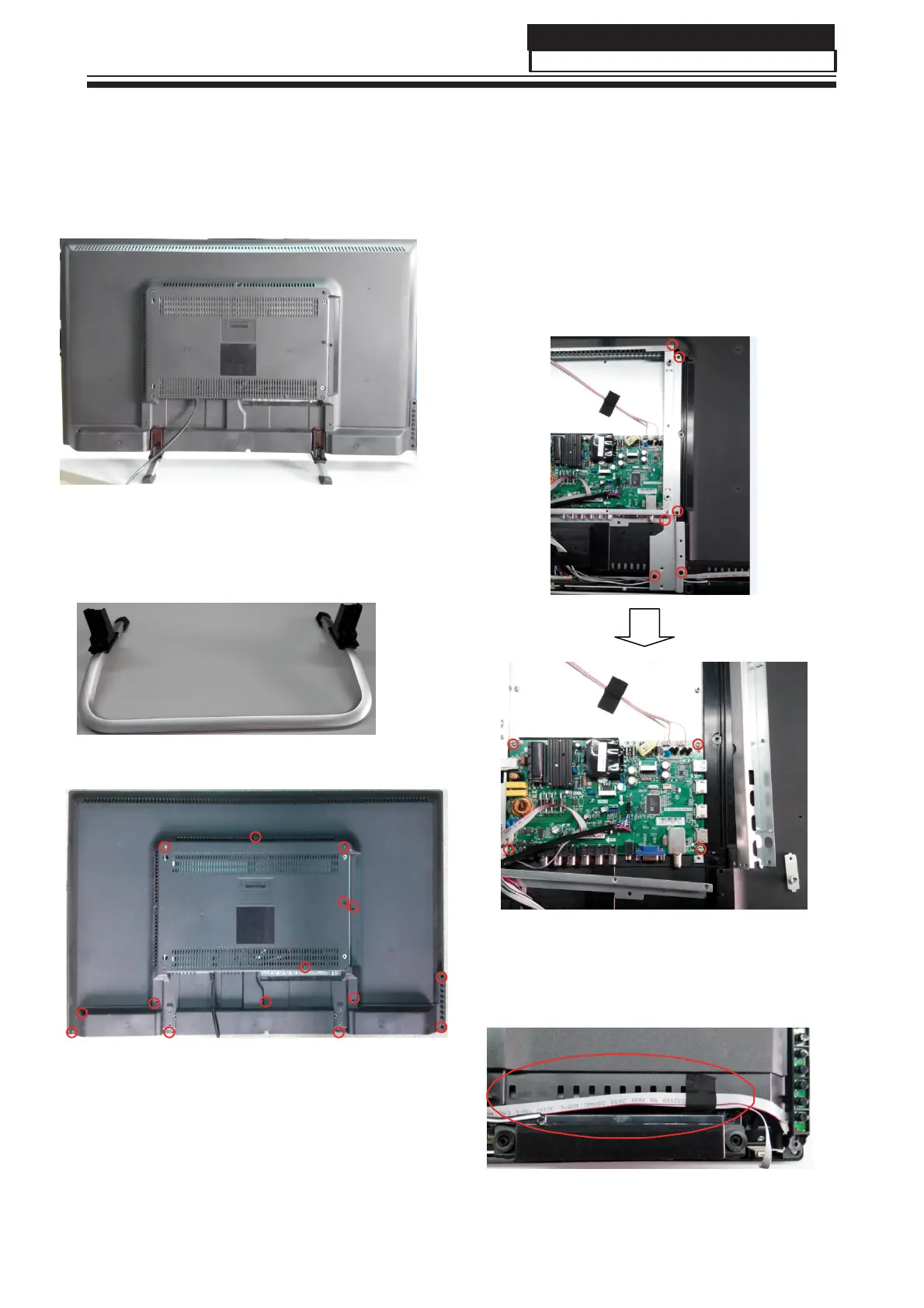

Chapter 3. Disassemble and Assemble
3-1. 40D3505
3-1-1. Remove the Stand
3-1-3. Remove the power-main board.
1. Remove the six screws indicated with red circles.
2. Then remove the side metal board and down metal board.
3. Remove the four screws indicated with red circles.
4. Remove the power-main board.
1. Lay down the TV set .
2. Remove the four screws from the stand which
in the picture above.
3. Remove the stand.
3-1-2. Remove the Back Cabinet
3-1-4. Remove the Speaker
Remove the speaker directly
1.Remove the fifteen screws indicated with red
circles.
2. Flip machine, panel side up.
3.Carefully raise the Front shell from
bottom.
11
