INSTALLATION
-10-
AV EQUIPMENT
The television's inputs can be connected to the following types of equipment: VCR, multi disc player,
DVD, camcorder, video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i, 1080p.
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
Blue(Pb)
Green(Y)
B
G
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
VIDEO EQUIPMENT with YPbPr
OPTICA L
AC- INPUT
100 -240V ~50/6 0Hz
Y/VIDE O
Pb Pr
L
R
AUDIO IN
HEADPH ONE
AV OUT
HDMI3
HDMI2(ARC)
VGA
R F
USB
MHL
HDMI1
Audio Receiver
W R
Y
W R
Y
G
B
R
W
R
G
B
R
W
R
There are three HDMI ports located on the back of your TV. You can connect a Blu-ray player,
DVD player, or other video equipment through these ports.
The port is MHL enabled. You can connect MHL devices, such as the compatible
mobile phones and tablets.
NOTE: a USB to HDMI cable is required to connect a mobile phone or tablet to the TV. Please
check the documentation of your device.

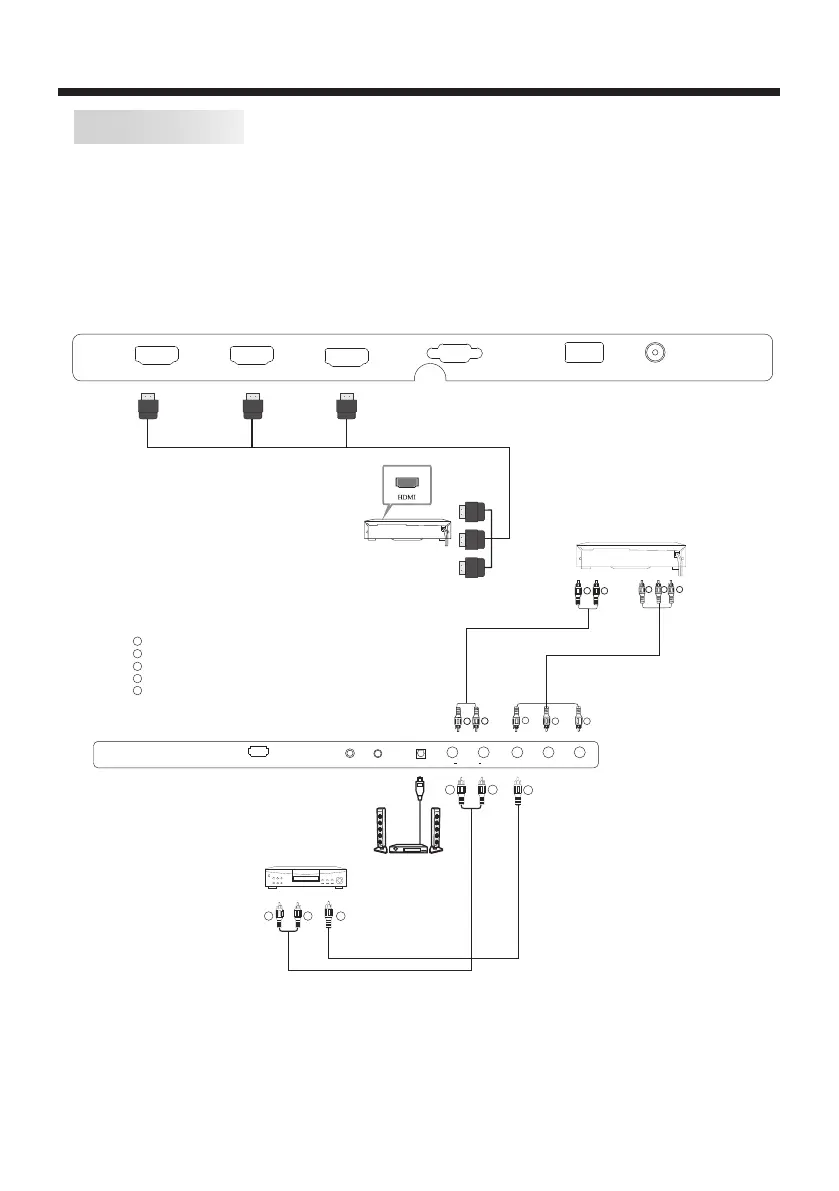

Please see the diagram below. You may also need to refer to the owner's manual of the device
that you are trying to connect.
HDMI1
There is one component (Y, Pb, Pr) and video input located on your TV. You can connect a VCR,
cable box, or other video equipment to these jacks.
To Next Page
