11.1.2 Indoor unit
NOTE:
1. Dashed parts
are not availble in convertible type
2. Dashes part is not avaliable below Cooling capacity 42000Btu
type
3. Remote central controller
is optional
4. P16 and P17 are used for room card function

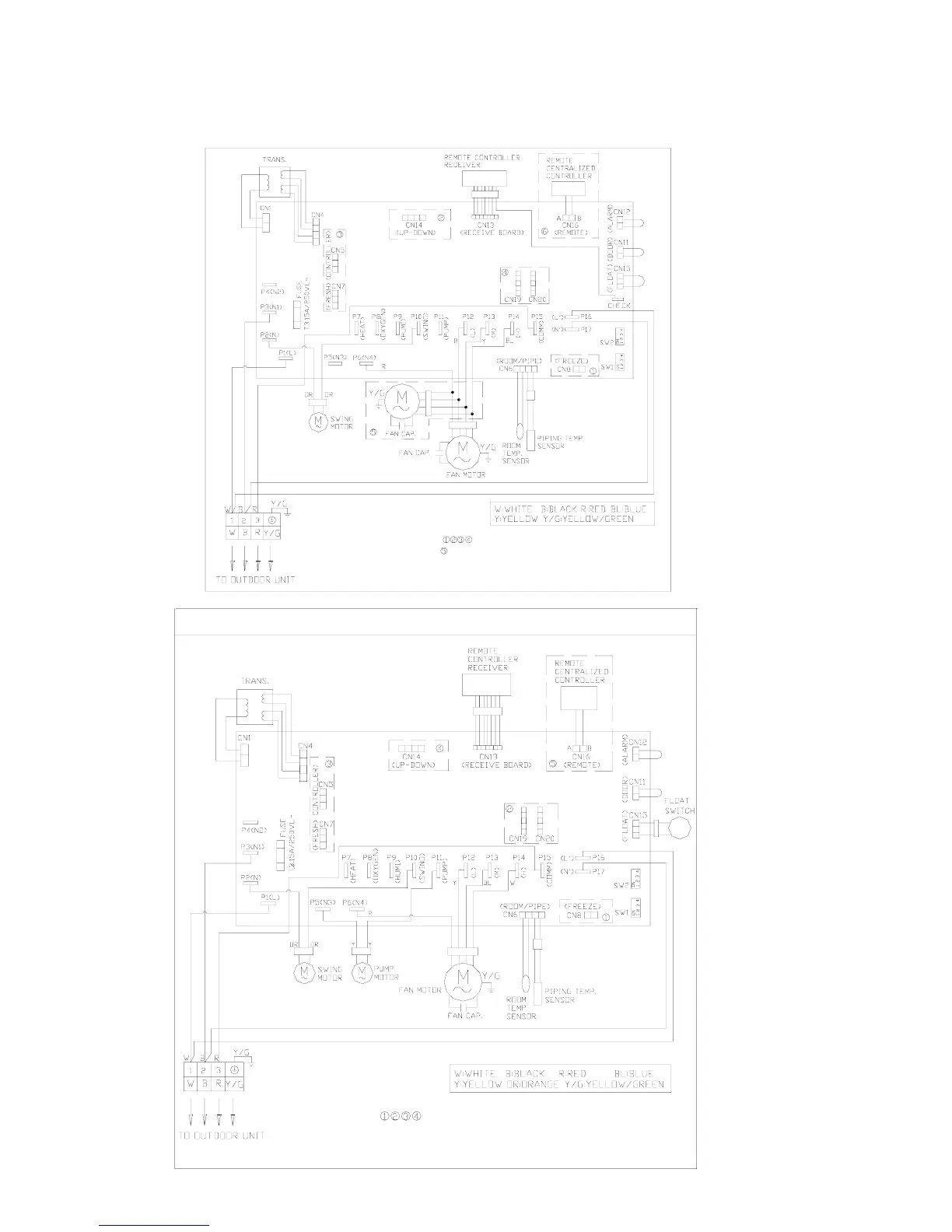

over 24000BTU/h convertible type wiring diagram
NOTE:
1. Parts
in dashed frame are not available for cassette type
unit
2. Central controller is optional
3. P16 and P17 are used for room card function
over 24000BTU/h cassette type wiring diagram
