SERVICE MANUAL
Model:AFD631GW/GB/GR
14
Issue 201003
Rev. Ref11003S006V0

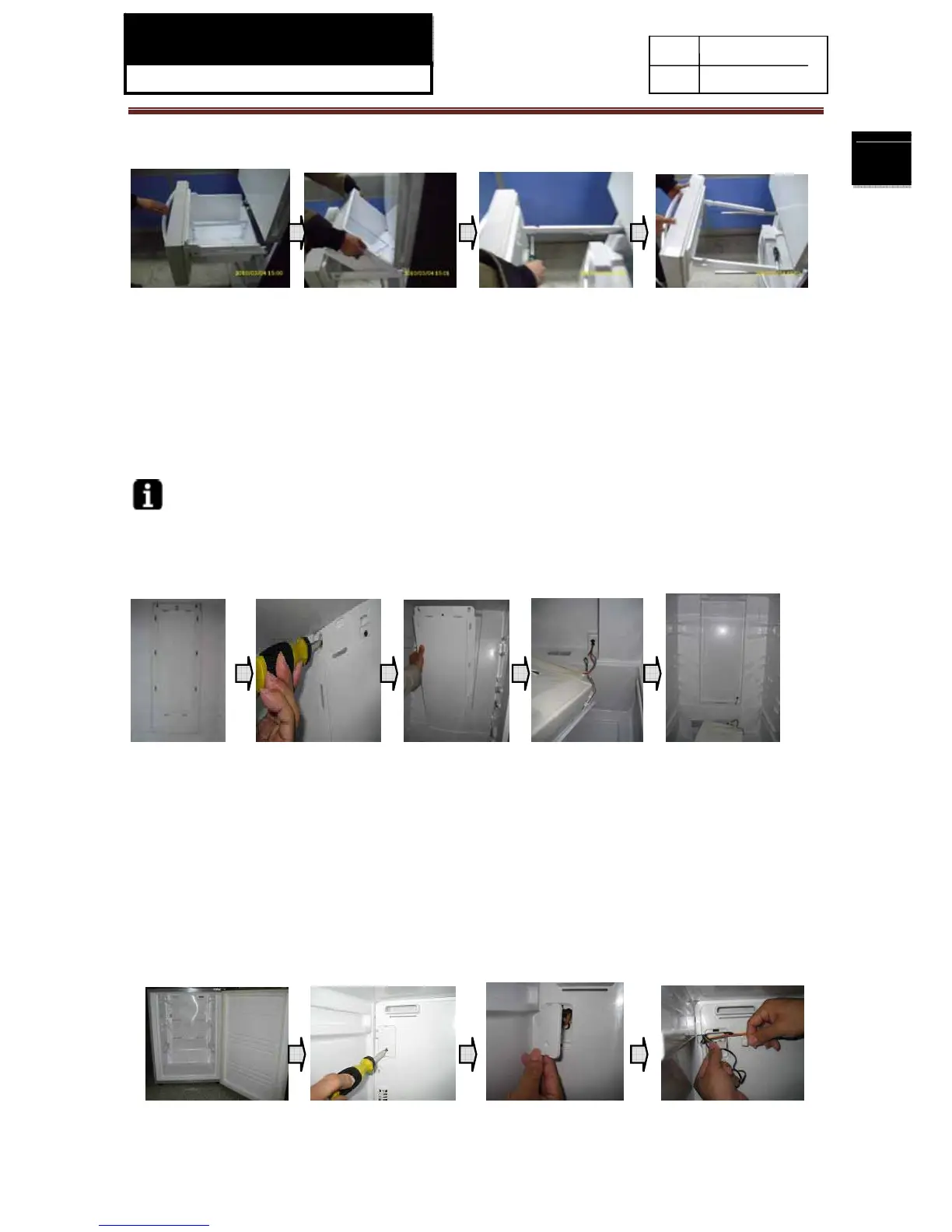

3-3 Removing the Freezer Drawer
(1) Open the freezer storage compartment door of the 3-door refrigerator;
(2) Take out the drawer;
(3) Detach the screw connecting the rail and the support iron (the screw may be on the inner side of the
support iron due to the rail);
(4) Remove the door.
3-4 Removing the Air-Duct
Unplug the refrigerator before removing the air-duct
3-4-1 Removal of fridge air-duct
① ② ③ ④ ⑤
(1) Take out the accessories in the fridge storage compartment which may interfere with the removal
of the air-duct (including shelves, large and small crispers, air-duct decoration strips) (fig. ①);
(2) Detach the 2 screws in the upper part of the air-duct (fig. ②);
(3) Tilt the refrigeration air-duct forward entirely around its upper side until you can see the connector
on its lower side. Pull out the connector and you can remove the refrigeration air-duct (fig. ③④⑤);
3-4-2 Removal of freezing air-duct
