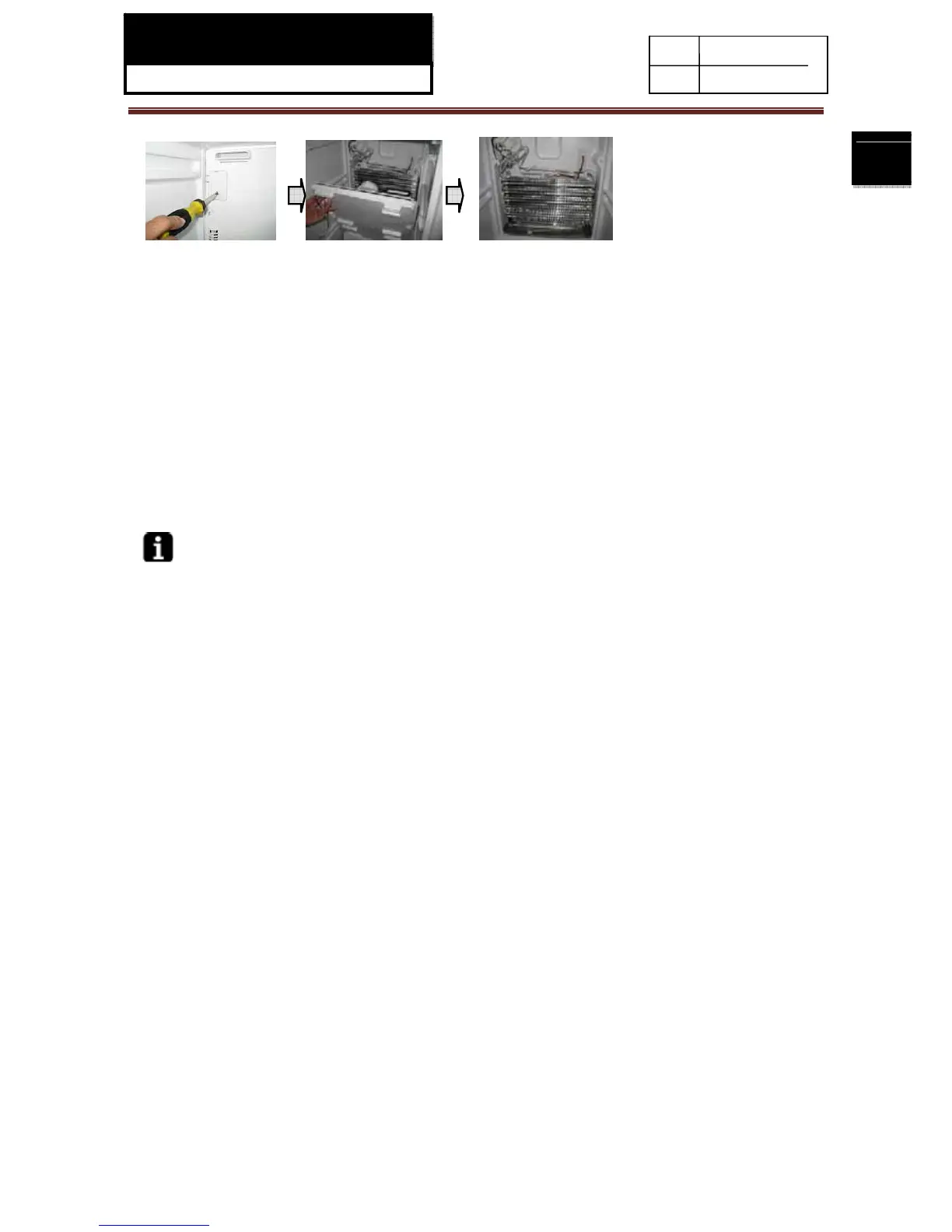

(1) Take out the accessories in the freezer storage compartment which may interfere with the
removal of the freezing air-duct (drawers of 2-door models, middle/bottom doors and drawers of
3-door models) (fig ①);
(2) Detach the screw in the harness cover over the freezing air-duct; (fig ②);
(3) Remove the harness cover. There is a small indentation on both upper side and bottom side of
the harness cover to facilitate the removal (fig ③);
(4) Pull out the wires under the harness cover and pull out the connector (fig ④);
(5) Detach the 2 screws in the freezing air-duct onto the freezer chamber (fig ⑤);
(6) Tilt the freezing air-duct forward from top to bottom and you can remove the air-duct (fig ⑥);
(7) Take out the freezing air-duct and the fin evaporator is just behind it (fig ⑦).
When reinstalling, please connect the connector first and then mount and fix the freezing
air-duct.
