SERVICE MANUAL
Model:AFD631GW/GB/GR
19
Issue 201003
Rev. Ref11003S006V0
4-2 Error code display and sensor positions
4-2-1 Sensor location description
Malfunction description Sign Display Display position Sensor location
Malfunction of the ambient
temperature sensor
H SNR F2 Display panel The ambient temperature sensor is
located on the display panel
Malfunction of the fridge
storage temperature sensor
R SNR F3 Display panel The fridge storage temperature
sensor is located on the right side
of the fridge storage compartment
Malfunction of the freezer
storage temperature sensor
F SNR F4 Display panel The freezer storage temperature
sensor is located on the left side of
the freezing air-duct cover
Malfunction of the defrosting
temperature sensor
D SNR F6 Display panel The defrosting temperature sensor
is located on the fin evaporator
Malfunction of
communication between the
display panel and the power
board
/ E0 Display panel /
Malfunction of the fan / E1 Display panel /

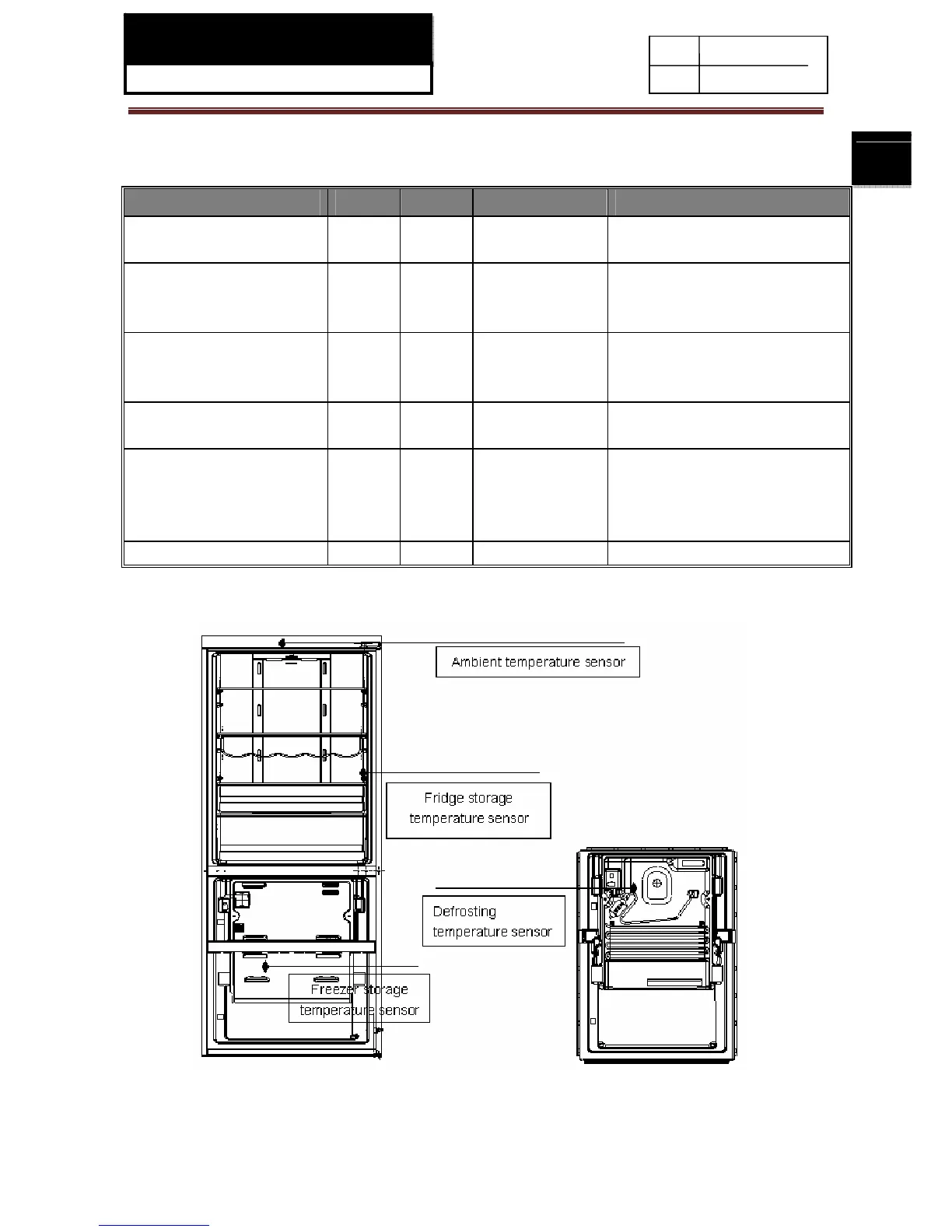

4-2-2 Graphic display of the sensor location
