6

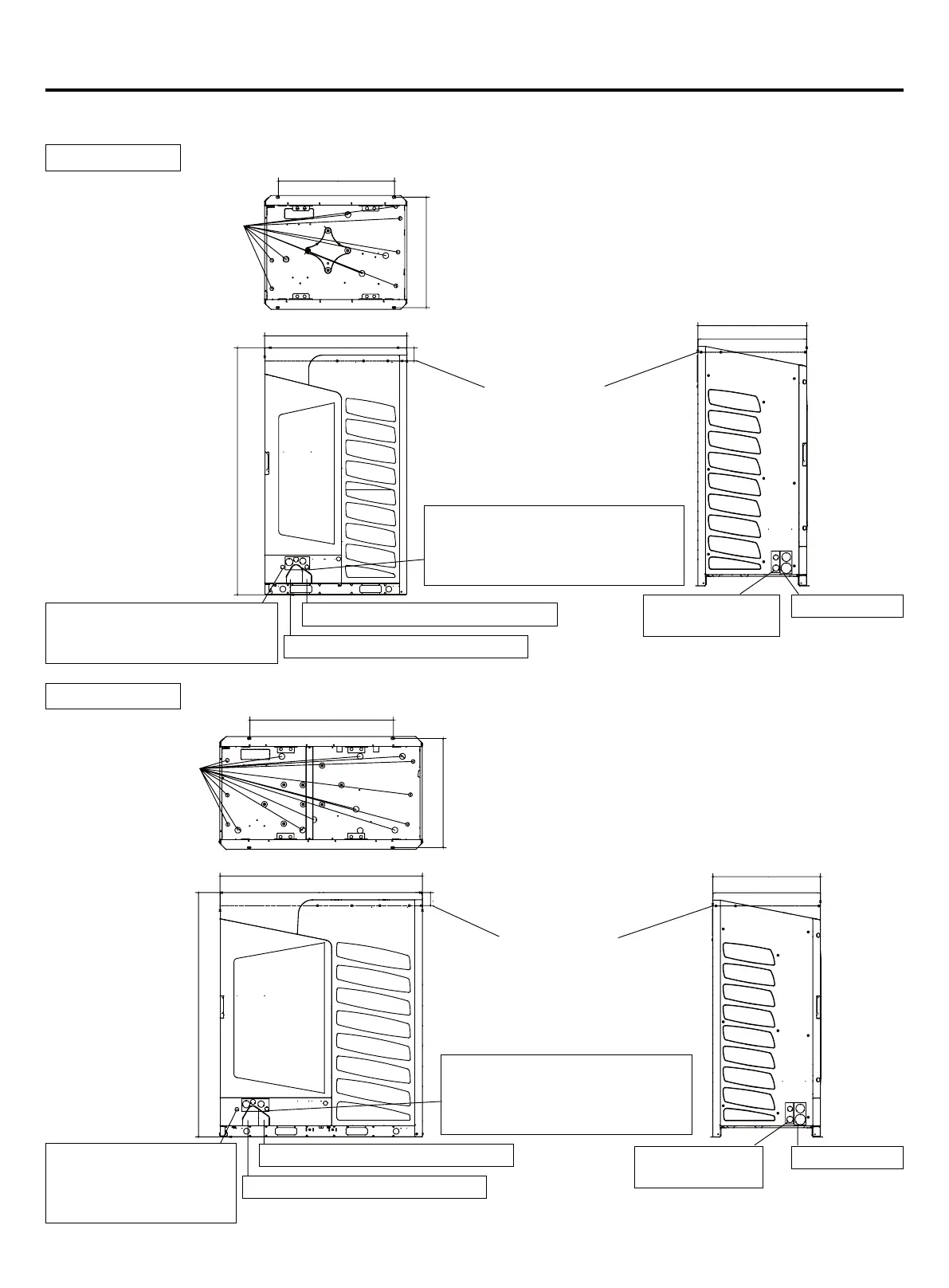

Outline and installation dimensions
AV08~16IMVEVA
AV18~26IMVEVA
Fixed hole distance
800mm
Drain hole
Fixed hole distance
755mm
980mm
Exhaust duct
connection position
1690mm
70mm
Signal wire hole diameter Ø25
(Use attachment rubber plug for
Line protection
）
Refrigerant pipe outlet
（
two pipe)
Refrigerant pipe outlet (Three pipe)
Power line outlet (According to the
choice of the power line diameter
size. The export, use the attached
wire into the sheath)
Signal line and
power line outlet
Line protection
750mm
Fixed hole distance
1000mm
Drain hole
Fixed hole distance
755mm
1410mm
1690mm
750mm
70mm
Exhaust duct
connection position
Refrigerant pipe outlet (Three pipe)
Power line outlet (According to the
choice of the power line diameter
size. The export, use the attached
wire into the sheath)
Signal wire hole diameter
Ø25 (Use attachment
rubber plug for Line
protection
）
Refrigerant pipe outlet
（
two pipe)
Signal line and
power line outlet
Line protection
Installation instruction
