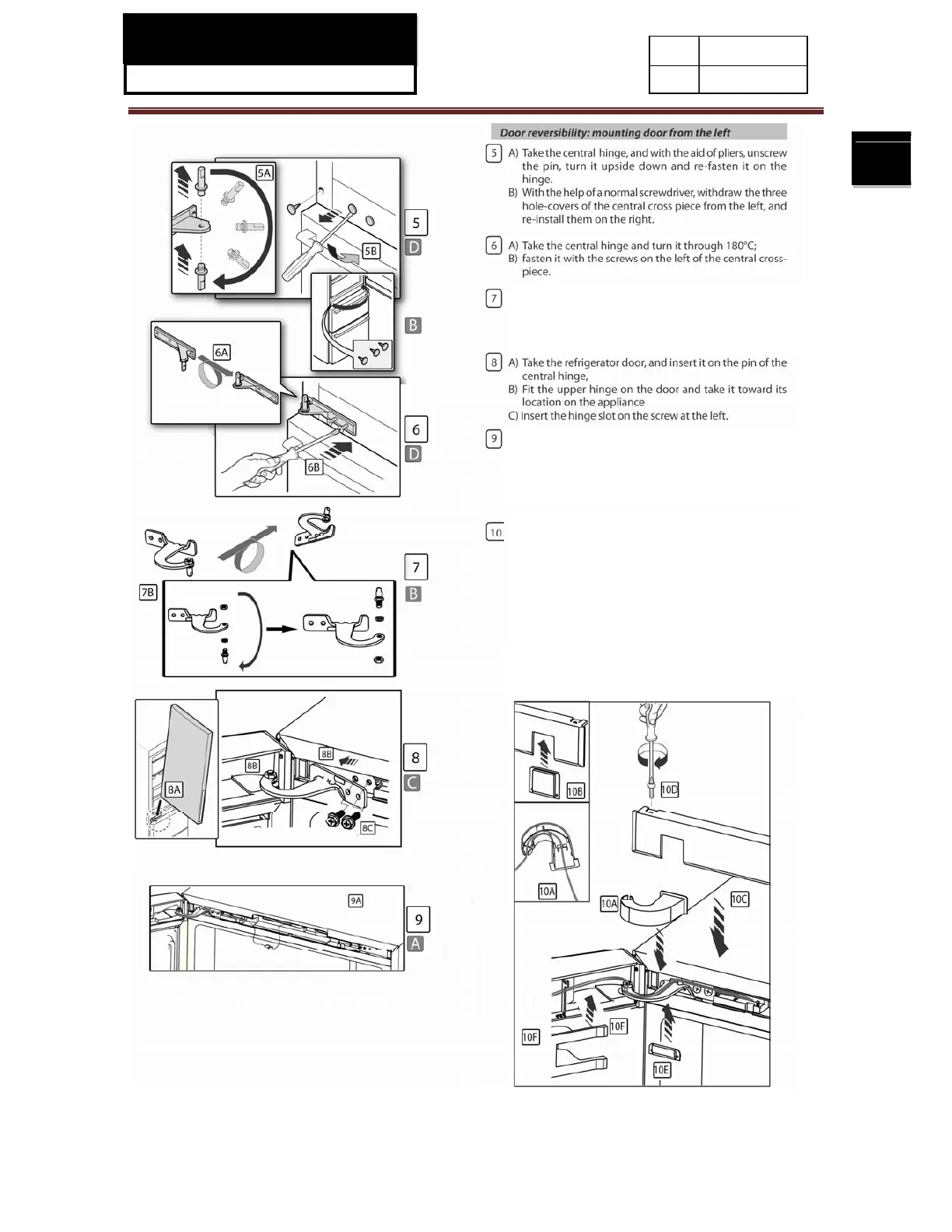

A) Remove the top hinge from the refrigerator door;
B) With the aid of pliers, unscrew and remove the
screws on the top of the hinge, then loosen and remove
the pin on the bottom of the hinge; then re-install the
A) transfer the display cable located in the slit above
the refrigerator door from left to right, always keeping
it inside the slit, and connect it to the electric cable
which is extending from the cabinet above the cabinet;
A) Click-fit the hinge cover, firstly to clip the electric
cable into the hinge cover, then clip it to the hinge;
B) install the small cover to the right side of the front
panel from bottom to top direction;
C) Click-fit the front panel from top to bottom
direction, applying pressure on several points to secure
the bottom clips being inserted into the slit of the
cross beam;
D) secure it with four screws;
E) fit the clips on the left sides(previously removed);
F) Click-fit the front panel onto the refrigerator door;
