3-1-2.Removing and replacing the right door of freezer compartment
(For C2FE636CFJRU /C2FE636CSJRU/C2FE636CWJRU/C2FE637CXJRU)
Directions on how to dismantle and install the middle and lower hinges

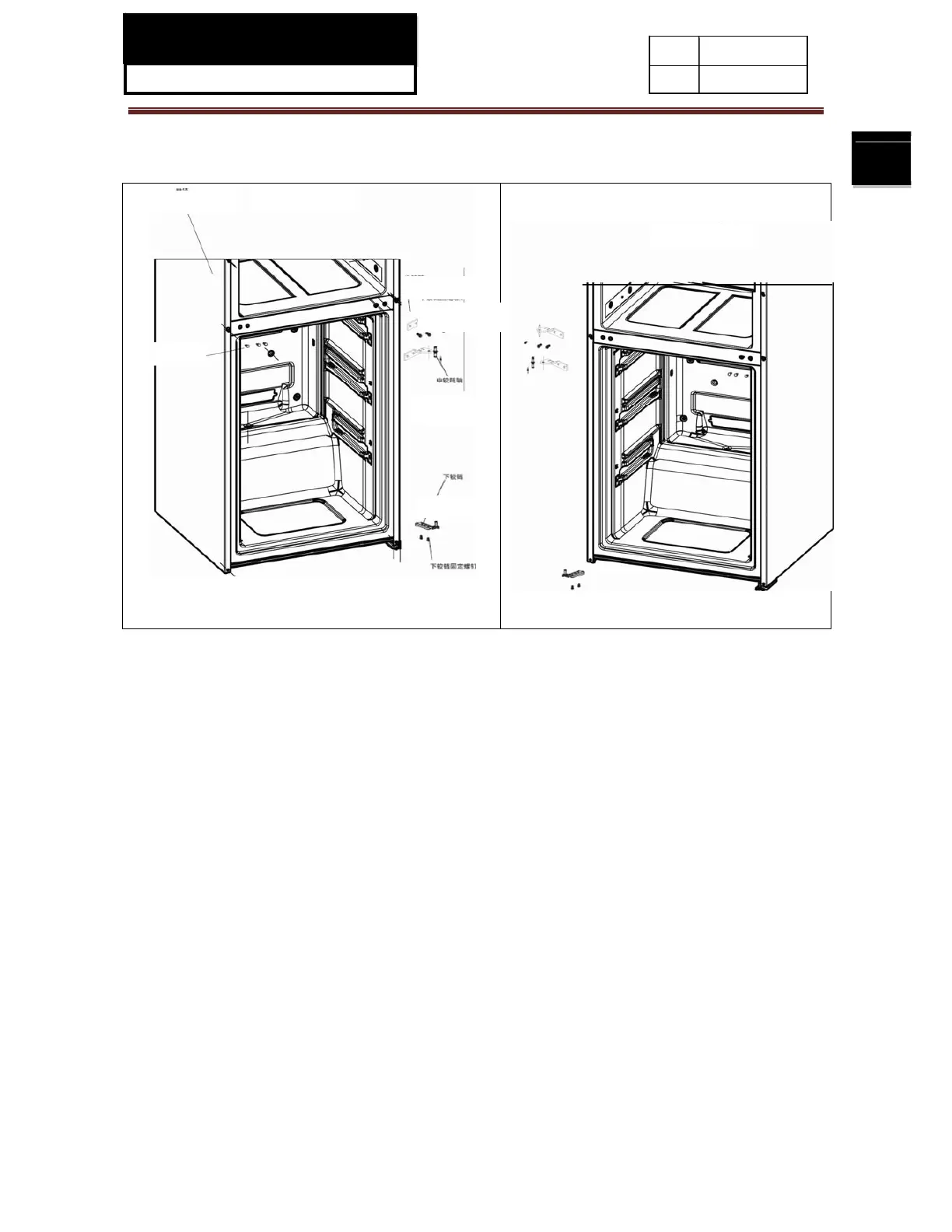

⑴ Detach the 3 screws affixed to the middle hinge and remove the hinge. Unscrew the hinge
axis and then screw it from the reversed direction.
⑵ Remove the upper and lower doors separately. Dismantle the stop blocks on the bottom of
the doors. Turn them by 180 degrees and refit them on the other side.
⑶ Tilt the refrigerator to the required angle. Detach the screws fixing the lower hinge and
remove the hinge.
⑷ Fix the lower hinge to the bottom of the other side of the cabinet. Then, mount the lower door
on the lower hinge.
⑸ Take out the 3 hole plugs on the other side of the cabinet.
Turn the middle hinge by 180 degrees and install it on the other side of the cabinet. Attach the 3
screws removed in step 1. Mount the 3 hole plugs into the holes where the hinge is seated
originally.
Note: For 3-door refrigerators, the operation concerning the lower hinge is not needed.
Middle hinge
Screws affixed to
the middle hin
