SERVICE MANUAL
Model: HB21FC45N*
10
Issue 2010-07-05
Rev. Ref1007S019V0
Chapter3 Disassembly

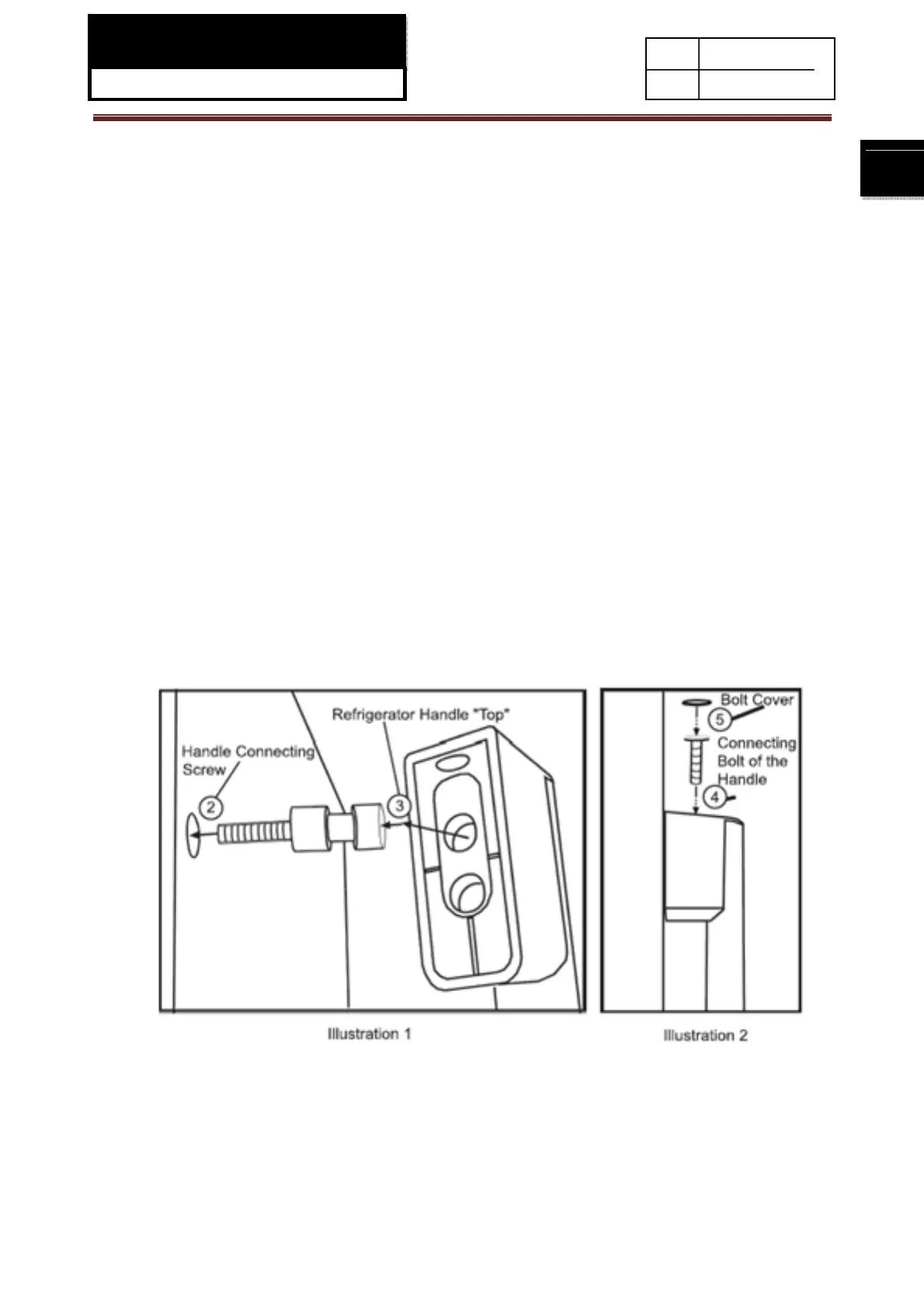

3-1. Door handle installation
3-1-1.Refrigeration door handle
1. Retrieve the handle clearly marked for the Refrigerator Door that needs attachment.
2. Insert the Handle Connecting Screws into the holes provided on the Refrigeration Door. Using a hand
held screwdriver tighten the Handle Connecting Screw until the screw threads disappear and the first
flat surface of the Handle Connecting Screw touches the Refrigerator Door surface (as shown in
illustration1- step2). Do not over tighten-damage to the door can occur.
3. Place the Refrigeration Door Handle onto the Handle Connecting Screws using the upper hole of the
“Top” Refrigeration Door Handle (as shown in illustration 1-step3); The Refrigeration Door Handle
should rest comfortably to the door on these Connecting Screws.
4. Insert the Connecting Bolt into the hole at the top of the Refrigerator Door Handle. Using the provided
Hex Driver and tighten until the handle is fixed firmly to the door. Repeat this process for the “Bottom”
of the Refrigeration Door Handle (as shown in illustration 2-step4).Be careful when tightening not to
scratch the door surface.
5. Place Bolt Covers into the holes on the handle at the top and bottom and push into place (as shown in
illustration2- step5).
6. To disassemble the Refrigeration Door Handle, follow these directions in reverse.
