11 If storage space needs to be increased
Users can remove parts of the appliance to achieve the purpose
of increasing the storage space of the appliance.

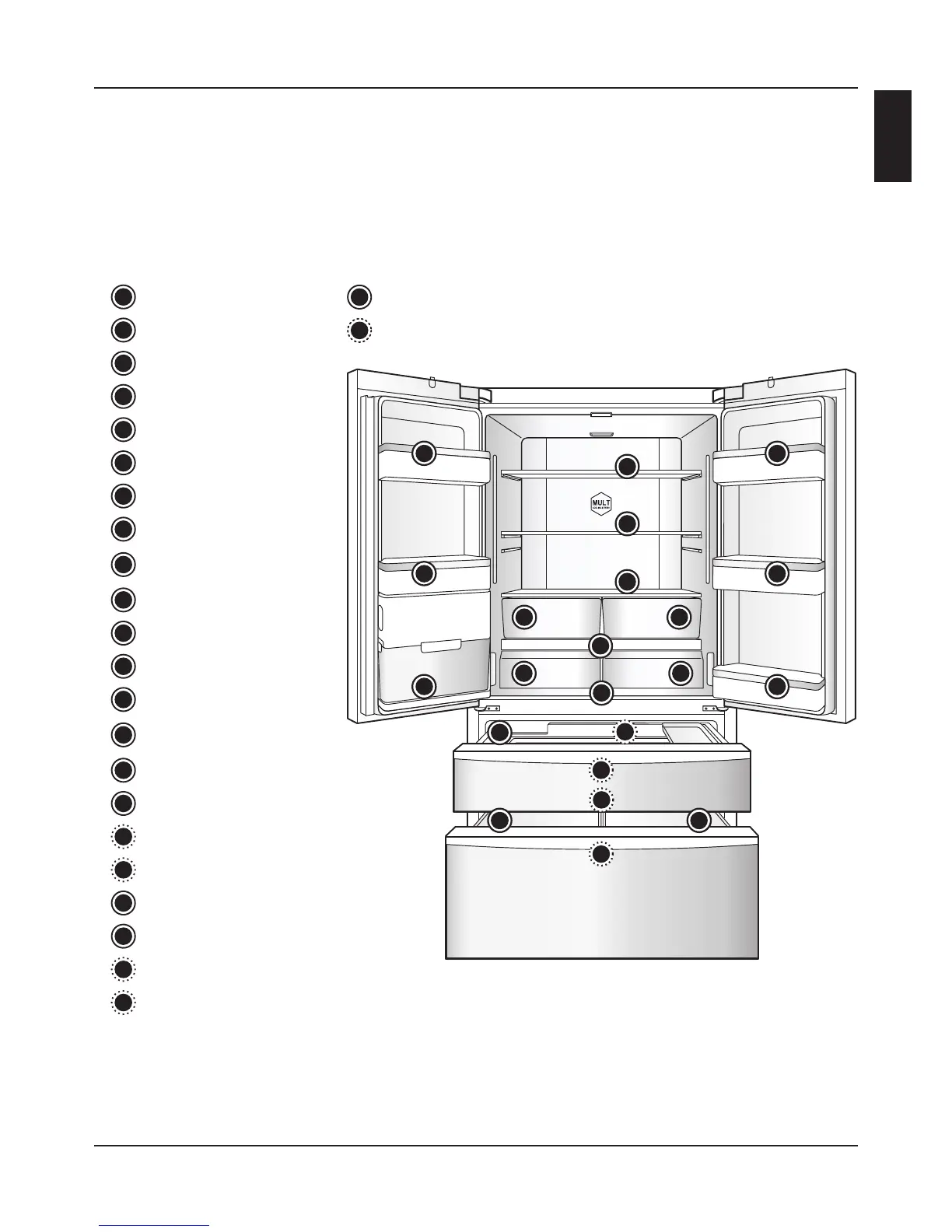

The following is a list of detachable parts. The detachable parts
areasshownintherightgure.
For detailed disassembly methods, please see "Disassembling
and cleaning the parts" on page 21.
Number Name of part
1
Bottle holder (upper left)
2
Bottle holder (middle left)
3
Water storage box
4
Bottle holder (upper right)
5
Bottle holder (middle right)
6
Bottle holder (lower right)
7
Shelf (upper)
8
Shelf (lower)
9
Fruit & Vege box cover
plate
10
Fruit & Vege box (left)
11
Fruit & Vege box (right)
12
MY ZONE (left)
13
MY ZONE (right)
14
Fruit & Vege compartment
tray
15
MY ZONE
16
Automatic icemaker
17
Small freezer drawer
18
Small freezer drawer tray
19
Pull-out box (left)
20
Pull-out box (right)
21
Pull-out tray
22
Gear connecting rod
Detachable part
Detachable part (concealed)
3
1
2
4
5
6
7
8
9
12 13
10 11
14
15
16
19 20
18
17
21
22
