Haier HD70-01 ME Service Manual

- 25 -
Se r vice Manual
Model No: HD80-01/HD70-01
Issue
Re v.

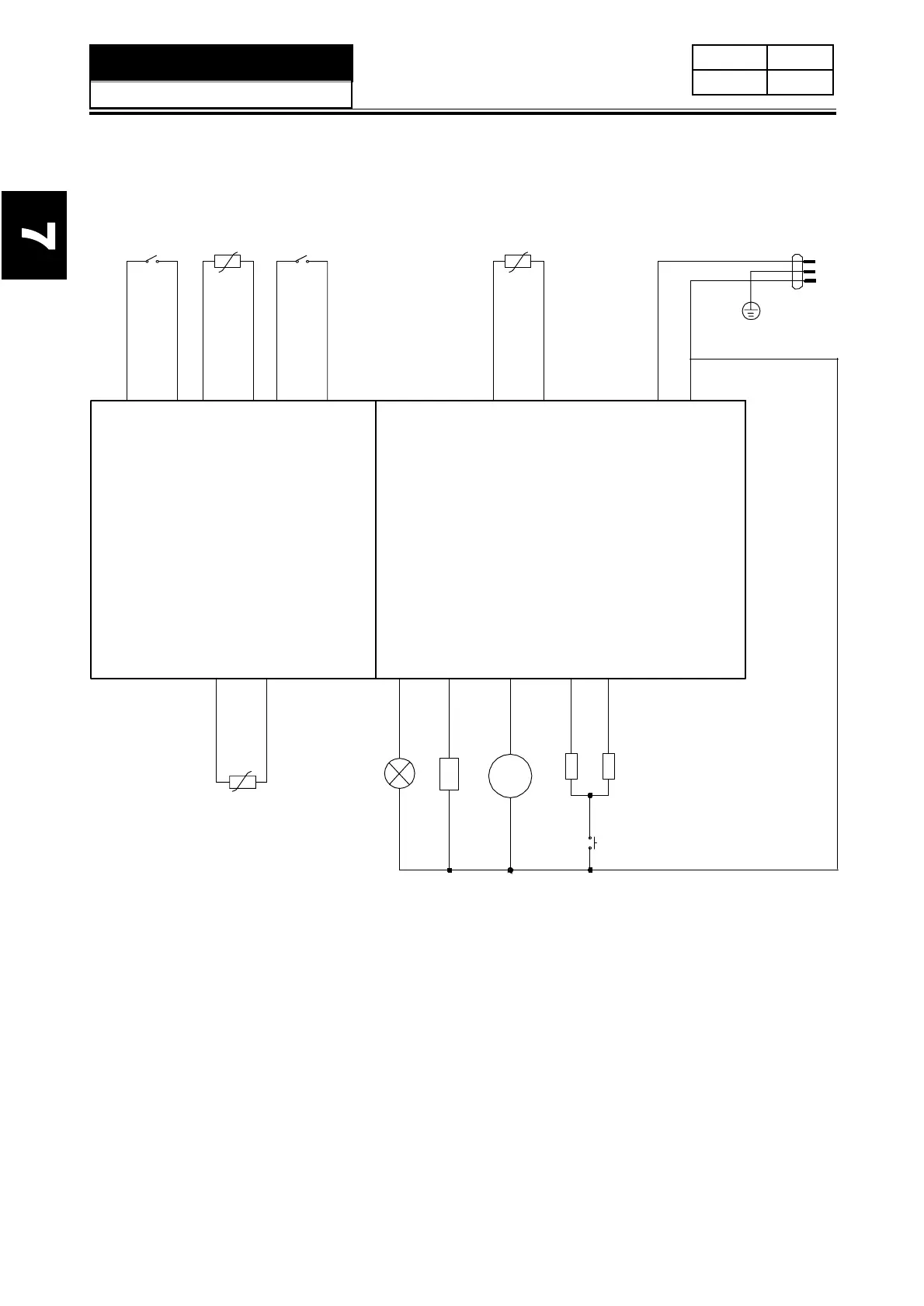

Chapter 7. Schematic Diagram
L
N
G
TG1
X2-1 X2-2
3-3 3-1
1-3 1-2 1-1
1-6 1-5 1-4
K1 NTC1 K2
D1 D2 NTC1 NTC2 W1 W2
H
H2 H1
Power board
Display board
2-1 2-2 X4-4 X4-3 X4-2
X3-1 X3-3
HT-NTC1
HT-NTC1
L1
L2
P1
P2
M1
M2
PS
M
R1 R2
T
L PS M
NTC2
R1: Heating1
R2: Heating2
L: Lamp
PCB1, PCB2:Printedcircuitboard
T1: Thermalcut-out
NTC1:Temperature sensor(near filter)
NTC2:Temperature sensor(near heater)
PS: Drainage pump
K1: Door switch
K2: Water levelswitch
H: Humiditysensor
M: Motor
