Haier HD70-01 ME Service Manual

- 5 -
Ser vice Manual
Model No: HD80-01/HD70-01
Issue
Rev .

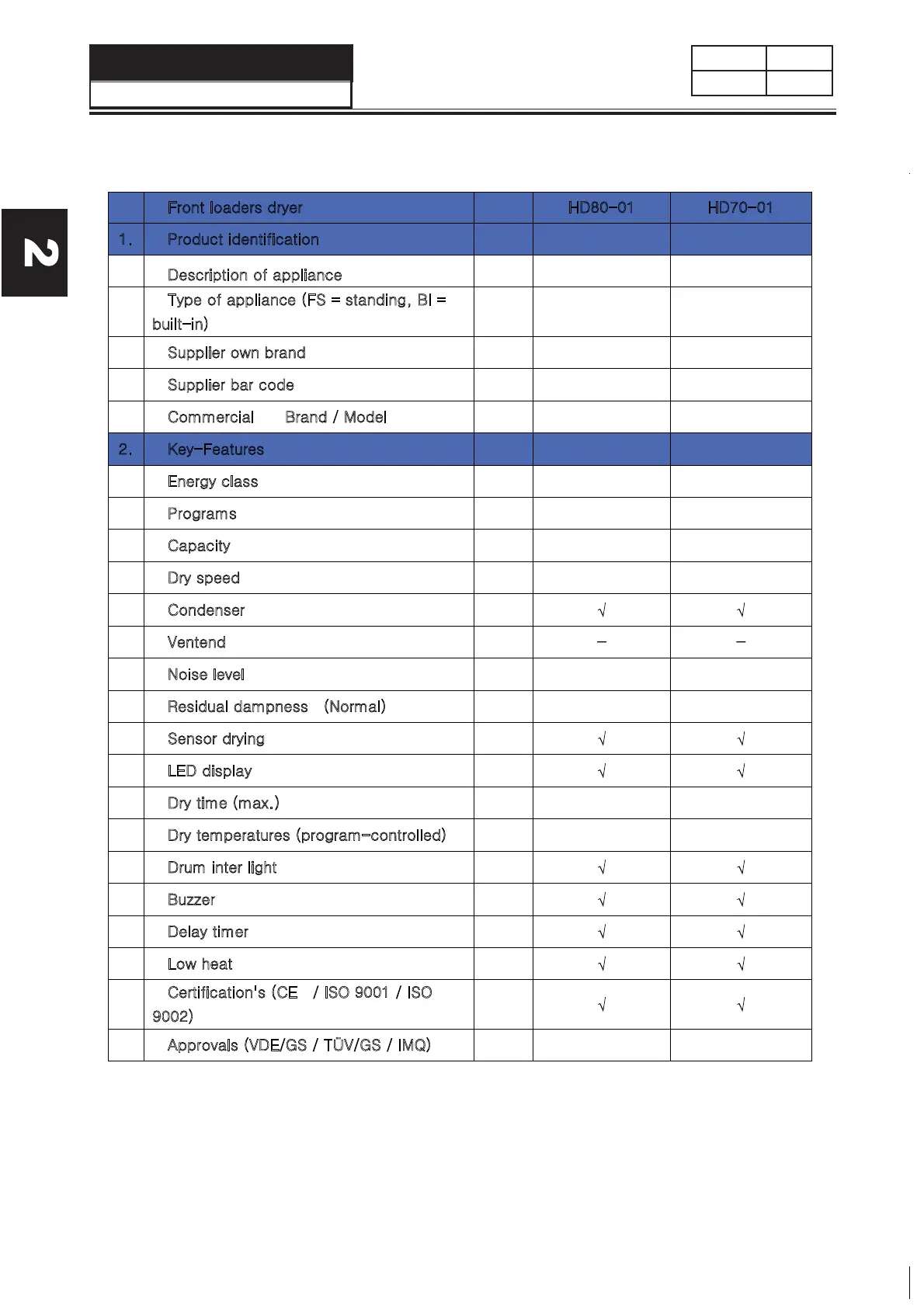

2-2. Specification
Front loaders dryer HD80- 01 HD70- 01
1. Product identification
Description of appliance Dr yer Dr yer
Type of appliance (FS = standing, BI =
built- in)
FS FS
Supplier own brand Haier Haier
Supplier bar code EA N (TBC) (TBC)
Commercial Brand / Model Haier Haier
2. Key- Features
Energy class B B
Programs n¸ 10 10
Capacity Kg 8 7
Dry speed rpm 45- 50 45- 50
Condenser
Ventend
Noise level dB (A) 68 68
Residual dampness (Normal) % ø 3% ø 3%
Sensor drying
LED display
Dry time (max.) mi n 150 130
Dry temperatures (program- controlled) øC 50 ~8 0 50 ~8 0
Drum inter light
Buzzer
Delay timer
Low heat
Certification's (CE / ISO 9001 / ISO
9002)
Approvals (VDE/GS / TøV/GS / IMQ) V DE/ GS V DE/ GS
