20

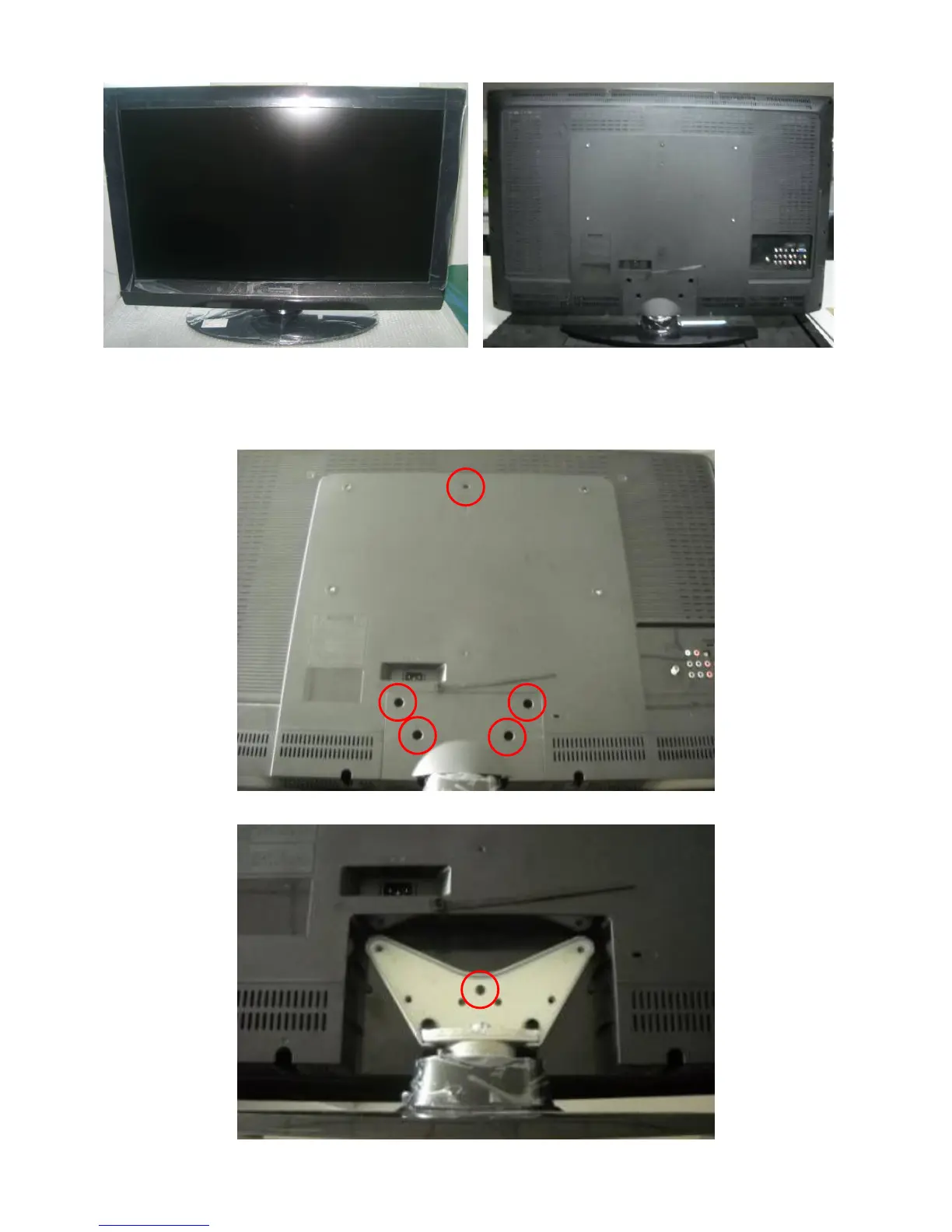

HL42XD2 Front and Rear view
1. Remove the NECK COVER and STAND ASS’Y.
a. Unscrew the 5 screws to remove NECK COVER as Fig 1a.
b. Unscrew the 1 screw to remove STAND ASS’Y as Fig 1b.
Fig 1a
Fig 1b
