21

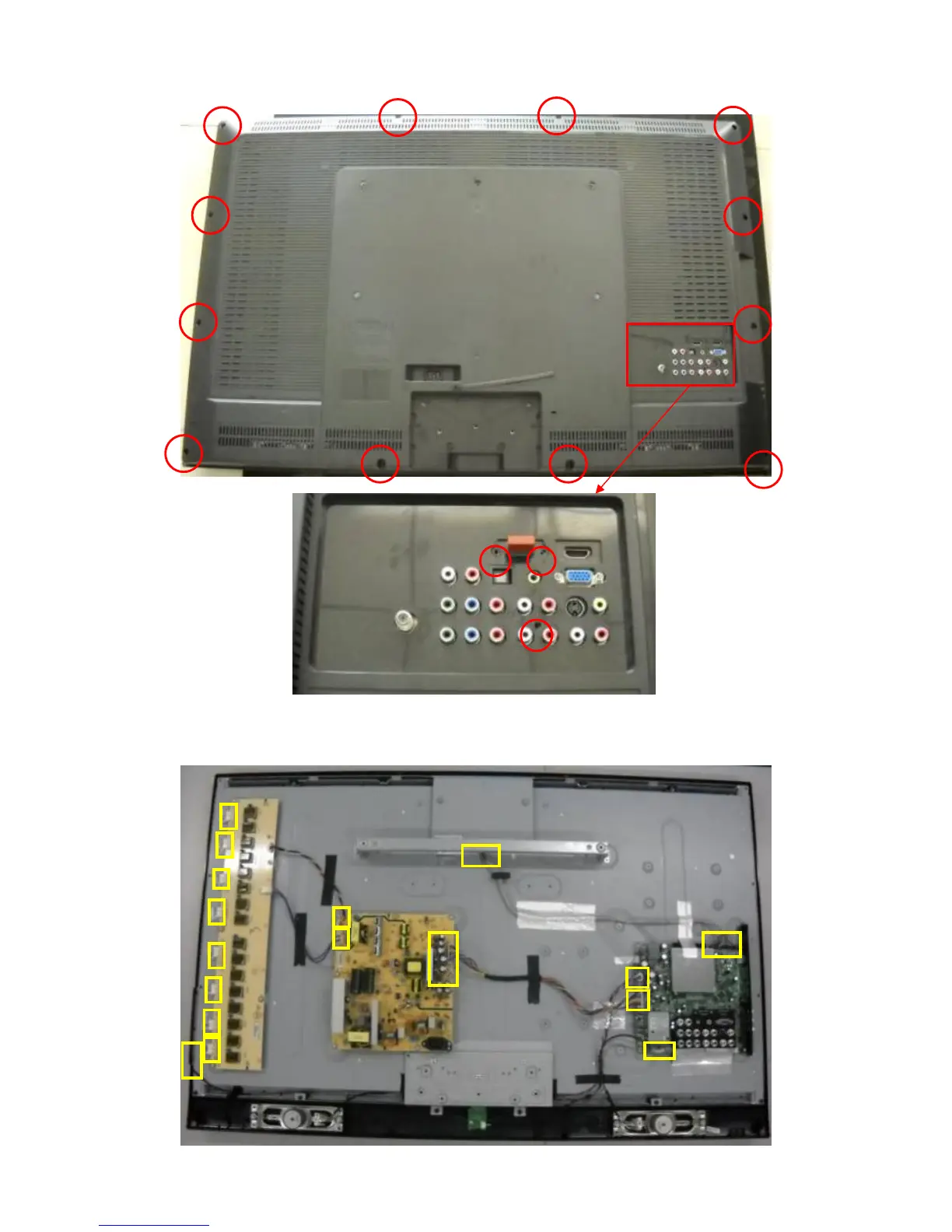

2. Remove the REAR COVER.
Unscrew the 12 screws for rear cover and 3 screws for HDMI commector as Fig 2.
\
Fig 2
3. Remove the all the detachable HARNESS.
Disconnect all the detachable HARNESS as Fig 3.
Fig 3
