22

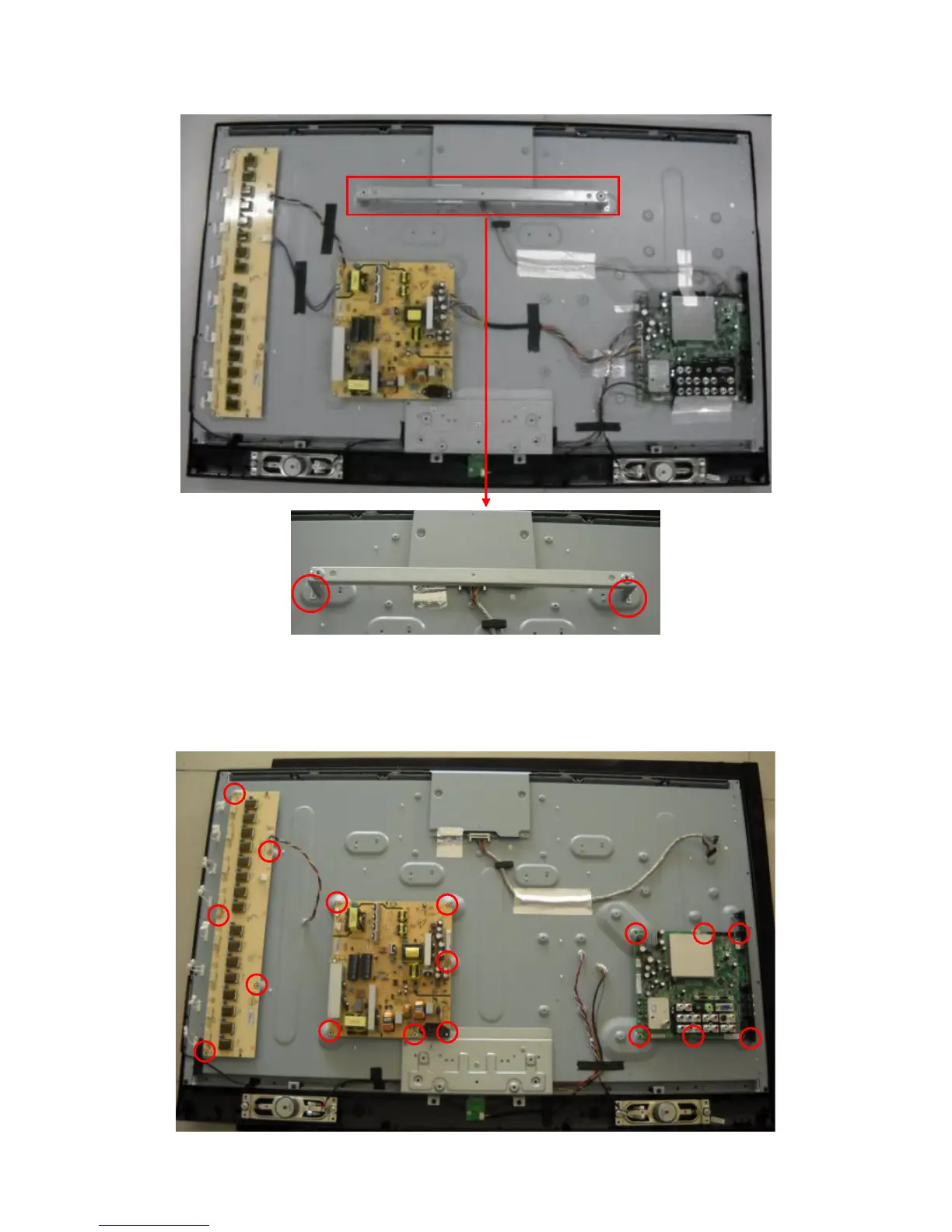

4. Remove the VESA BRACKET LCM.
Unscrew the 2 screws to remove VESA BRACKET LCM as Fig 4.
Fig 4
5. Remove the MAIN, POWER and INVERTER BOARD.
Unscrew the 17 screws as Fig 5.
Fig 5
