Haier HLC19R User Manual

11

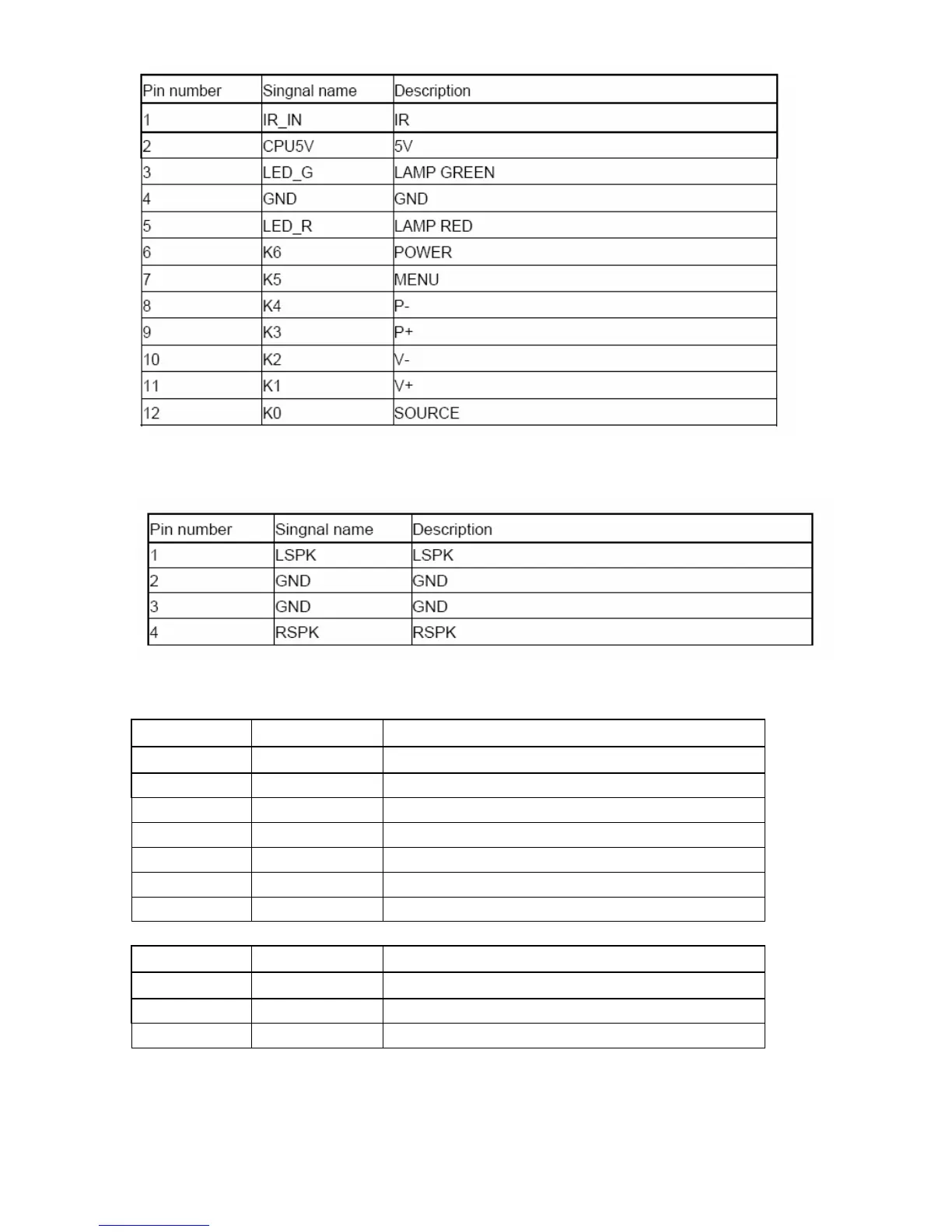

Speaker connector (CN1)
DVD VIDEO Connector: CN6
Pin number Signal name Description
1 GPIO GPIO
2 PB_IN PB1 IN
3 Y_IN Y1_IN
4 GND GND
5 PR_IN PR1 IN
6 GND GND
7 IR DVD IR
DVD AUDIO Connector: P1
Pin number Signal name Description
1 LI YPBPR1L_IN
2 RI YPBPR1R_IN
3 GND GND
Other connectors:
1, CN19 to Upgrade the program of MTK5380(U13) AND FLASH(U17)
