17

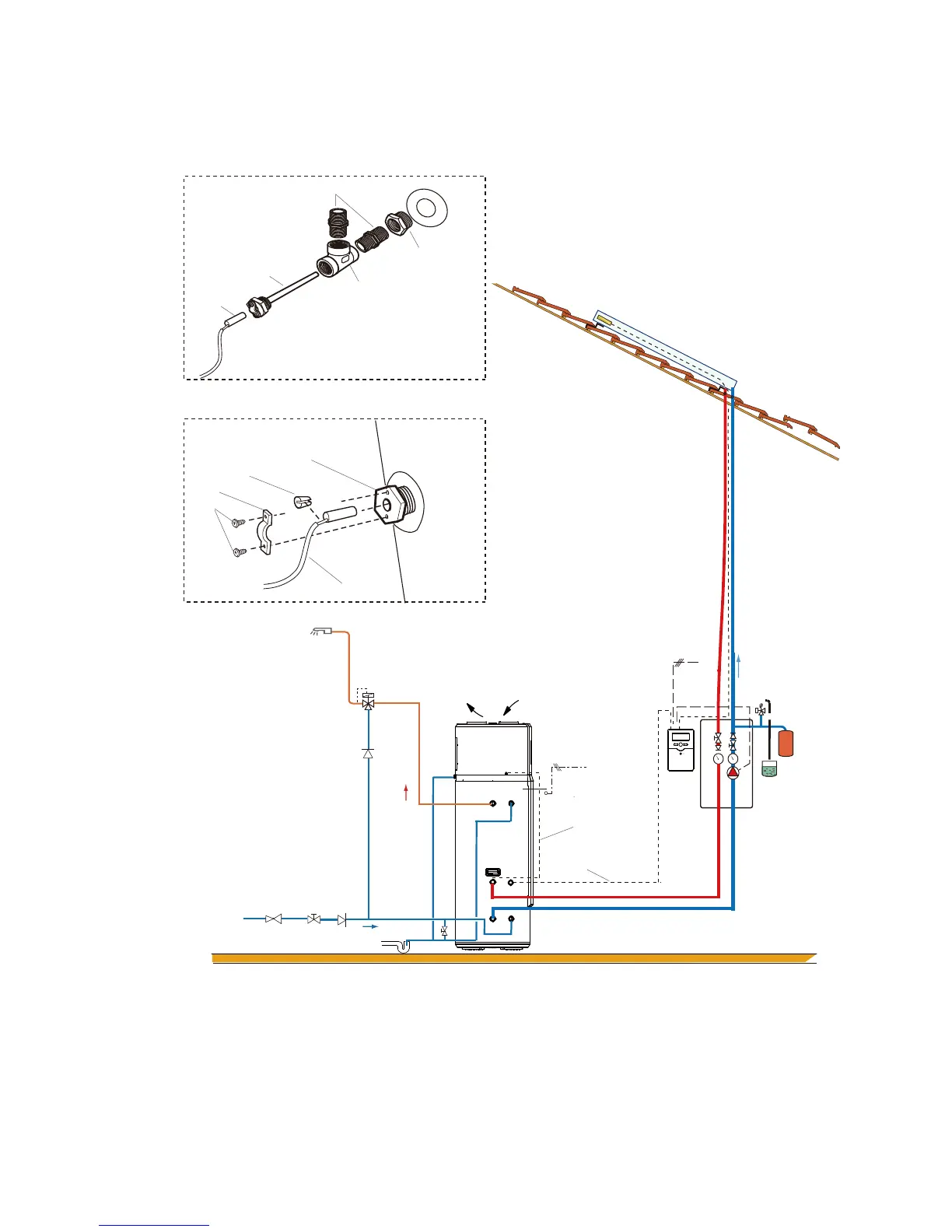

e. Connection to solar collectors (Version HP250CM2)
Thermostatic
valve
safety valve
Check valve
condensate
water
solar sensor
(heat pump)
Hot water
outlet
Cold water inlet
Stop
valve
Pressure
relief valve
Check
valve
230V
50Hz
solar sensor
(solar controller)
WARING:Plumber -Be Aware
Using solar energy,please make sure that the heat pump water tank temperature
does not exceed 85
℃.
230V
50Hz
1/2"nipple(not supplied)
3/4" to 1/2"
reducing bush
(not supplied)
T-piece
(not supplied)
sensor pocket
(not supplied)
sensor
Installation of sensor(heat pump):
18
Installation of sensor(solar controller):
sensor(not supplied)
sensor pocket(φ6mm)
sensor pocket plug
clamp
screw
heat pump
