18

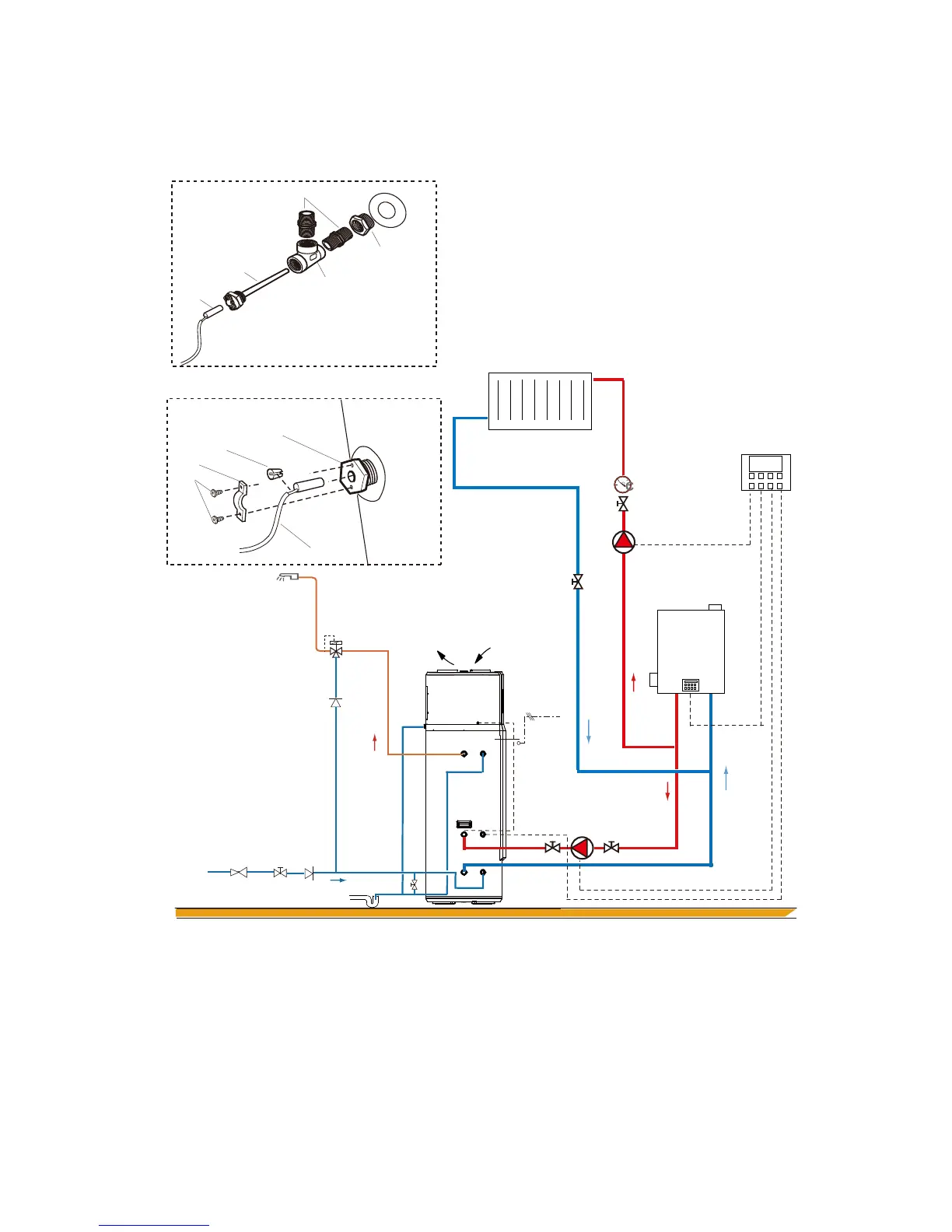

f. Connection to gas boiler (Version HP250CM2)
Thermostatic
valve
safety valve
Check valve
condensate
water
Hot water
outlet
Boiler
Cold water inlet
Stop
valve
Pressure
relief valve
Check
valve
230V
50Hz
WARING:Plumber -Be Aware
Using boiler auxiliary heating, please make sure that the heat pump water tank
temperature does not exceed 85
℃.
boiler sensor
(heat pump)
boiler sensor
(boiler controller)
1/2"nipple(not supplied)
3/4" to 1/2"
reducing bush
(not supplied)
T-piece
(not supplied)
sensor pocket
(not supplied)
sensor
Installation of sensor(heat pump):
Installation of sensor(boiler controller):
sensor(not supplied)
sensor pocket(φ6mm)
sensor pocket plug
clamp
screw
heat pump
