In the event that you need to remove the refrigerator
doors, please follow the door removal and installation
instructions below.
It is suggested, for your safety, to have two or more
people to assist you in completing the below task to
avoid injury, product damage or property loss.
Unscrew the 2 screws holding the toe moulding in position
and remove (Fig.4-3).
The Freezer Door
1. Undo the hinge cover screw and remove the
cover (Fig.4-4). Disconnect all wires except for the
grounding wire.
2. Undo the screws holding the upper hinge in position
and then remove the hinge (Fig.4-5).
3. Lift the freezer compartment door to remove it. Next,
lift the door enough to be able fully pull the water line
out from the bottom.
The Fridge Door
1. Undo the hinge cover screws and remove the
cover (Fig.4-6). Disconnect all wires except for the
grounding wire.
2. Undo the screws holding the upper hinge in position
and then remove the hinge (Fig.4-7).
3. Lift the refrigerator compartment door to remove it.
Retting the Door
Ret the doors by reversing the removal steps.

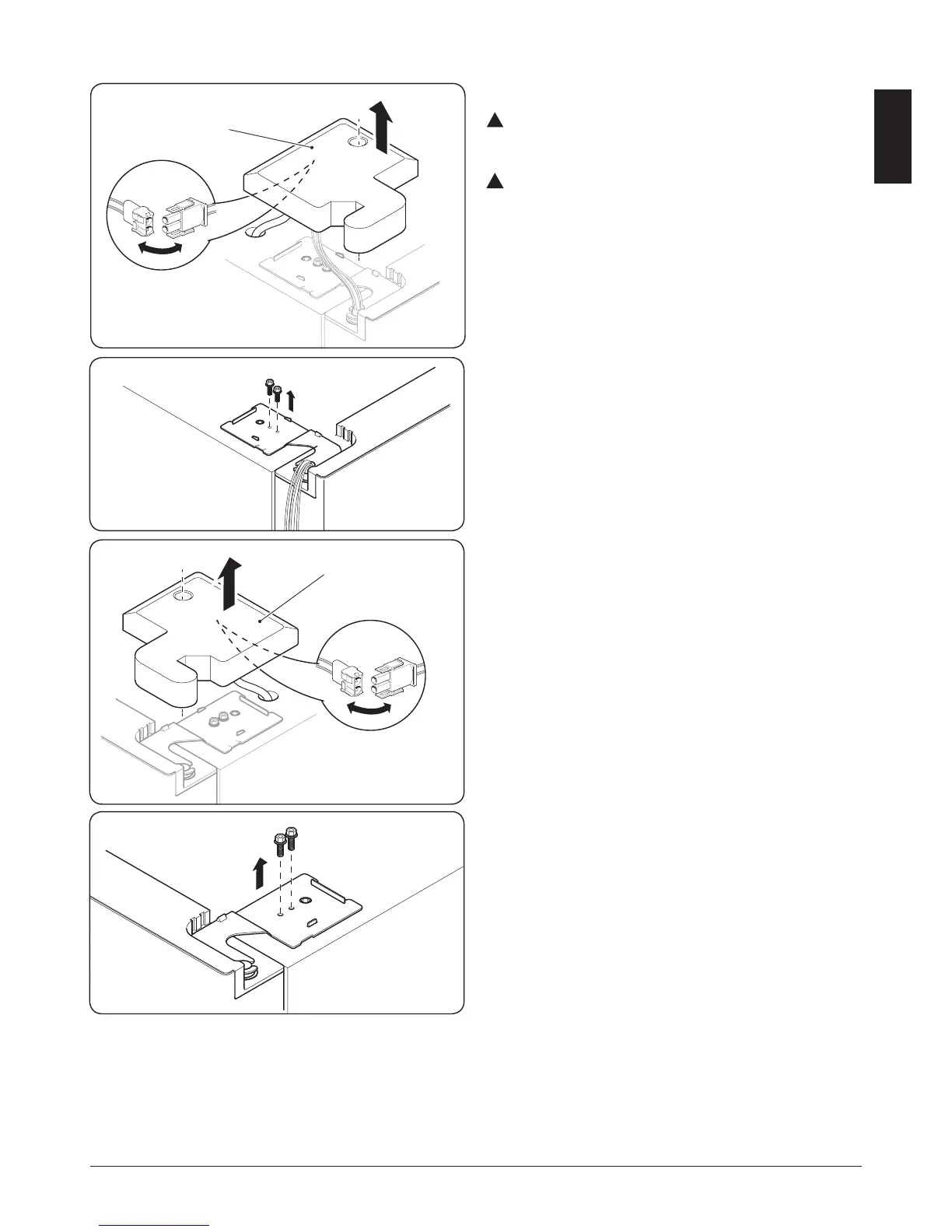

Fig.4-4
Fig.4-5
Fig.4-6
Fig.4-7
Hinge cover
Hinge cover
