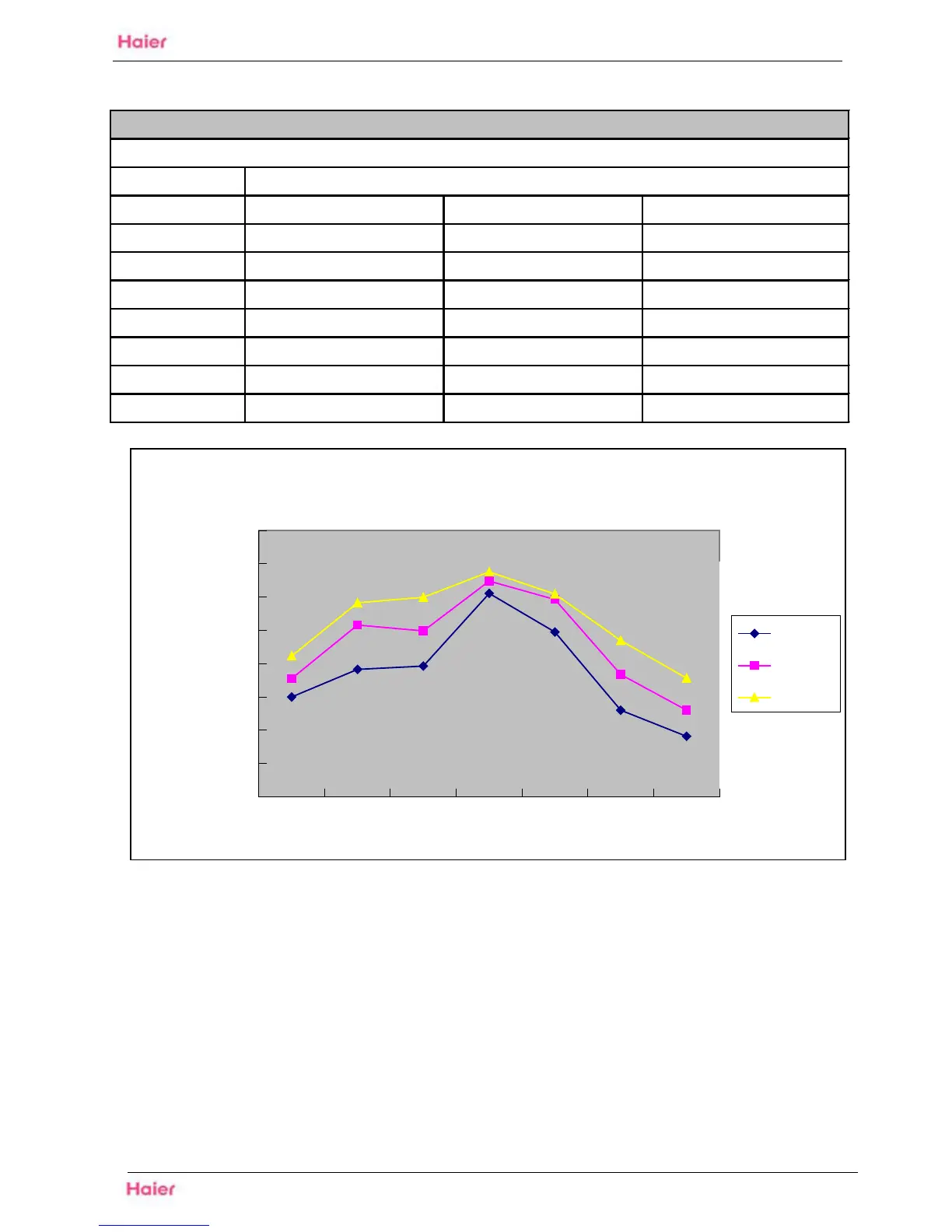

HSU-09(12)HA/HVA/RHA103/R2(DB) Capacity
37
Domestic air conditioner
outdoor temp.
DB/WB 15℃ 20℃ 25℃
-15℃
500 555 623
-5℃
583 716 783
5℃
593 698 799
7/6℃
811 848 876
15℃
695 793 809
20℃
460 567 669
25℃
382 460 557
indoor temp.(humidity 46%)
power consumption value-temp.talbe
HSU-09HVA103/R2(DB)
performance curves
heating capacity and indoor/outdoor temp.curves
200
300
400
500
600
700
800
900
1000
-15℃ -5℃ 5℃ 7/6℃ 15℃ 20℃ 25℃
heating capacity(W)
15°C
20°C
25°C
