INSTALLATION
PAGE 3
ENGLISH
2.1
Step 2.1
Using a stud sensor, locate and mark the stud positions in the
2.2
Step 2.2
Place the mounting plate on the wall in the desired location
taking into account the minimum clearances necessary for
proper operation.
the screw locations.
2.3
Step 2.3
Screw the mounting plate to the wall.
Below (Illustration 1).
2.4
Step 2.4
Below.
Drilling the hole through the wall for left rear or right rear
installation
2.5
Step 2.5A & 2.5B
drilled.
2.6
Step 2.6
Drill the piping hole using a hole saw of the correct diameter.
Angle the drill with a downward pitch to the outside wall so
giving the hole the proper angle for condensate drainage.
2.7
Step 2.7
inside wall.
2.8
Step 2.8A & 2.8B
Bundle the refrigerant piping, drain piping and wiring with
Step 2.1
Step 2.3
Step 2.2
Step 2.4
Step 2.5B
Step 2.7
Step 2.8B
Step 2.5A
Step 2.6
Step 2.8A
Illustration 1
Piping Exit Options
Rear left
Left
Rear
right
Right
Below

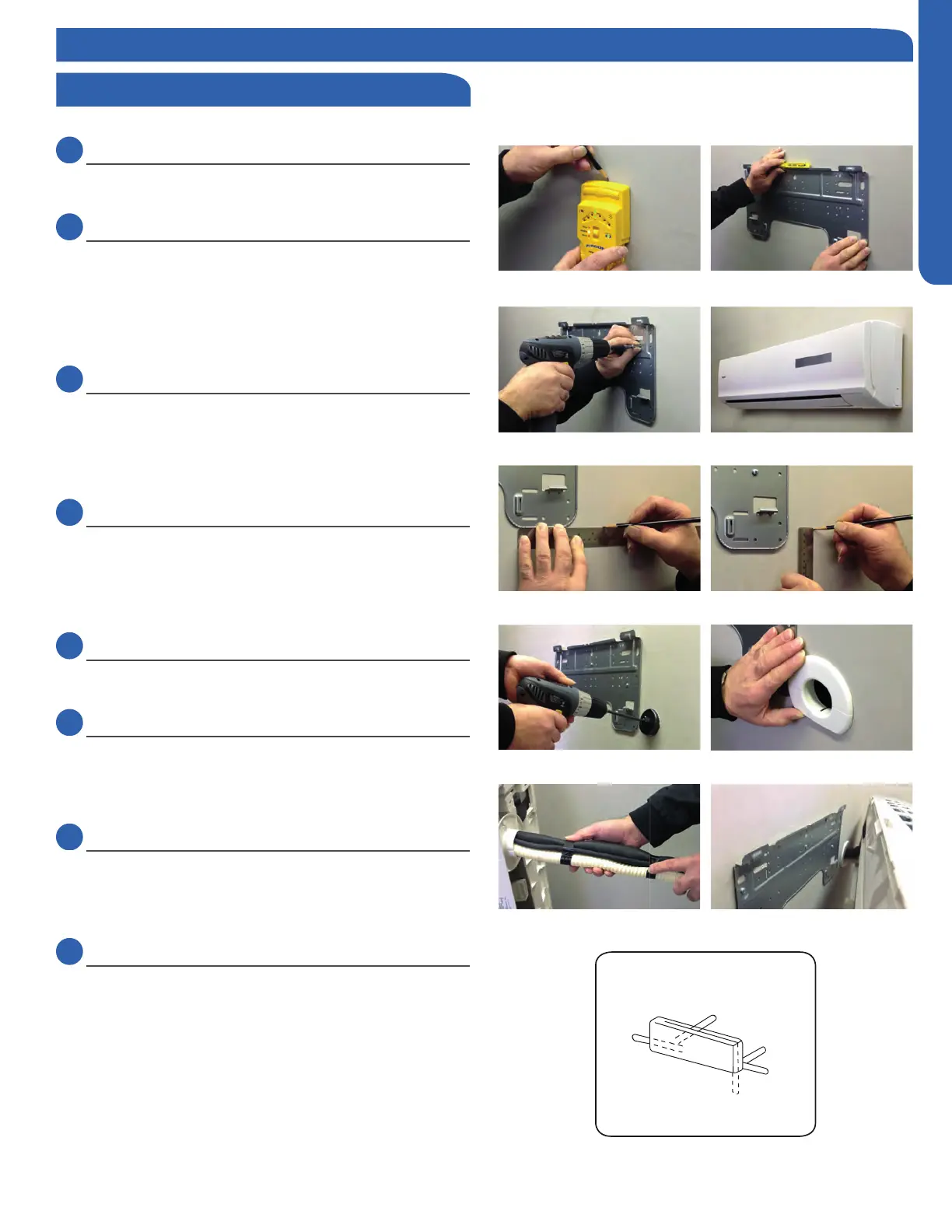

Step 2 - Installation of the Indoor Unit
Attaching the Mounting Plate to the Wall
To Next Page
