Haier HW60-1202D Service Manual

SERVICE MANUAL
Front Load Washing Machine

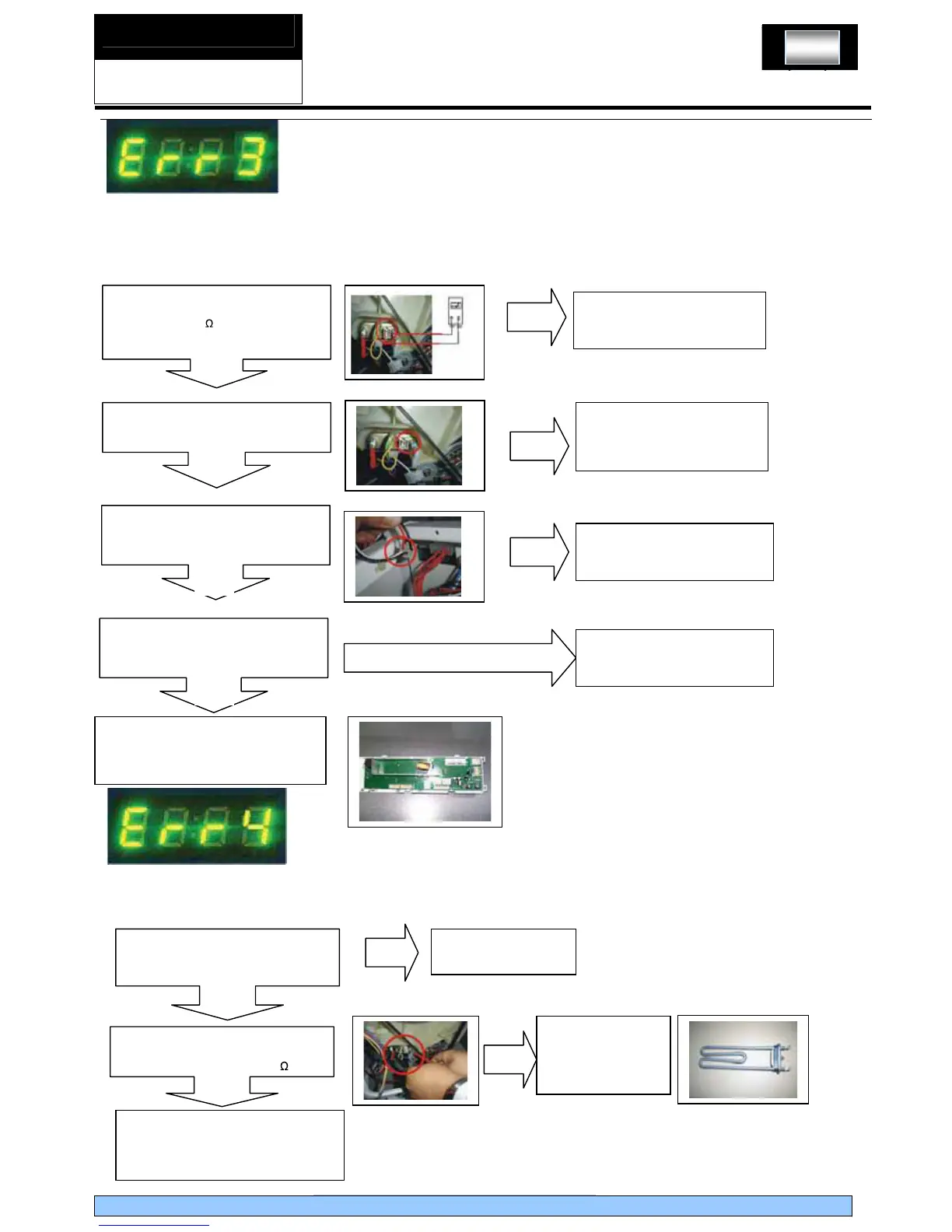

Error message:Temperature sensor is not properly connected or damaged (display at the end of a
program).
Troubleshooting:
Error message:The heater may be broken
Troubleshooting:
N
NTC exist open circuit. Replace it
Y
Cut off power, check the resistance of
two pins of heater element by
multimeter, is it between 32-35
?
Heater element must
be broken, please
replace it
Y
Check if NTC is connected properly
Cut off power and measure the resistance
of temperature sensor by
multimeter, is
it between 5-14k
?
Y
N
Connect NTC well
N
N
The control wire may be broken,
Otherwise the PCB must be broken;
Please replace the broken.
N
Replace PCB
Check the white wire and black wire of NTC,
are they connected well?
Connect all wires well
Disconnect the white wire and black wire
from PCB, and measure if the resistance
between white wire and black wire of PCB, is
it infinite?
Y
N
Y
Replace wire
Check if overload laundry. Reduce the laundry
Y
HW70-1202D HW60-1202D
HW60-1002D HW50-1202D
２５

Haier HW60-1202D Specifications

General

Door hinge	Left
Drum volume	39 L
Control type	Buttons, Rotary
Display type	LED
Loading type	Front-load
Product color	White
Built-in display	Yes
Door opening angle	180 °
Appliance placement	Freestanding
Half-load	-
Drum capacity	6 kg
Cycle time (max)	168 min
Delay start (max)	24 h
Residual moisture	64 %
Spin-drying class	B
Maximum spin speed	1200 RPM
Minimum spin speed	400 RPM
Noise level (spin)	72 dB
Noise level (wash)	56 dB
Number of washing programs	11
Washing class	A
Annual water consumption washing	8483 L
Annual energy consumption washing	182 kWh
Current	10 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	2000 W
Water consumption per cycle	- L
Energy consumption washing per cycle	0.895 kWh
Package weight	67000 g

Weight and Dimensions

Depth	520 mm
Width	595 mm
Height	850 mm
Weight	65000 g
Door diameter	320 mm
