Haier HW60-1202D Service Manual

SERVICE MANUAL
Front Load Washing Machine

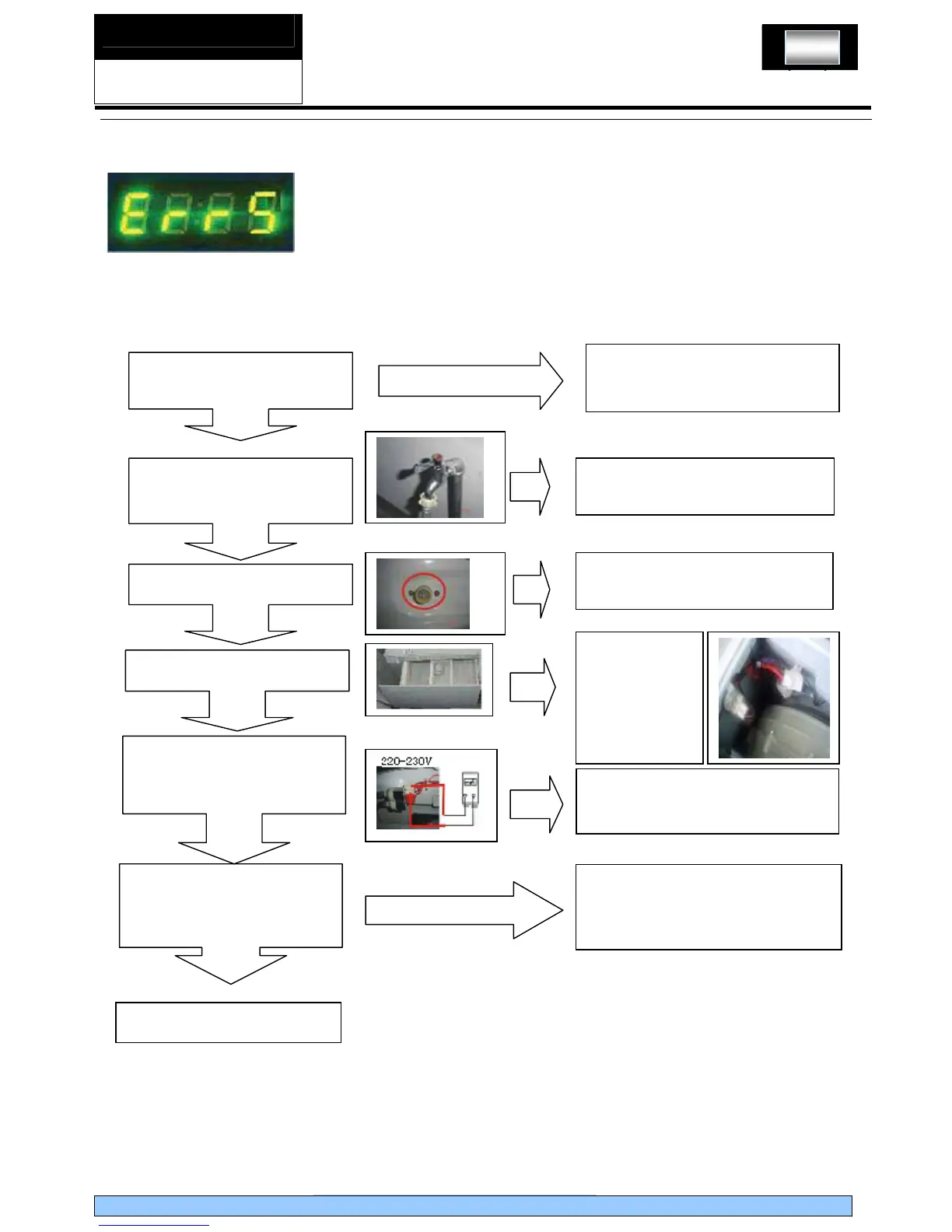

Error message: The required water level is not reached within 8 min,
Troubleshooting:
N
Check if inlet valve is jammed
Clean inlet valve
N
Draw out the dispenser and check if
water is entering
Observe if the
height of drain pipe
not reach 80 cm. If
water level pressure
switch and the hose
is leaking gas
N
Turn on power, and set pre-wash
mode, then start. Check the import
voltage of electromagnetic valve by
multimeter is it between AC
220-240V?
Electromagnetic valve must be broken, please
replace it.
N
Check if tap is closed or water
pressure is too low (usual
between0.2 -1 MPa)
Open the tap or wait for normal water
pressure to use
The wire connected PCB and inlet valve is not
properly. Please reconnect it or replace it.
Y
Y
Y
Y
Y
Check if water is leaking from washer
bottom. Inlet pipe. drain pipe or
other pipe connection
Y
Replace PCB
Check if export voltage from PCB to
electromagnetic valve, is it between
AC 220-240V?
N
N
Connect it well.
HW70-1202D HW60-1202D
HW60-1002D HW50-1202D
26

Haier HW60-1202D Specifications

General

Door hinge	Left
Drum volume	39 L
Control type	Buttons, Rotary
Display type	LED
Loading type	Front-load
Product color	White
Built-in display	Yes
Door opening angle	180 °
Appliance placement	Freestanding
Half-load	-
Drum capacity	6 kg
Cycle time (max)	168 min
Delay start (max)	24 h
Residual moisture	64 %
Spin-drying class	B
Maximum spin speed	1200 RPM
Minimum spin speed	400 RPM
Noise level (spin)	72 dB
Noise level (wash)	56 dB
Number of washing programs	11
Washing class	A
Annual water consumption washing	8483 L
Annual energy consumption washing	182 kWh
Current	10 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	2000 W
Water consumption per cycle	- L
Energy consumption washing per cycle	0.895 kWh
Package weight	67000 g

Weight and Dimensions

Depth	520 mm
Width	595 mm
Height	850 mm
Weight	65000 g
Door diameter	320 mm
