Haier HW60-1202D Service Manual

SERVICE MANUAL
Front Load Washing Machine

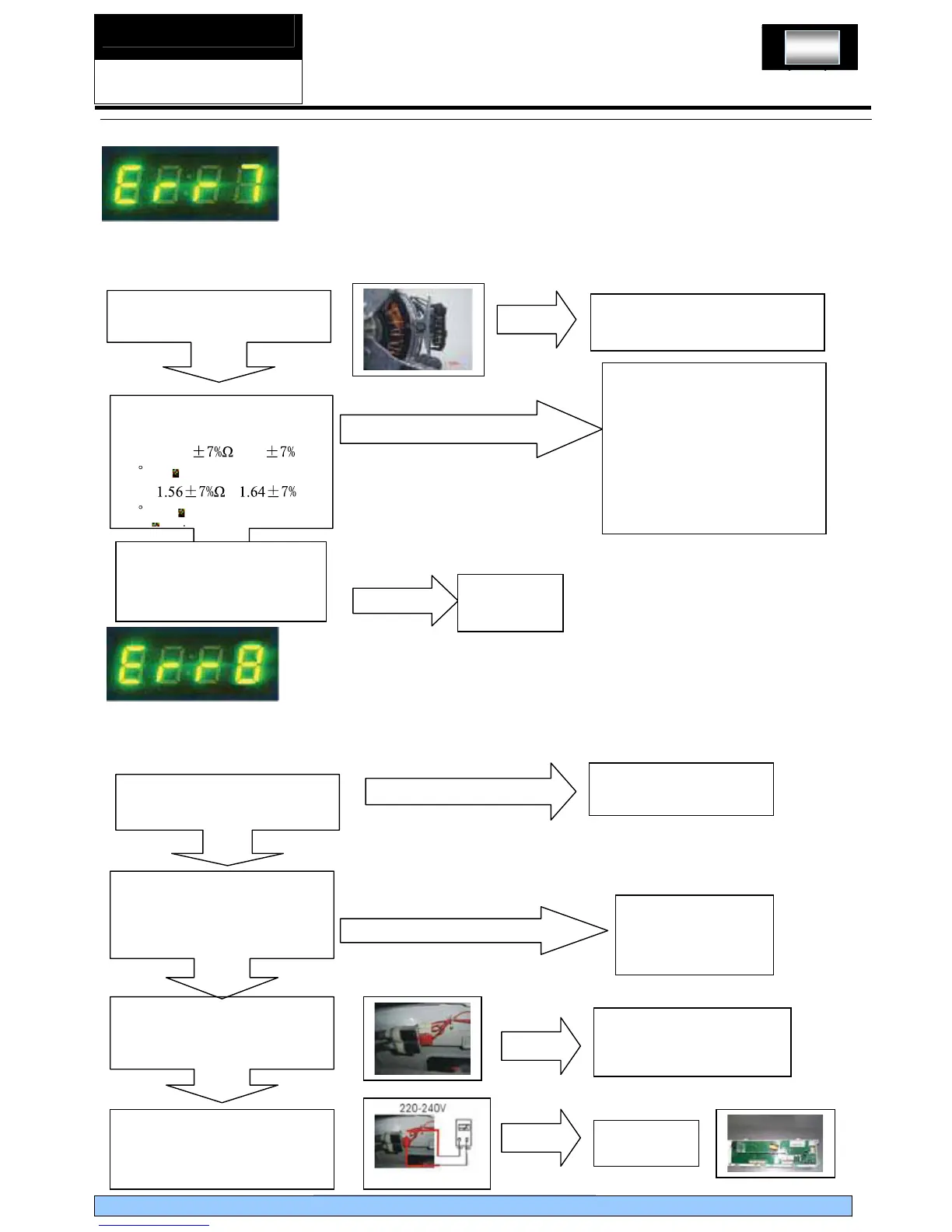

Error message. Motor overheat protection or is damaged.
Troubleshooting:
Error message. Water level exceeds protection value.
Troubleshooting:
Y
Cut off power and check if motor wires
are connected well
Reconnect well
Y
Measure if the resistance of motor
binding by multimeter, is it as
followed?
5 -10
[0.755 /1.76 (at
20
C)]
;
8 -9[ / (at
20
C)]
;
;
N
Check if water switch hose and air collector
are jammed
Clean water switch hose and air
collector
N
Pull out water switch inserts and turn on
power, then set wash mode. while water
is entering at the position of 3/4 glass
window, check the resistance between 11
and 16, is it 0 ? Check the resistance
between 11and 14 ,is it infinite?
Replace water pressure switch
N
N
Y
Y
Without starting but electrifying, measure
the import voltage of inlet valve, is it
between AC 220-240V?
Replace PCB
Y
Y
Put the motor in normal temperature
about ten minutes, and then test
again. If the resistance is natural, it
is caused by overheated protection.
Then check and deal with
overload, abnormal voltage. If not,
please replace motor
N
Without power ,connect inlet pipe to inlet
valve, then open the tap and observe if
water is entering in dispenser
Y
Replace inlet valve
Repair wires
Pull out the wire connection of motor
and driving computer board. Then
check if circuit is open by multimeter
HW70-1202D HW60-1202D
HW60-1002D HW50-1202D
２７

Haier HW60-1202D Specifications

General

Door hinge	Left
Drum volume	39 L
Control type	Buttons, Rotary
Display type	LED
Loading type	Front-load
Product color	White
Built-in display	Yes
Door opening angle	180 °
Appliance placement	Freestanding
Half-load	-
Drum capacity	6 kg
Cycle time (max)	168 min
Delay start (max)	24 h
Residual moisture	64 %
Spin-drying class	B
Maximum spin speed	1200 RPM
Minimum spin speed	400 RPM
Noise level (spin)	72 dB
Noise level (wash)	56 dB
Number of washing programs	11
Washing class	A
Annual water consumption washing	8483 L
Annual energy consumption washing	182 kWh
Current	10 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	2000 W
Water consumption per cycle	- L
Energy consumption washing per cycle	0.895 kWh
Package weight	67000 g

Weight and Dimensions

Depth	520 mm
Width	595 mm
Height	850 mm
Weight	65000 g
Door diameter	320 mm
