EN
11-Installation
31
Following connections are possible:
11.6.1 Drain hose to sink
▶ Hang the drain hose with the U-support over the
edge of a sink with adequate size (Fig. 11-9).
▶ Protect the U-support suffi ciently against slipping.
11.6.2 Drain hose to waste water connection
▶ The internal diameter of the stand pipe with vent-
hole must be minimum 40 mm.
▶ Put the drain hose for approx. 80 -100 mm in the
wastewater pipe.
▶ Attach the U-support and secure it suffi ciently
(Fig. 11-10).
11.6.3 Drain hose to sink connection
CAUTION!
▶ The drain hose should not be submerged in water and should be securely fixed and leak-
free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80
cm, the washing machine will continuously drain while being filled (self-siphoning).
▶ Drain hose is not to be extended. If necessary contact after sales service.
▶ The junction must lie above the siphon.
▶ A spigot connection is usually closed by a pad (A).
That must be removed to prevent any disfunc-
tion (Fig. 11-11).
▶ Secure the drain hose with a clamp.
11-9
11-10
11-11

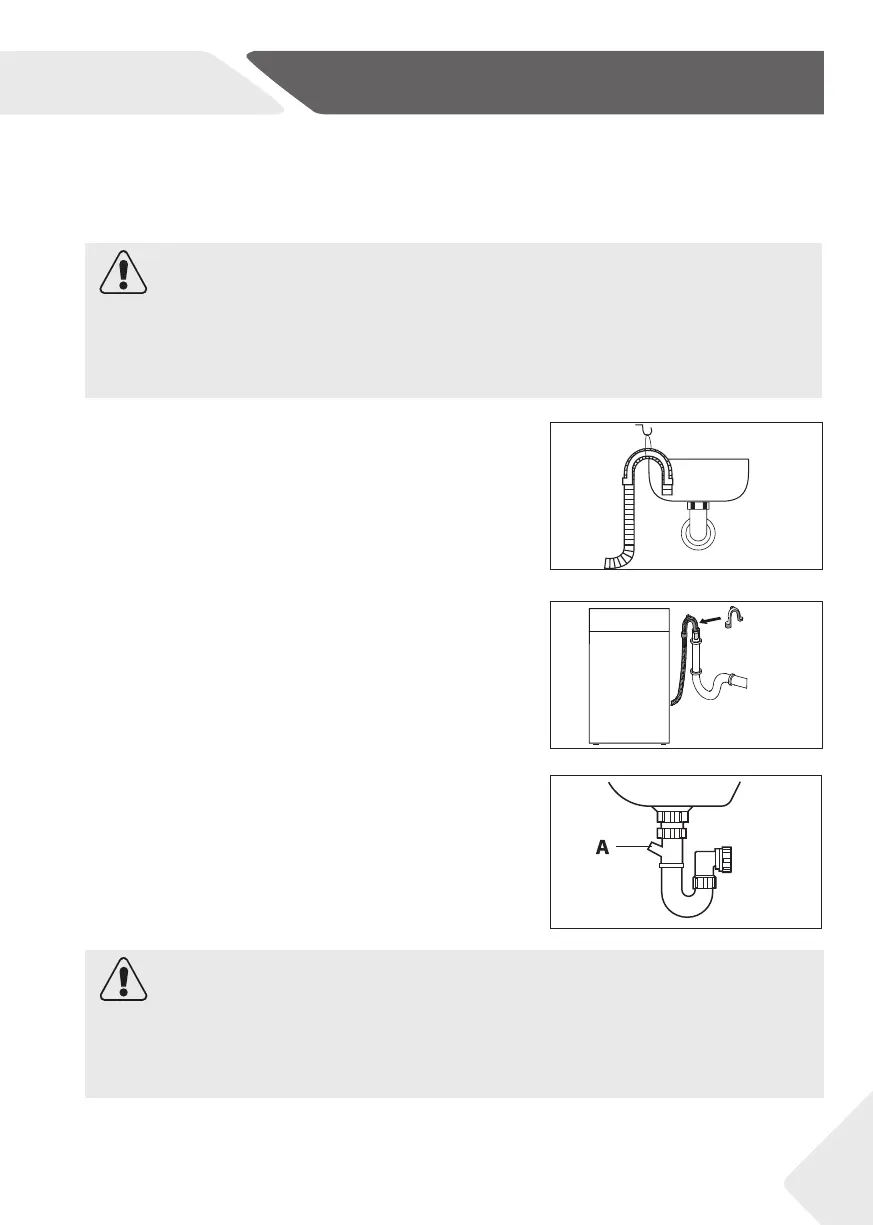

11.6 Drain Water Connection
Fix the water drain hose properly to the piping. The hose has to reach at one point a height
between 80 and 100 cm above the appliance bottom line! If possible keep always drain
hose fi xed to the clip at the appliance back.
WARNING!
▶ Use only the supplied hose set for the connection.
▶ Never reuse old hose sets!
▶ Only connect to cold water supply.
▶ Before connection, check whether the water is clean and clear.
