11-Installation
NZ AU

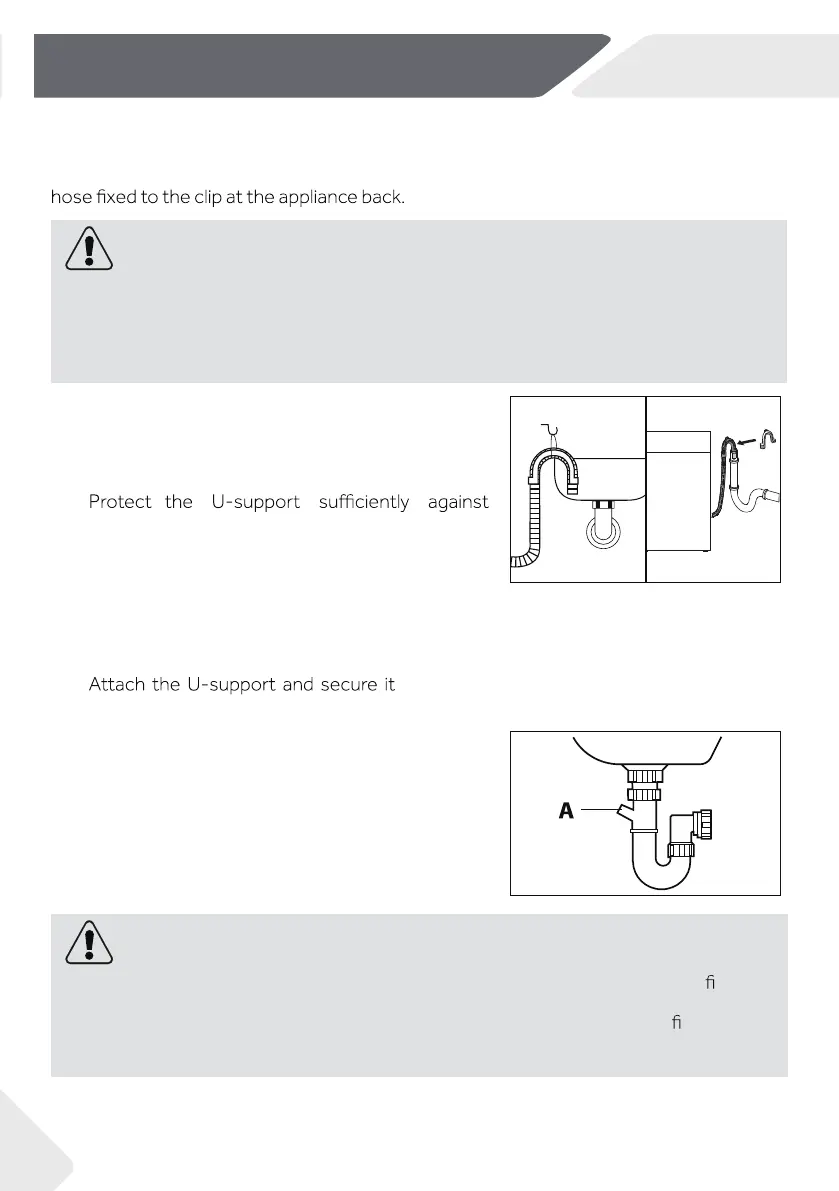

Following connections are possible:
11.6.1 Drain hose to sink
▶ Hang the drain hose with the U-support over the
edge of a sink with adequate size (Fig. 10-8).
▶
slipping.
11.6.2 Drain hose to waste water connection
▶ The internal diameter of the stand pipe with
vent-hole must be minimum 40 mm.
▶ eht ni mm 001-08 rof esoh niard eht tuP
wastewater pipe.
▶
(Fig. 10-9).
CAUTION!
▶ The drain hose should not be submerged in water and should be securely xed and
leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less
than 80 cm, the washing machine will continuously drain while being lled (self-si-
phoning).
▶ Drain hose is not to be extended. If necessary contact after sales service.
11.6.3 Drain hose to sink connection
▶ The junction must lie above the siphon.
▶ A spigot connection is usually closed by a pad (A).
That must be removed to prevent any
disfunction (Fig. 10-10).
▶ Secure the drain hose with a clamp.
11.6 Drain Water Connection
Fix the water drain hose properly to the piping. The hose has to reach at one point a height
between 80 and 100 cm above the appliance bottom line! If possible keep always drain
WARNING!
▶ Use only the supplied hose set for the connection.
▶ Never reuse old hose sets!
▶ Only connect to cold water supply.
▶ Before connection, check whether the water is clean and clear.
11-8 11-9
11-10
