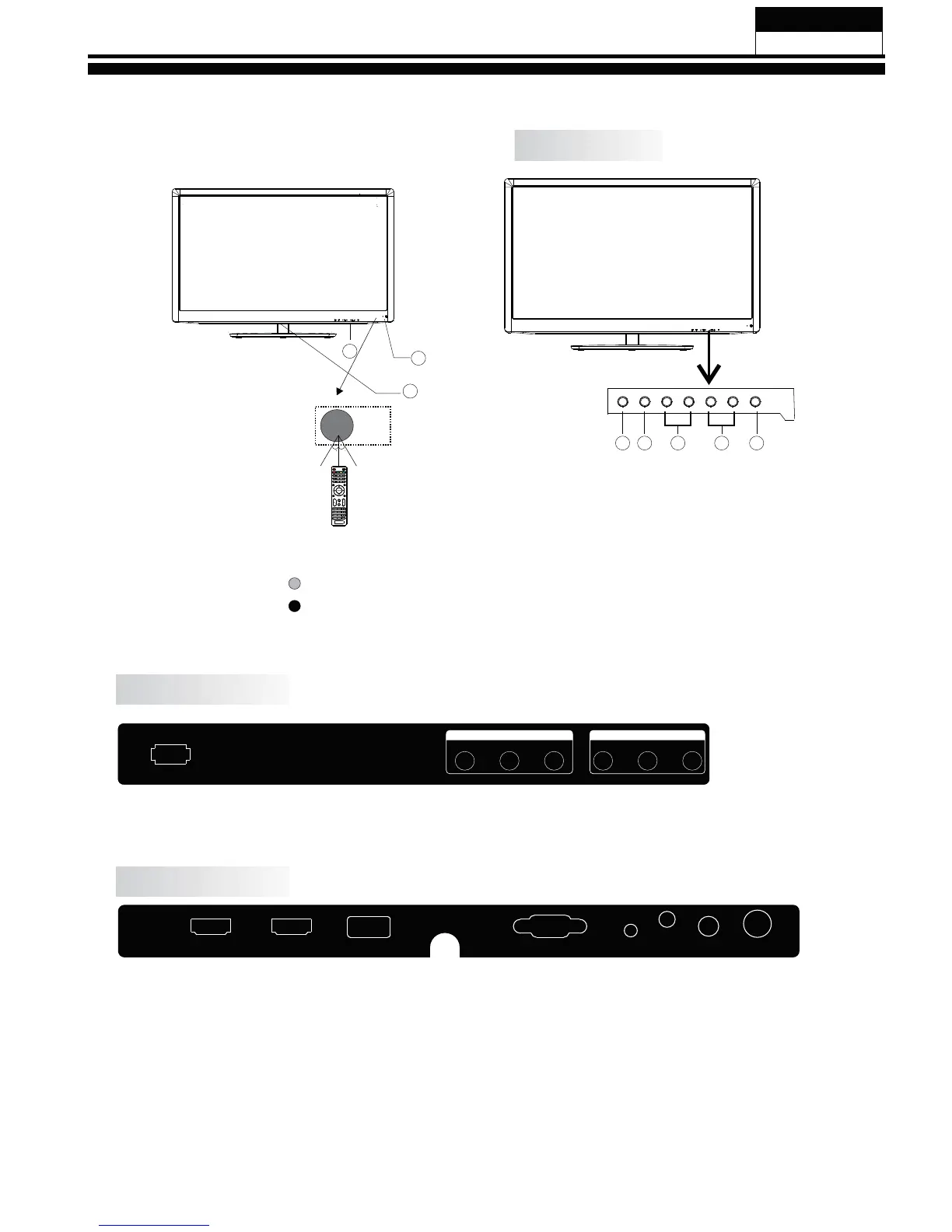

1: Remote control sensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3: Panel keys
1. SOURCE:
2. MENU:
3. CH+/CH-:
4. VOL+/VOL-:
5. STANDBY:
Display the input source menu.
Display main MENU.
In TV mode, press "CH+" or "CH-" to change the channel up
and down. In MENU mode, press "CH+" or "CH-" to select items in standby
mode, press "CH+" or "CH-" to turn on the TV.
Adjust sound level. In MENU mode, press "VOL+ " or
"VOL- " to adjust the item that you selected.
Press this button to turn the unit ON from STANDBY mode.
Press it again to turn the set back to STANDBY.
Side panel
REAR Connections
SIDE Connections
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF.
Note: 1. When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
30 30
1
3
2
1
2
3
4
5
HDMI1 HDMI2 USB VGA PC AUDIO
HEADPHONE
COAXIAL
RF
All the terminals are (from left to right):
POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT
Note: AV and component (YPbPr) share the R and L audio inputs.
AC-INPUT
100-240V~50/60Hz
VIDEO L R Y
Pb
Pr
COMPOSITE COMPONENT
Service Manual
Model No.:
6. Operation Instructions
Basal information
6-1 Front panel controls
- 22 -
To Next Page
