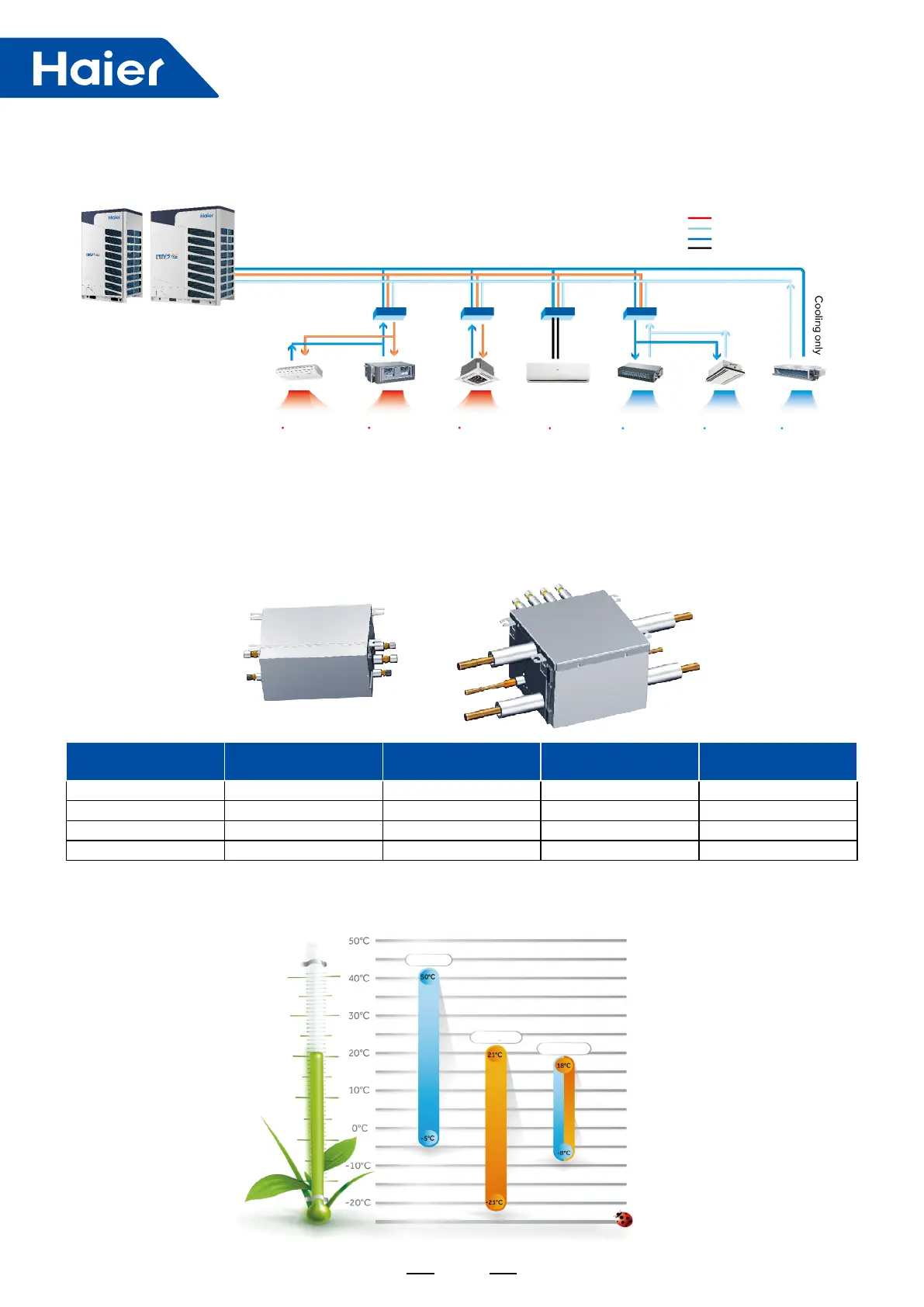

System Introduction
Outdoor Structure
Variable operation mode in one system
Vp (valve pipe) box structure overview
Overview
•Specially designed for MRV 5-RC, greatly reduced the volume
•Individual Valve + Pipe Box for Heat Recovery
•Threaded joint connection, easy for installation
Model name
Max.capacity
of indoor(kw)
Power Supply Max. indoor units Dimension
VP1-112B x≤11.2 1/220-240/50/60 5 388/200/277
VP1-180B 11.2<x≤18 1/220-240/50/60 8 388/200/277
VP1-280B 18<x≤28 1/220-240/50/60 8 388/200/277
VP4-450B ≤45 1/220-240/50/60 20 405/300/421
Wide temperature operation range
Heating Heating Heating Stop Cooling Cooling Cooling
Cooling&Heating
High pressure gas pipe
Suction gas pipe
Liquid pipe
Refrigerant pipe not ow
Cooling(DB)
Heating(WB)
Mix mode(WB)
