Haier MRV 5-RC AS072MNERA User Manual

83

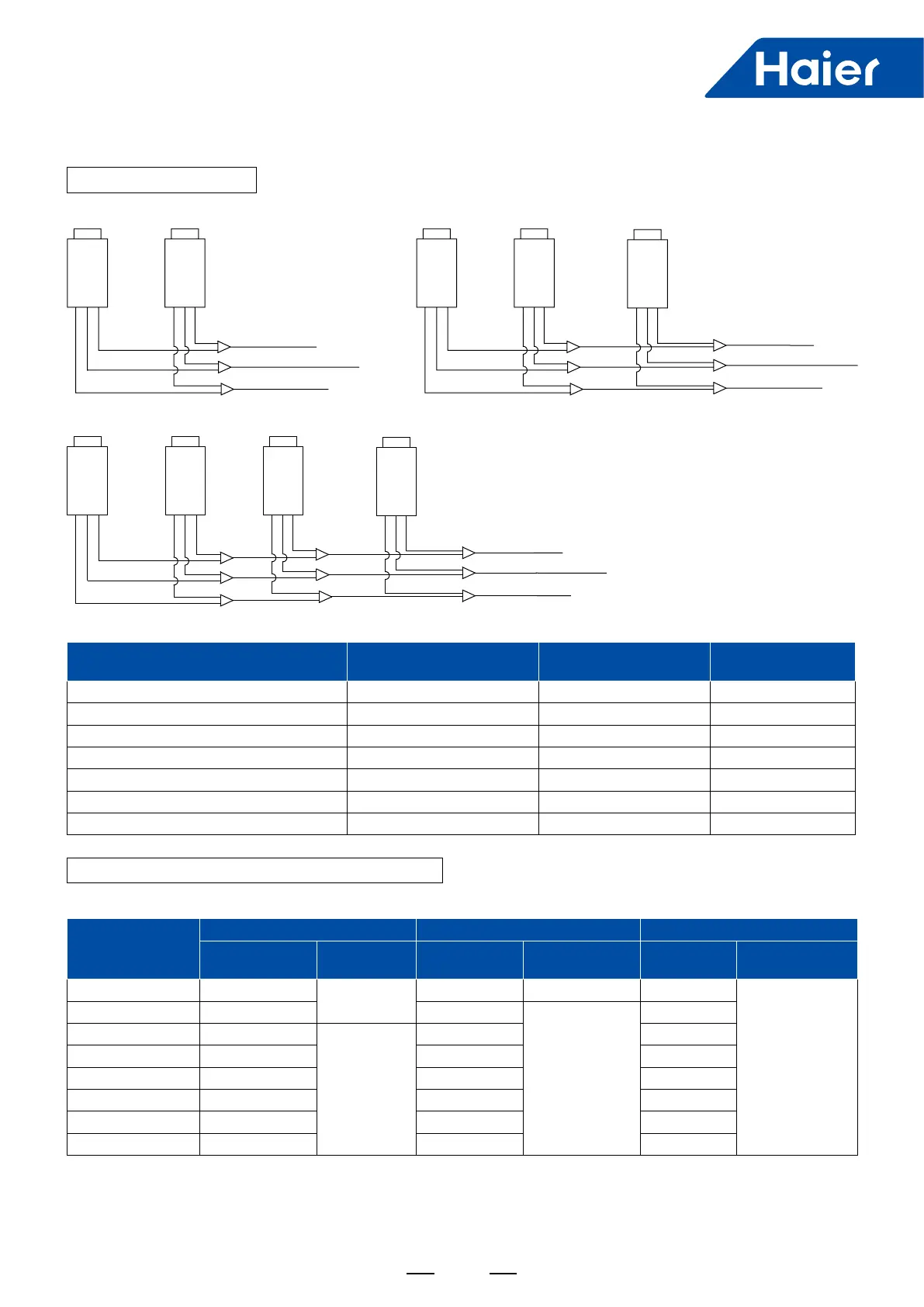

Outdoor pipe dimension
24~44HP
a Liquid pipe
b Suction gas pipe
c HP gas pipe
d Liquid pipe
a
b
c
e Suction gas pipe
f HP gas pipe
46~66HP
g Liquid pipe
d
a
e
b
f
c
h Suction gas pipe
i HP gas pipe
68~88HP
The pipe "a, b, c, d, e, f, g, h, i" should be conrmed as to the below table
Unit pipe spec and connection method (unit: mm)
A. Outdoor unit
Total outdoor capacity before gather
pipe (kW)
Suction gas pipe (a,d,g)
(mm)
HP gas pipe (b,e,h)
(mm)
Liquid pipe (c,f,i)
(mm)
45.0 φ28.58 φ25.40 φ12.70
50.4~80 φ28.58 φ25.40 φ15.88
85~95.4 φ31.80 φ28.58 φ19.05
100.8~156.8 φ38.10 φ34.90 φ19.05
162.4~184.5 φ41.30 φ38.10 φ19.05
191.0~236 φ44.50 φ41.30 φ22.22
241.5~248.0 φ50.80 φ44.50 φ25.40
Model
HP gas pip Suction gas pip Liquid pipe
Diameter
(mm)
Connection
method
Diameter
(mm)
Connection
method
Diameter
(mm)
Connection
method
AV08IMVURA Ø19.05
Flared
Ø19.05 Flared Ø9.52
Flared
AV10IMVURA Ø19.05 Ø22.22
Braze
Ø9.52
AV12IMVURA Ø22.22
Braze
Ø25.4 Ø12.7
AV14IMVURA Ø22.22 Ø25.4 Ø12.7
AV16IMVURA Ø25.4 Ø28.58 Ø12.7
AV18IMVURA Ø25.4 Ø28.58 Ø15.88
AV20IMVURA Ø25.4 Ø28.58 Ø15.88
AV22IMVURA Ø25.4 Ø28.58 Ø15.88
