AUDIO OUT
R L
WOOFER
AUDIO OUT
R L
WOOFER

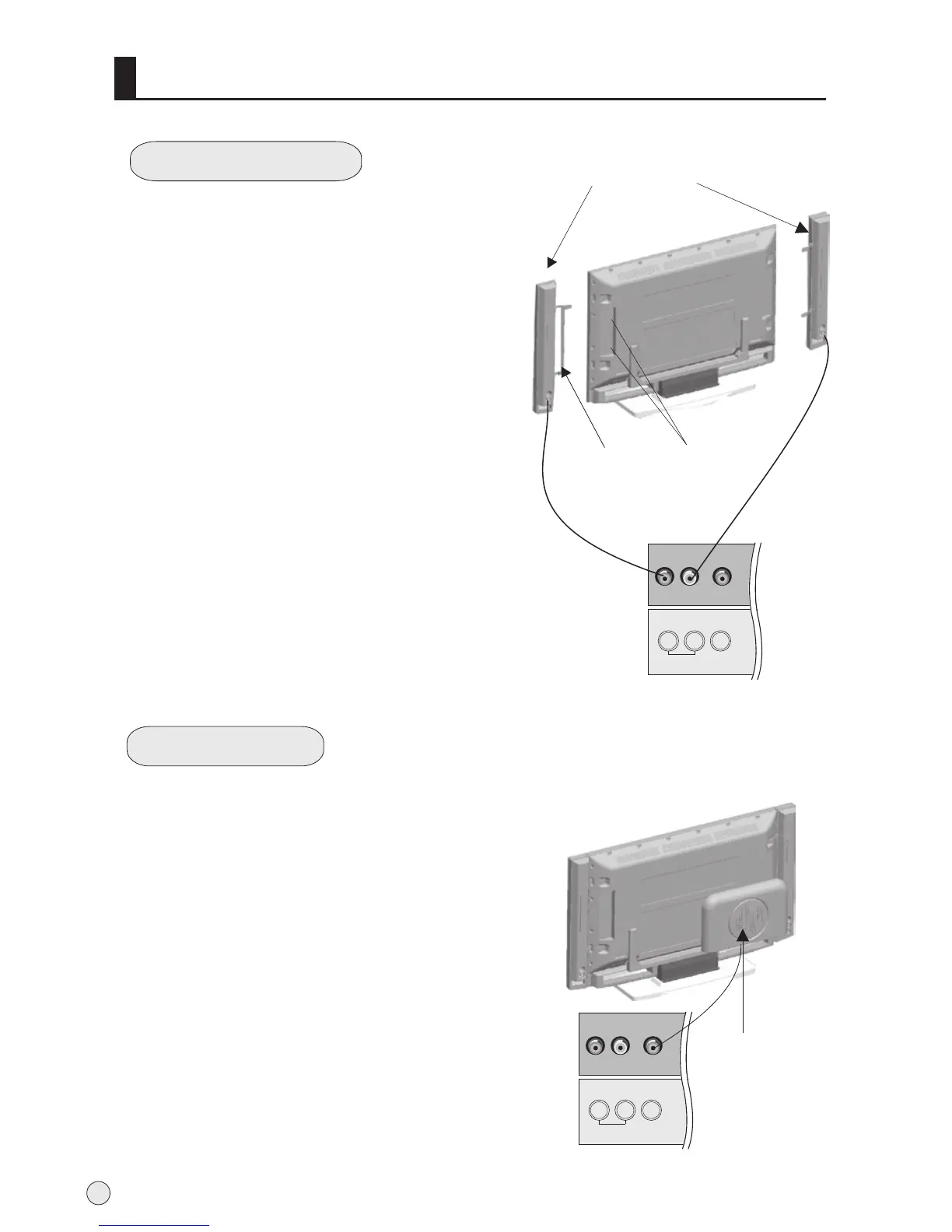

External Equipment Connections
Connect Loudhailer
1. Face the LCD screen upside down on a
clean blanket or a bracket and pay
attention not to indent the casing. Lay the
two speaker aside of the LCD.
2. Lay a bracket on the speaker
and hind rind, Fix 8 ST4X8 screws to the
speaker and hind rind.
3. Connect the speaker cable to the
speaker terminal of LCD TV and the
speaker terminal, and insert the
connecting cable into the terminal slot,
Release the speaker terminal, and ensure
that the white connecting cable is inserted
in the terminal slot marked red and black
connecting cable is inserted in the black
terminal slot, and that anode and cathode
poles are correctly connected.
nnectent
Screw hole
Loudhailer
Annectent
bracket
Connect Woofer
Woofer
1. Take the woofer out, and place it the hind rind. (See picture)
2. Connect cable to the woofer terminal and
LCD TV terminal, and insert the connecting
cable into the terminal slot.
12
