Hakko Electronics FR-410 - PACKING LIST AND PART NAMES; SPECIFICATIONS

1

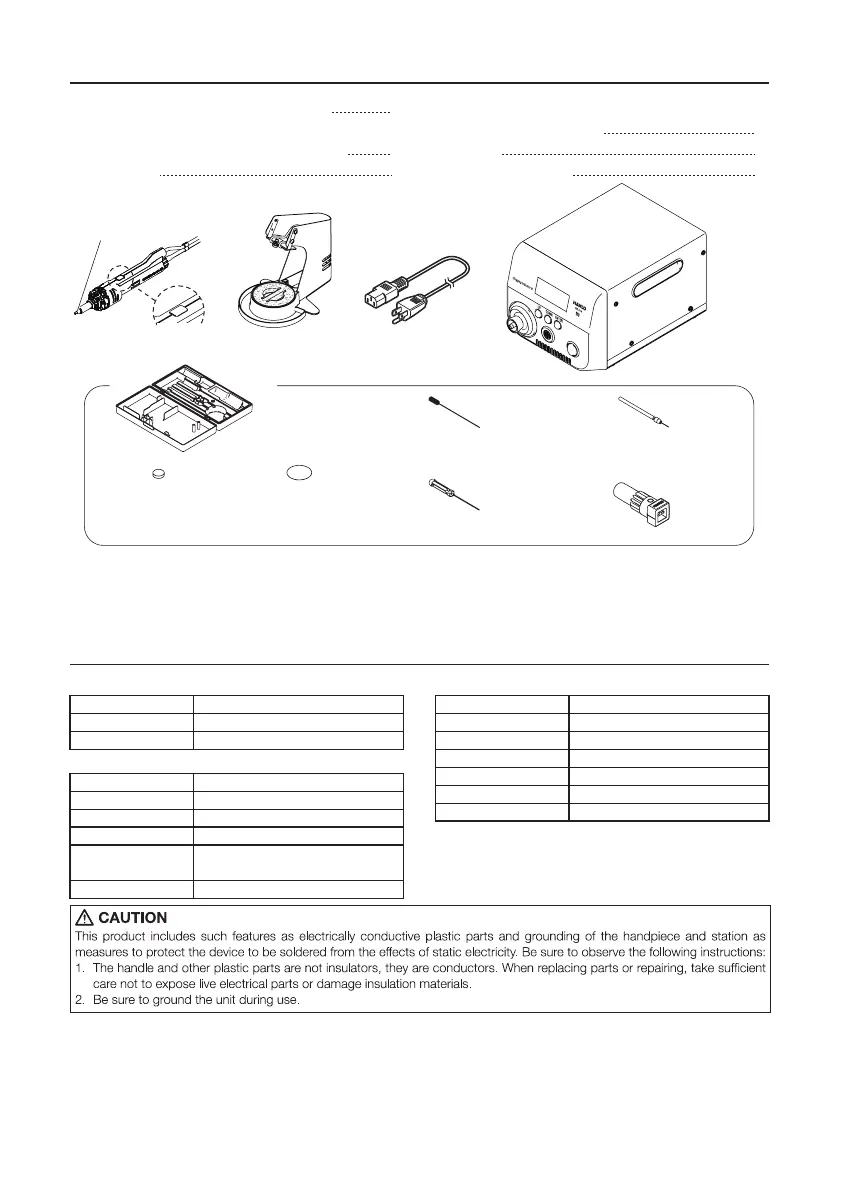

1. PACKING LIST AND PART NAMES
Please check to make sure that all items
listed below are included in the package.
Cleaning Pin (for ø1.0mm
[0.04 in] nozzle)
Nozzle wrench
Ceramic paper Filter (L) Station
Filter
Cleaning Pin
(for Heating Element)
Cleaning Drill (for ø1.0mm
[0.04 in] nozzle)
HAKKO FH-410
Power cord
Tool box
HAKKO
FR-410 Station
×1
×1
×1
×1
×2×4
HAKKO FR-410 Desoldering station
HAKKO FR-4104 Desoldering Handpiece
(with N61-05 ø1.0mm [0.04 in] nozzle)
Power cord
1
1
1
HAKKO FH-410 Handpiece holder
(with Cleaning sponge)
Tool box
Instruction Manual
1
1
1
Nozzle (N61 series)
Trigger
HAKKO
FR-4104
2. SPECIFICATIONS
● HAKKOFR-410
Power consumption
Temperature range
Temperature stability
190W
330 - 450℃ (620 - 850℉)
±5℃ (9℉) at idle temperature
● Station
Output
Vacuum generator
Vacuum pressure (max.)
Suction flow
Dimensions
Weight
AC 24V
Vacuum pump, double cylinder type
80 kPa (600 mmHg)
15 L/min.
165(W) × 137(H) × 244(D) mm
(6.5 × 5.4 × 9.6 in.)
4.8 kg (10.6 lb.)
● HAKKOFR-4104
Part name
Power consumption
Nozzle to ground resistance
Nozzle to ground potential
Cord
Length (w/o cord)
Weight (w/o cord)
HAKKO FR-4104
140W（24 V）
< 2 Ω
< 2 mV
1.2 m (4 ft.)
206 mm (8.1 in.) with N61-05 nozzle
180 g (0.4 lb.) with N61-05 nozzle
* The temperature was measured using the HAKKO FG-101
Station Tester.
* This product is protected against electrostatic discharge.
* Specifications and design are subject to change without notice.
2
3. WARNINGS, CAUTIONS AND NOTES
WARNING
CAUTION
To prevent accidents or damage to the HAKKO FR-410, be sure to observe the following:
● Do not use the unit for applications other than desoldering.
● Do not strike the handpiece against hard objects to remove excess solder. This will
damage the handpiece.
● Do not modify the HAKKO FR-410.
● Use only genuine HAKKO replacement parts.
● Do not allow the HAKKO FR-410 to become wet, or use it when hands are wet.
●
Be sure to hold the plug when inserting or removing the handpiece and power cords.
● Be sure the work area is well ventilated. Desoldering produces smoke.
● While using the HAKKO FR-410, don't do anything which may cause bodily harm
or physical damage.
When power is ON, the nozzle will be hot. To avoid injury or damage to
personnel and items in the work area, observe the following:
● Donottouchthenozzleorthemetalpartsnearthenozzle.
● Donotallowthenozzletocomecloseto,ortouch,flammablematerials.
● Informothersintheareathattheunitishotandshouldnotbetouched.
● Turnthepoweroffwhennotinuse,orleftunattended.
● TurnthepoweroffwhenchangingpartsorstoringtheHAKKO
FR-410.
● Thisunitisforcounterorworkbenchuseonly.
● This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in safe way and
understand the hazards involved.
● Children shall not play with the appliance.
● Cleaning and user maintenance shall not be made by children
without supervision.
Warnings, cautions and notes are placed at critical points in this manual to direct the
operator’s attention to significant items. They are defined as follows:
WARNING：FailuretocomplywithaWARNINGmayresultinseriousinjuryordeath.
CAUTION：FailuretocomplywithaCAUTIONmayresultininjurytotheoperator,
ordamagetotheitemsinvolved.
NOTE：ANOTEindicatesaprocedureorpointthatisimportanttotheprocess
beingdescribed.
