⑥USB device
terminal
⑦USB I/F terminal
Power receptacle
Fuse

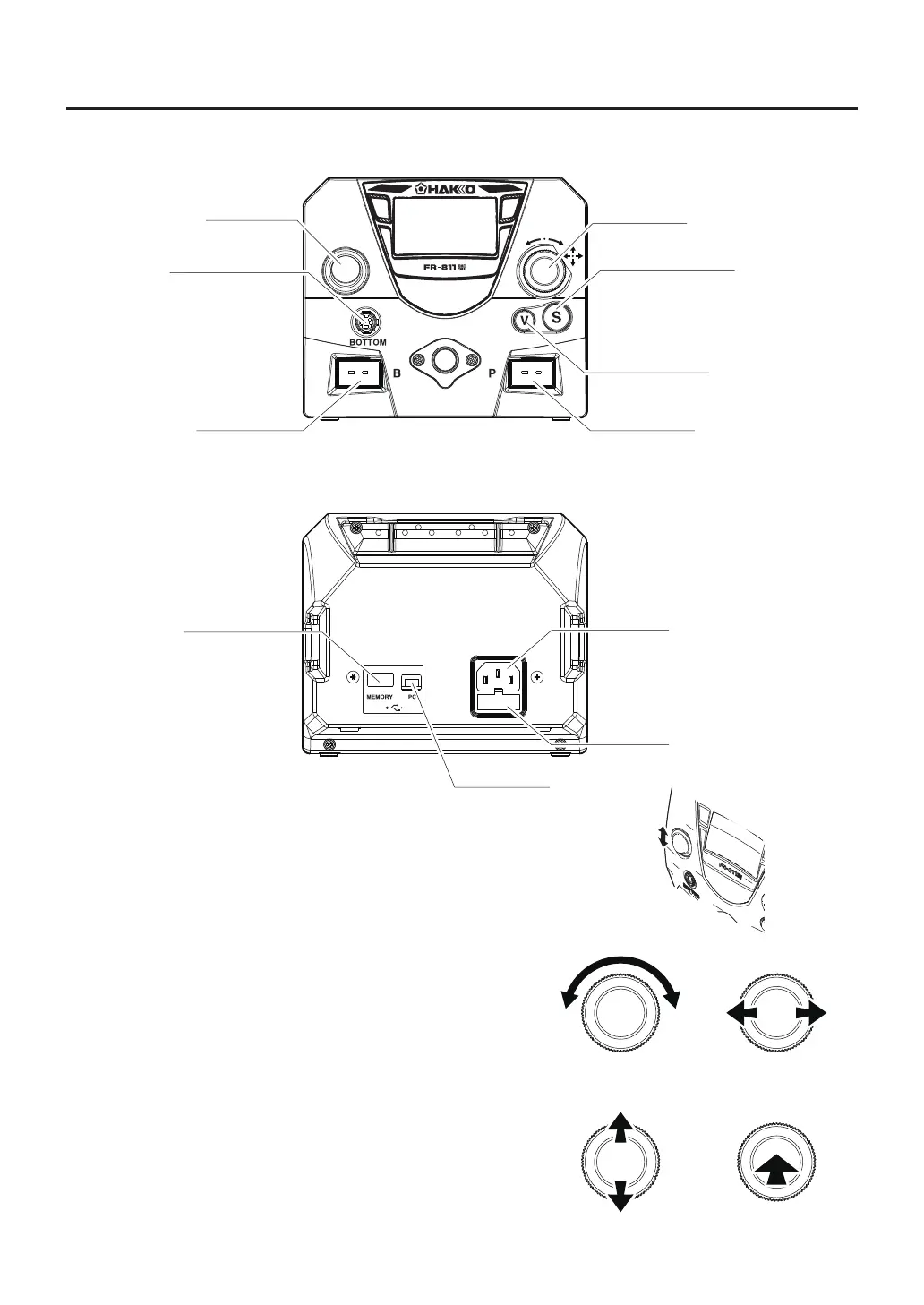

4. PART NAMES
● Station
※1Refertothe■
Connection with the bottom Heater” in page 28.
①Power switch
This switch turns the power ON and OFF.
②Control Knob
There are 4 main types of control knob operations.
・Turning the control knob left or right changes values
or changes the selected item.
・Tilting the control knob left or right shifts the selected
position or changes the selected item.
(Example: When the hundreds digit in the temperature setting
screen is blinking, tilting it once to the right will shift
the selected position to the tens digit.)
・Tilting the control knob up or down changes the selected item.
・Pressing the center of the control knob confirms input of data
values and ends the input mode for that data.
Turning left or right Tilting left or right
Tilting up or down
Pressing center
②Control Knob
Receptacle
※1
(for bottom heater)
③S (START/STOP) button
④V (VACUUM) button
①Power switch
T/C connector
※1
(for bottom heater)
⑤T/C connector
(for Handpiece)
