CAUTION
Solder remaining on the P.W.B. (printed-wiring
board) will be deteriorated. Use a solder sucker
or wick to remove remaining solder.
②①
③ ④
① ②
③ ④
6. OPERATION
● INSTALL/REMOVE
● Installation

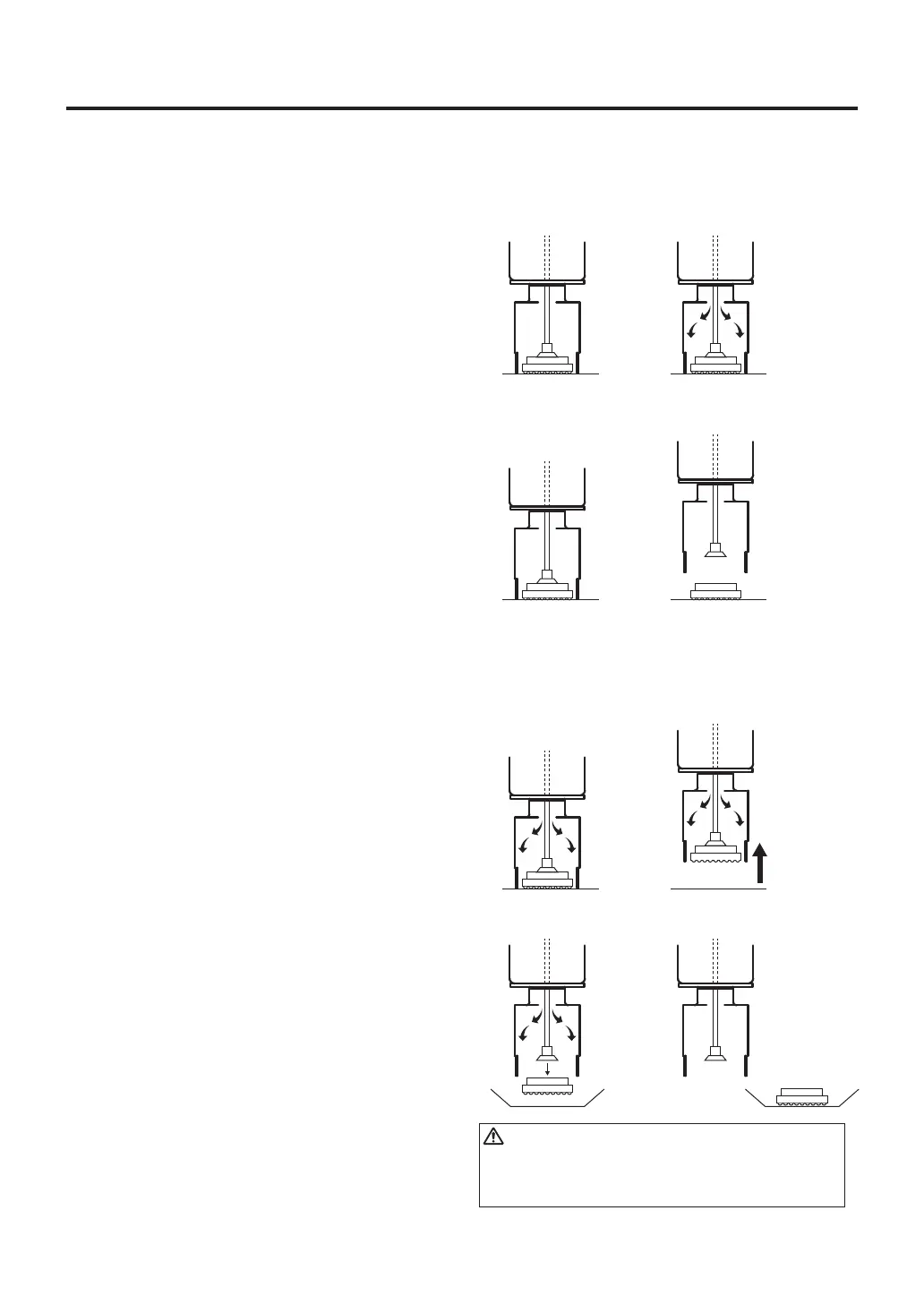

Apply an appropriate amount of solder paste to the P.W.B.
①Part suction and positioning
Have the part sucked by the pads and position the
part on the P.W.B.
②Heating
Hot air blows from the nozzle to melt the solder.
③Cooling
Heater is stopped, cooling begins.
④Lift the handpiece
Make sure the solder has hardened before lifting
the handpiece.
● Removal
Mount the nozzle and pads on the part to be removed.
①Heating
Hot air blows from the nozzle and melts the solder.
②Part removal
Lift the handpiece and remove the part from
the P.W.B.
③Releasing the removed part
Release the removed part, turn off the vacuum.
④Cooling
Heater is stopped, cooling begins.
