42
CAUTION
Please make sure to connect the bottom heater to the same power supply line as the HAKKO
FR-811. Failure to do so may cause unstable operations and/or noise to occur.

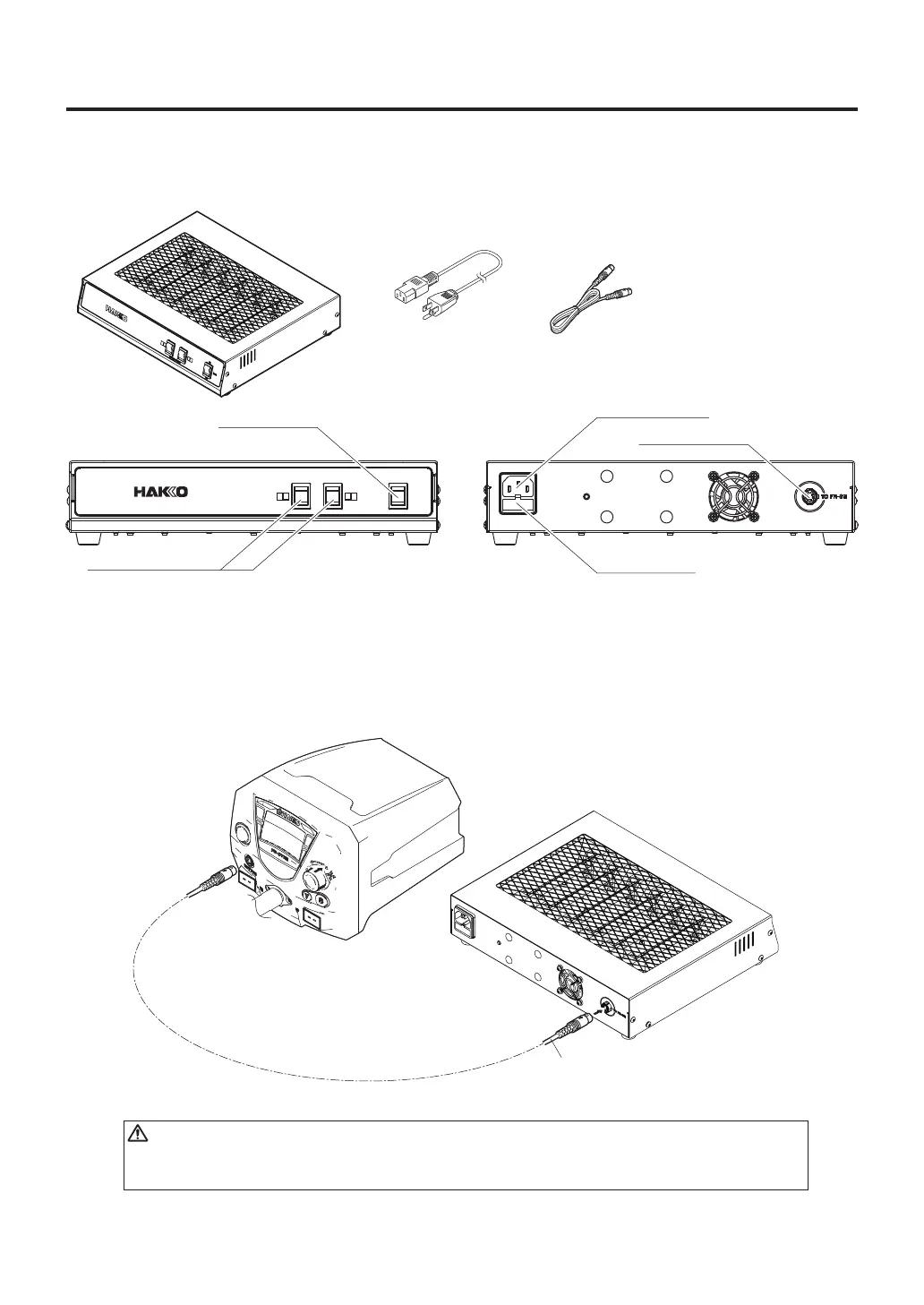

■ Connection with the bottom heater.
Powercord
HAKKOFR-811
bottom
heater
(rear)
Connectingcable
Connectingcable
Bottom
heater
● Bottom heater (sold separately) Packing list
The bottom heater (sold separately) can be connected to the HAKKO FR-811 with the connecting cable.
Settings for the bottom heater are set using the HAKKO FR-811.
Refer to the “● MANUAL mode” and “● AUTO mode” for setting instructions.
ON
OFF
MAIN
HEATER SELECT
Powerswitch
Zoneselectorswitch
Powerreceptacle
Receptacle
Fuse
