Operation
Hakomatic B45 CL
1 Indicator field for:
- operating hour counter,
- service indicator, and
- charge status indicator
2 Charge mode indicator
3 Main switch
4 Bail system switch
5 Direction switch
6 Driving speed control
7 Symbol for silence kit (option)
8 Symbol for tool connection (option)
9 Silence kit on/off button (option)
10 Tool connection on/off button
(option)
11 Solution dosage button
12 Solution supply on/off button
13 Brush ejector

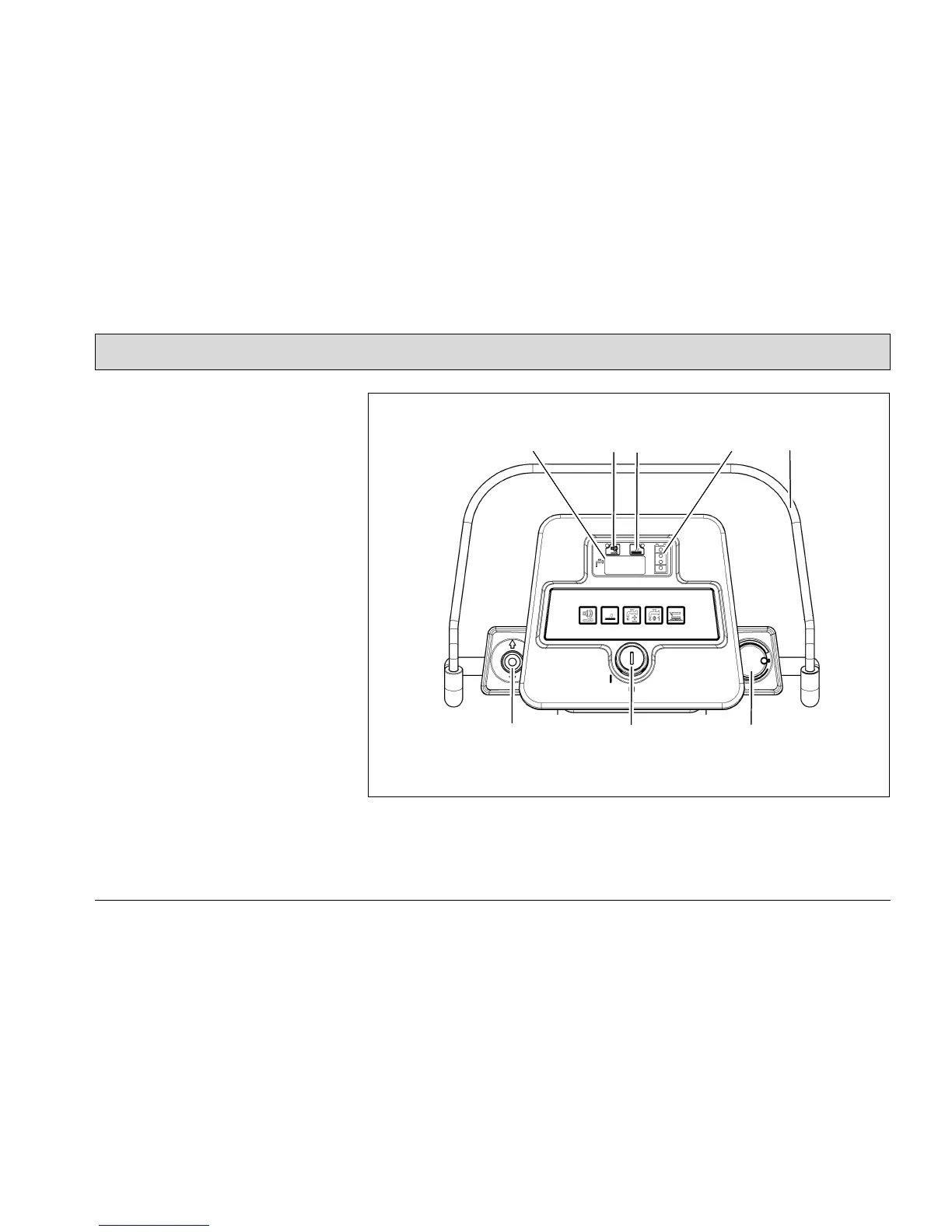

Fig.10 Hakomatic B45 CL
4
7
8
1
2
3
6
5
9 10
11 12 13
