5.8 Squeegee
1 Squeegee
2 Star-shaped knob
3 Adjusting bolt for angle adjustment
4 Suction hose
5 Fastening device
6 Washers for height adjustment

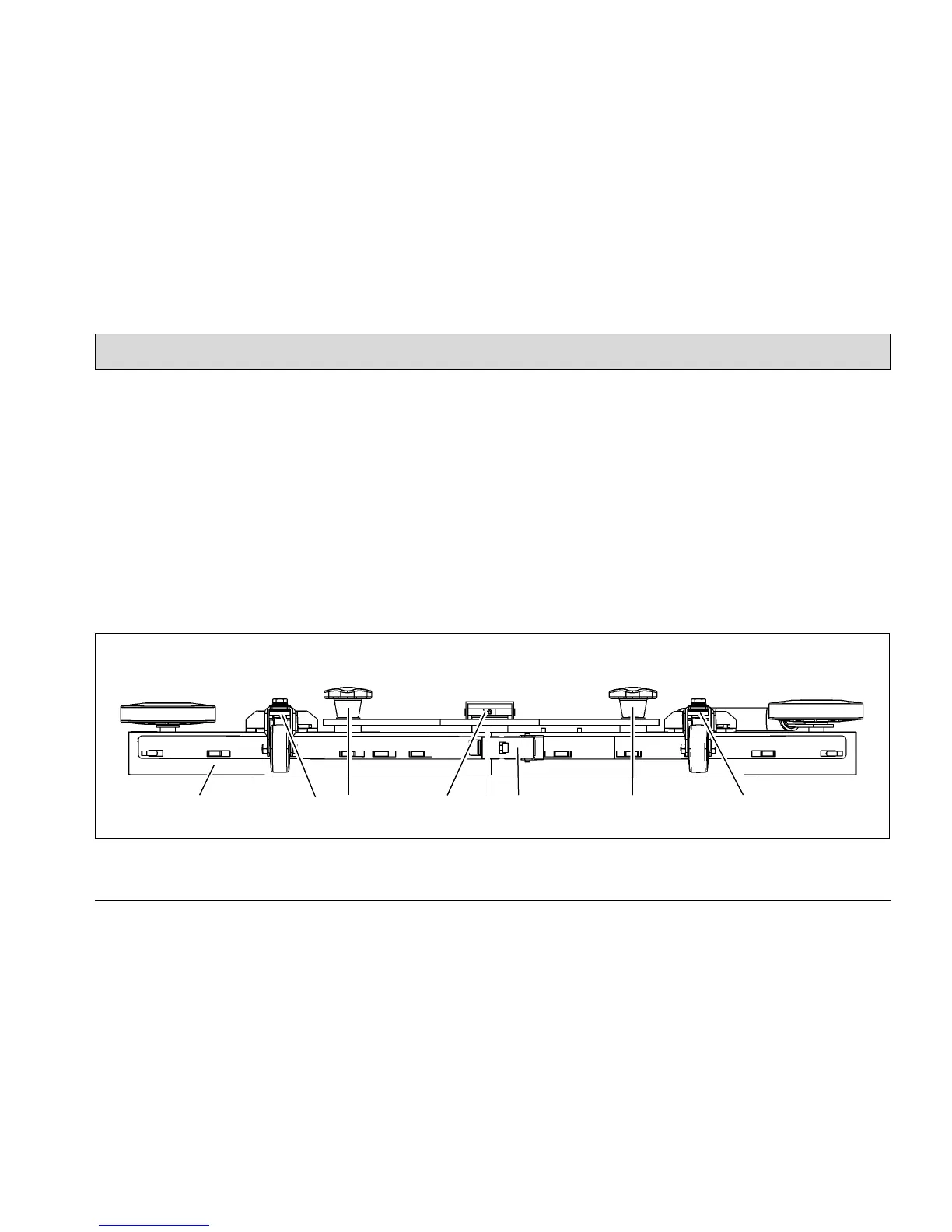

Fig.16
5.8.1 Cleaning the squeegee
Check the squeegee (Fig. 16/1) daily
and clean it as necessary.
To clean the squeegee raise it, discon-
nect the suction hose (Fig. 16/4), loo-
sen the two star-shaped knobs (Fig. 16/
2) and remove the squeegee.
5.8.2 Changing the sealing strips
Check the inner and outer sealing strips
on the squeegee (Fig. 16/1) weekly for
signs of wear. The sealing strips can be
turned four times (90°) and reused.
1. Raise the squeegee.
2. Disconnect the suction hose, loosen
the two star-shaped knobs and re-
move the squeegee.
3. Loosen the fastening device
(Fig. 16/5) and remove the outer
sealing strip. Turn the sealing strip or
replace it, as necessary. Change the
inner sealing strip in the same way.
