Haldex S-ABA - Torque Specifications

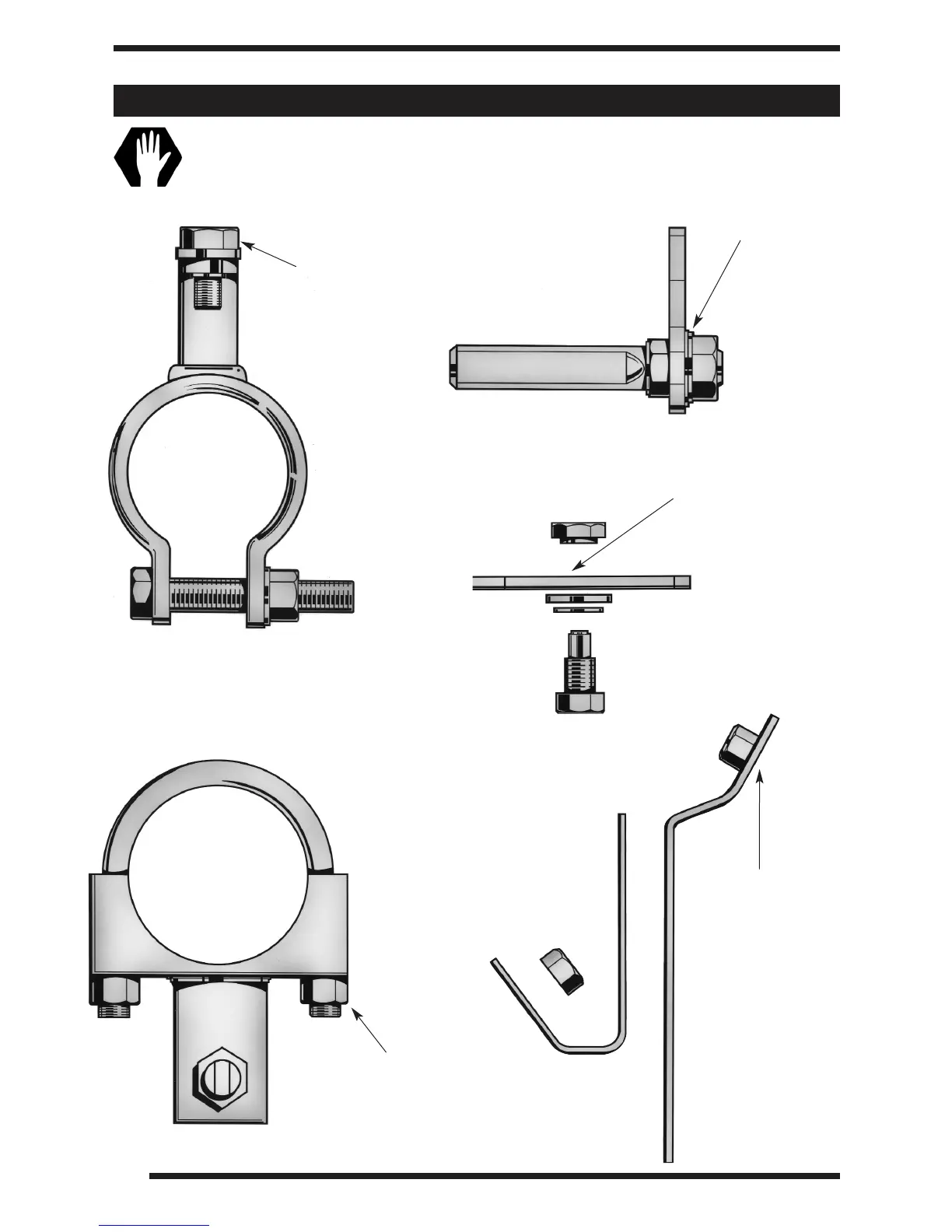

Round Anchor
Stud Pin with
Fabricated
Ring Clamp
Torque to 15-20
ft. lbs. when
installed
3/8”-16 Nut
and Bolt
Flat Anchor
Stud Pin
Torque to
40-50 ft. lbs.
when installed
Round Anchor Stud
Pin with Slide Nut
Torque to 15-20 ft. lbs.
when installed
Strap Style
Bracket
Torque to
8-12 ft. lbs.
when installed
U-Bolt Style
Bracket
Torque to 20-
30 ft. lbs. when
installed
Note: Tighten all fasteners to manufacturer’s recommendations
unless otherwise specified below.
11
Torque to 15-20 ft.
lbs. when installed
Torque Specifications
