USER OPERATION AND MAINTENANCE
HP SERIES
PORTABLE PUMPS
43
11
MOUNTING DIMENSIONS

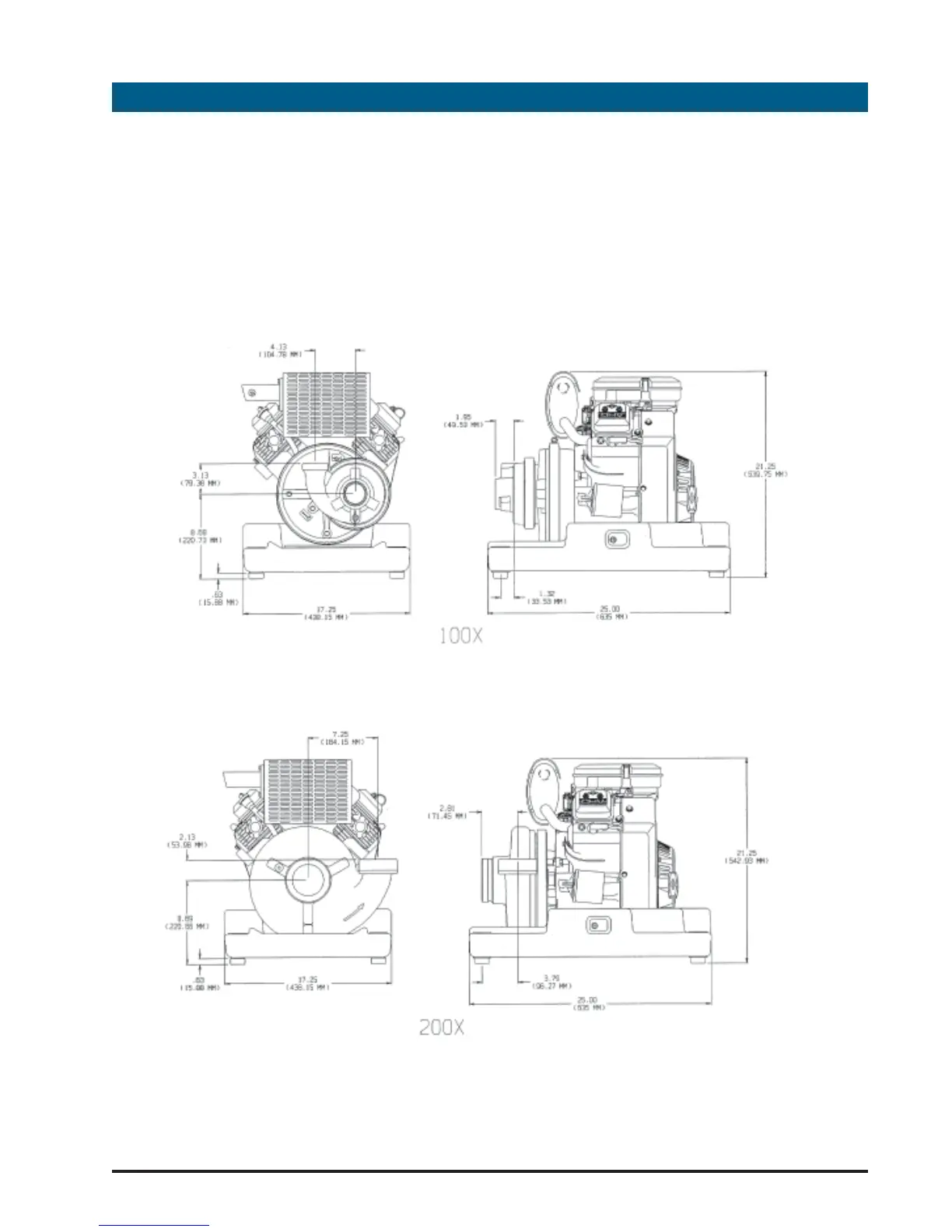

"X" SERIES PUMP MOUNTING DRAWINGS
The following pages contain drawings to assist in the mounting of "X" Series pumps
on apparatus. The drawings are not to scale but will assist the installer in locating
mounting holes for the pumps.
"X" Series Pump Mounting Dimensions
