53
Hallberg-Rassy 40 with Classic Interior

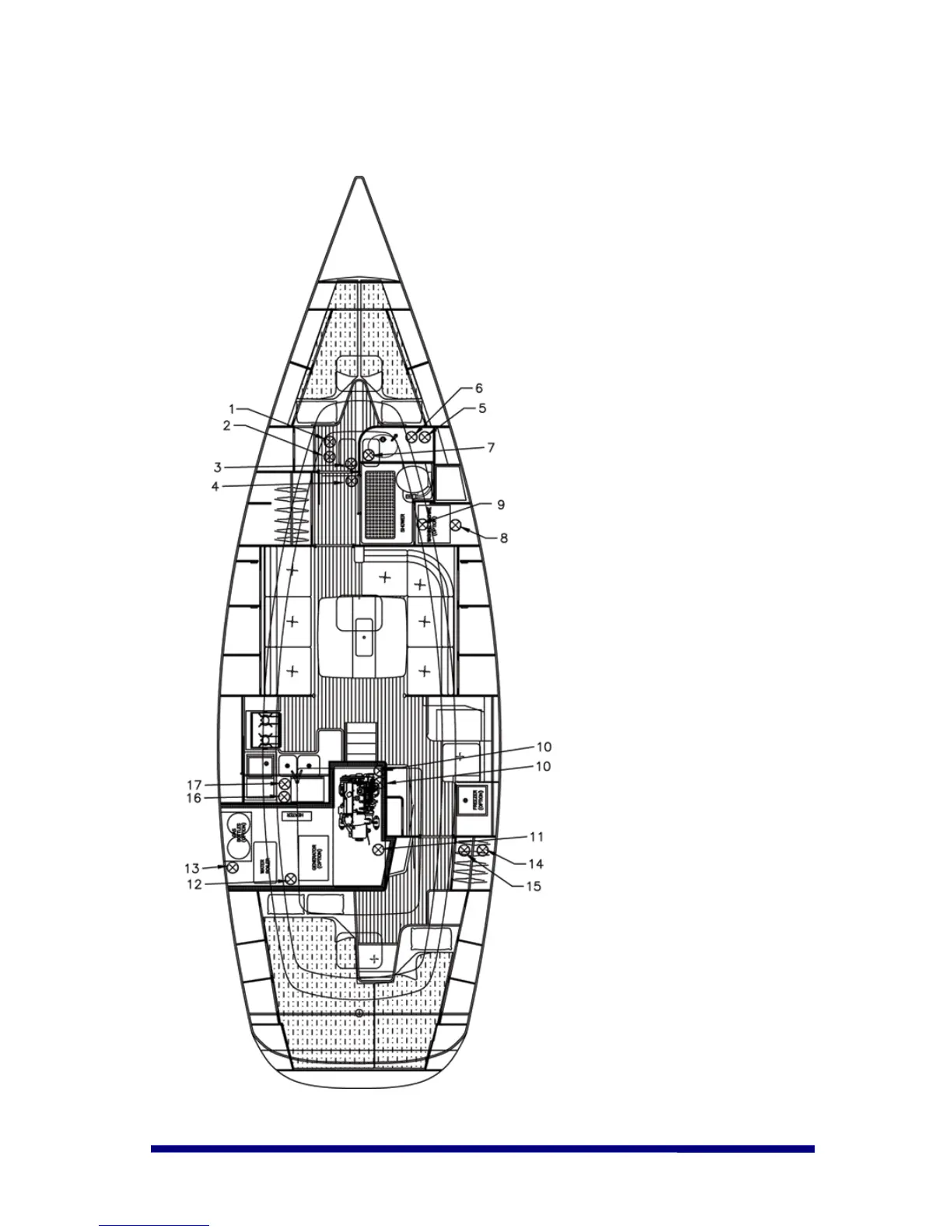

Through hull fittings overview
1= Deck wash pump *
2= WC in
3= Depth transducer
4= Speed transducer
5= Breather holding tank
6= Shower waste water out
7= Wash basin out
8= Washing machine out *
9= Holding tank out
10= Cockpit drain
11= Cooling water in, engine
12= Deck drain
13= Emergence bilge pump out
14= Manual bilge pump out
15= Deck drain
16= Heat exchanger watercooled
fridge and sink out
17= Heat exchanger watercooled
freezer* and sink out
Divergence due to extra equipment can occur
