Hallberg-Rassy 43 Standard

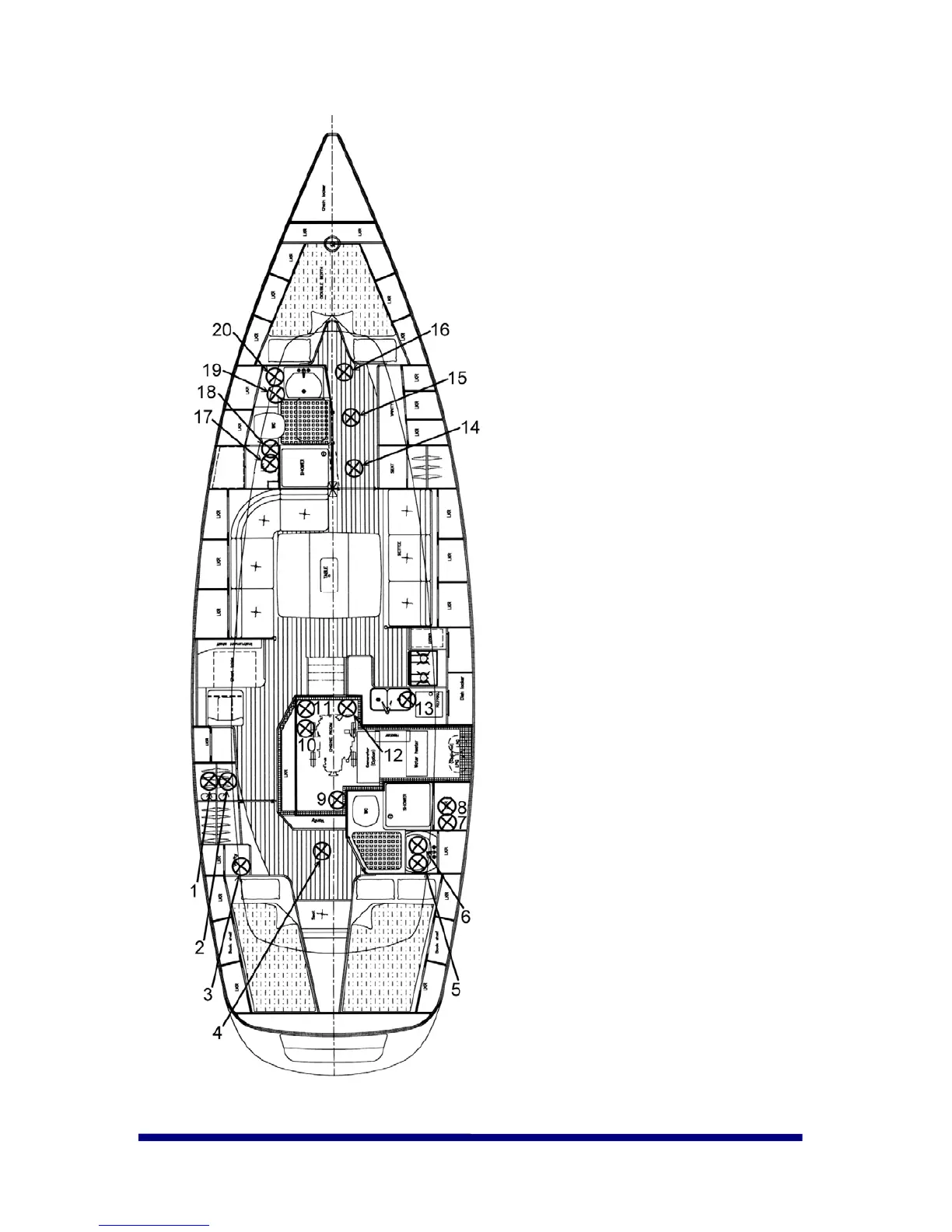

Through hull fittings overview
Divergence due to extra equipment can occur
1= Outlet man. drain pump
2= Outlet emerg. drain pump
3= Skinfitting, deck drain
4= Water intake, toilet
5= Wash basin, out
6= Skinfitting, deck drain
7= Outlet el. drain pump
8= Outlet, shower drain pump
9= Outlet, toilet
10= Skinfitting, cockpit drain
11= Water intake, engine
12= Skinfitting, cockpit drain
13= Outlet, wash basin
14= Speed transducer
15= Depth transducer
16= Water intake, toilet
17= Outlet, shower drain pump
18= Outlet, washing machine*
19= Outlet, holding tank/toilet
20= Outlet, wash basin
* = Extra equipment
