Hallberg-Rassy 48 Standard

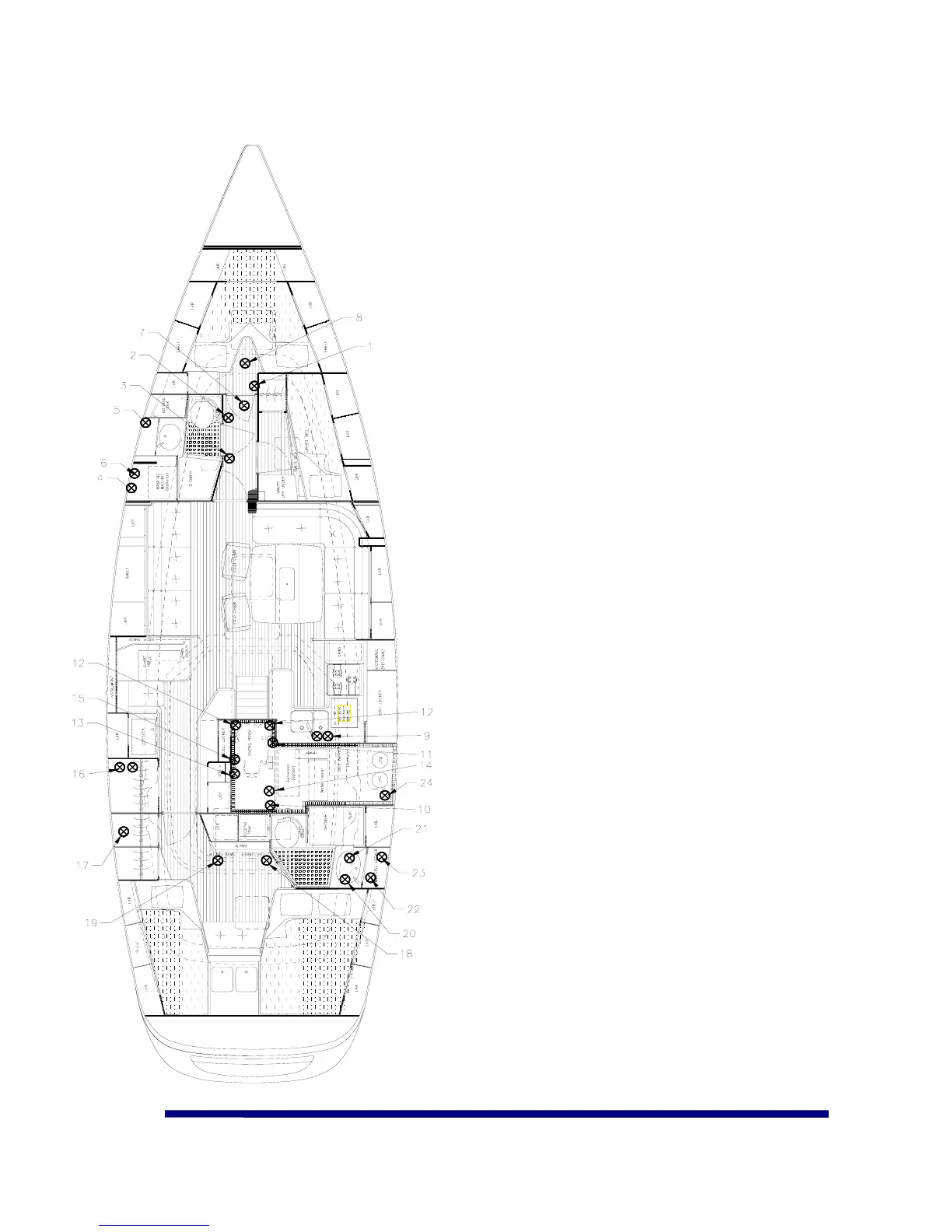

Through hull fittings overview
1= Inlet forward toilet
2= Outlet from forward toilet/holding tank
3= Outlet from sink
4= Outlet from shower waste water
5= Air intake forward holding tank
6= Outlet washing machine*
7= Speed transducer
8= Depth transducer
9= Outlet from sink galley
10= Cooling water intake main engine
11= Waterdivider generator*
12= Outlet cockpit drains (2pcs)
13= Inlet cooling water for AC* flusher 50litr*
14= Cooling water inlet generator*
15= Inlet watermaker*
16= Outlet from bilgepumps (emergency & manual)
17= Outlet deck drains port side
18= Outlet from aft toilet/holdingtank
19= Inlet aft toilet
20= Outlet from aft sink
21= Outlet deck drains starboard
22= Outlet from watermaker* AC out*
23= Outlet from shower waste water aft
24= Air intake aft holdingtank*
