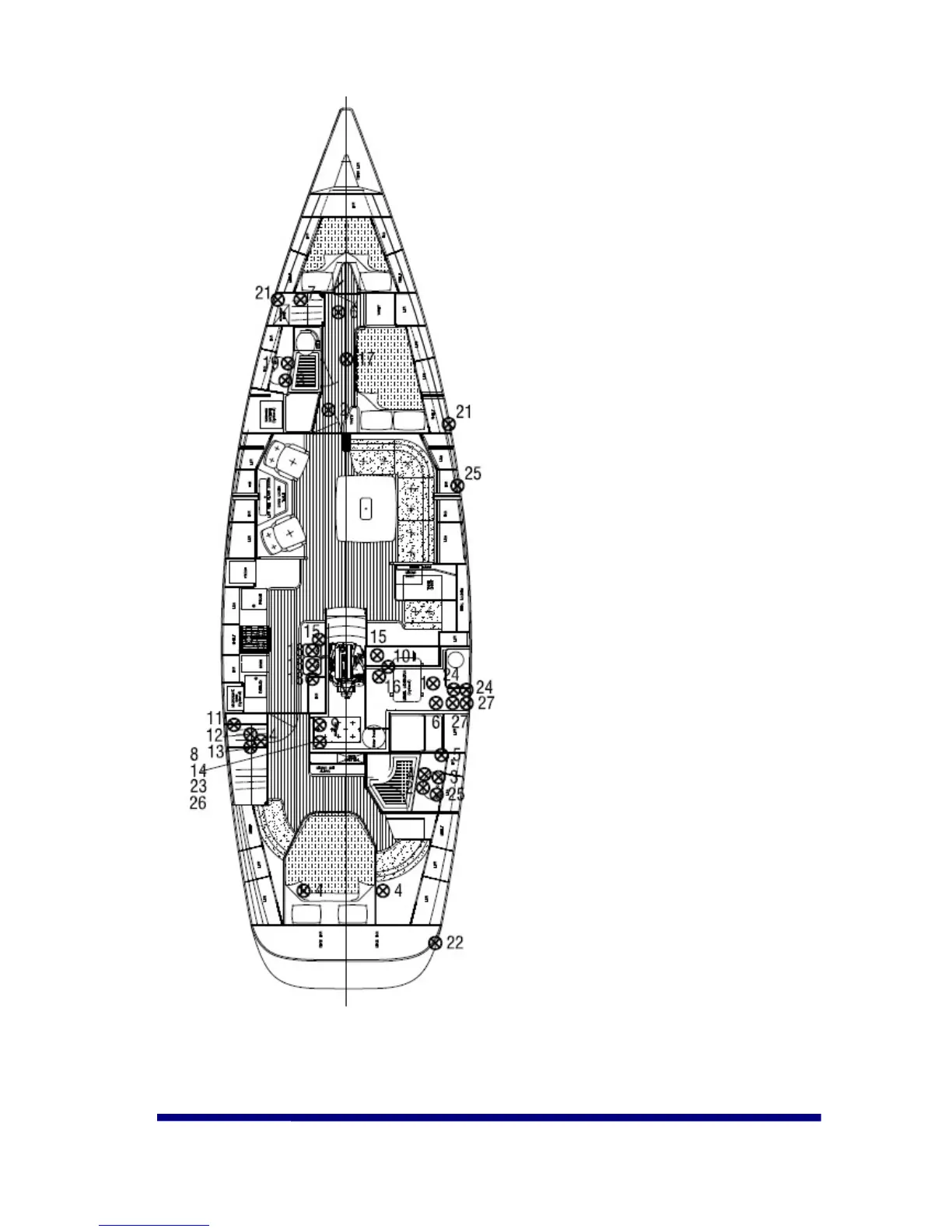

Hallberg-Rassy 55 Through hull fittings overview
Divergence due to extra equipment can occur
1= Exhaust diesel generator*
2= Outlet wash basin
3= Outlet shower drain pump
4= Skinfittings deck drainage
5= Outlet watermaker*
6= Outlet holdingtank/toilet
7= Air vent holding tank
8= Sea water inlet (only manaual toilets)
9= Seawater intake engine
10= Cooling water diesel generator*
11= Outlet emergency bilgepump
12= Outlet manual bilgepump
13= Outlet electrical bilgepump.
14= Water intake watermaker*
15= Cockpit drainage
16= Water intake diesel generator*
17= Speed/depth transducer
18= Outlet sink/ cooling compressors
19= Outlet washing machine*
20= Outlet dishwasher*
21= Air vent water tank
22= Exhaust main engine
23= Intake aircondition*
24= Air vent fuel tank
25= Outlet aircondition *
26= Inlet flush pump.
27= Exhaust heater
*= extra equipment
