Appendix B
Specifications
Overview
This appendix contains information on spectrometer operation, specifications, and system compatibility.
It also includes accessory connector pinout diagrams and pin-specific information.
How the QE65000 Works
Below is a diagram of how light moves through the optical bench of a QE65000 Spectrometer. The
optical bench has no moving parts that can wear or break; all the components are fixed in place at the time
of manufacture. Items with an asterisk (*) are user-specified.

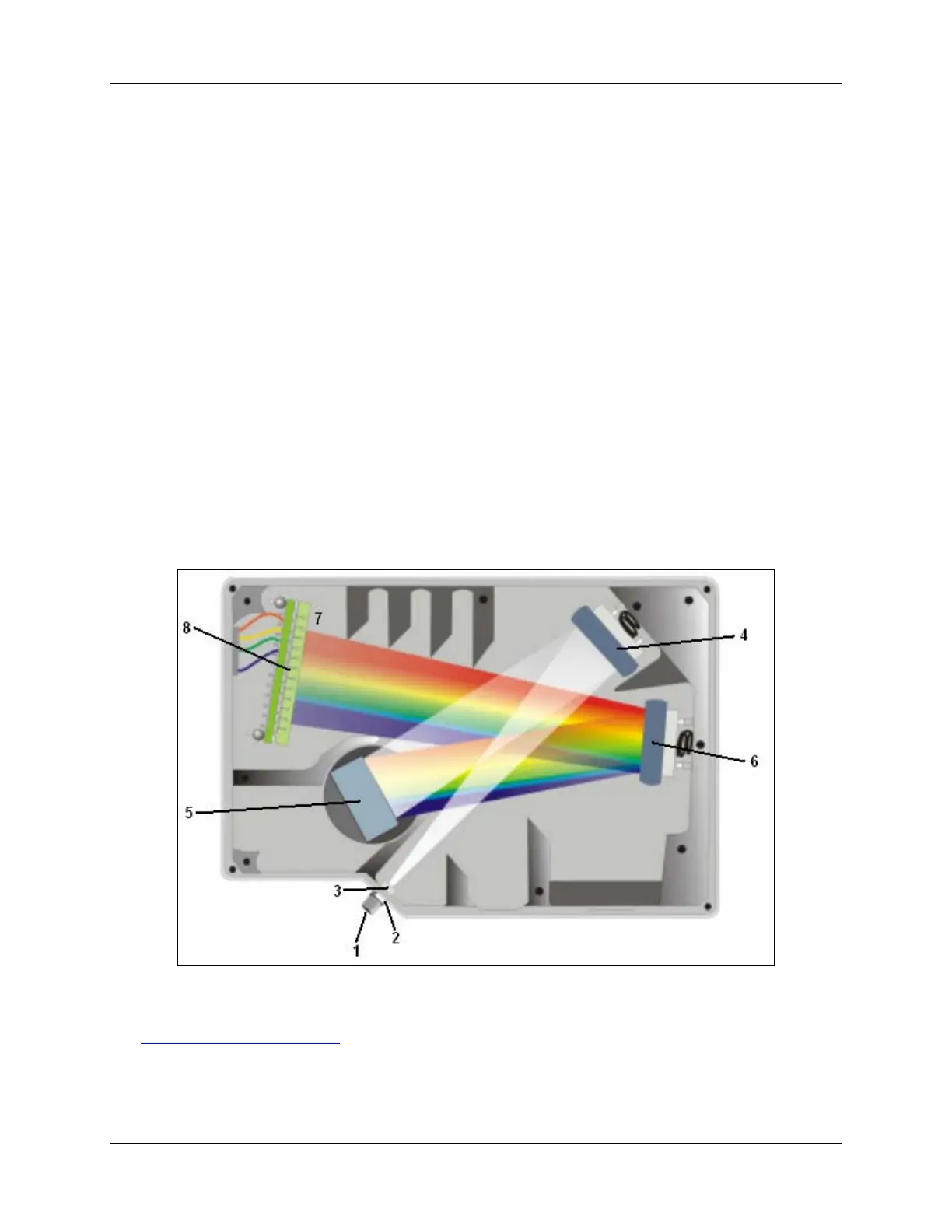

QE65000 Spectrometer with Components
See QE65000 Components Table
on the following page for an explanation of the function of each
numbered component in the QE65000 Spectrometer in this diagram.
220-00000-000-02-0605 35
