INTERNAL WIRING DIAGRAM
7

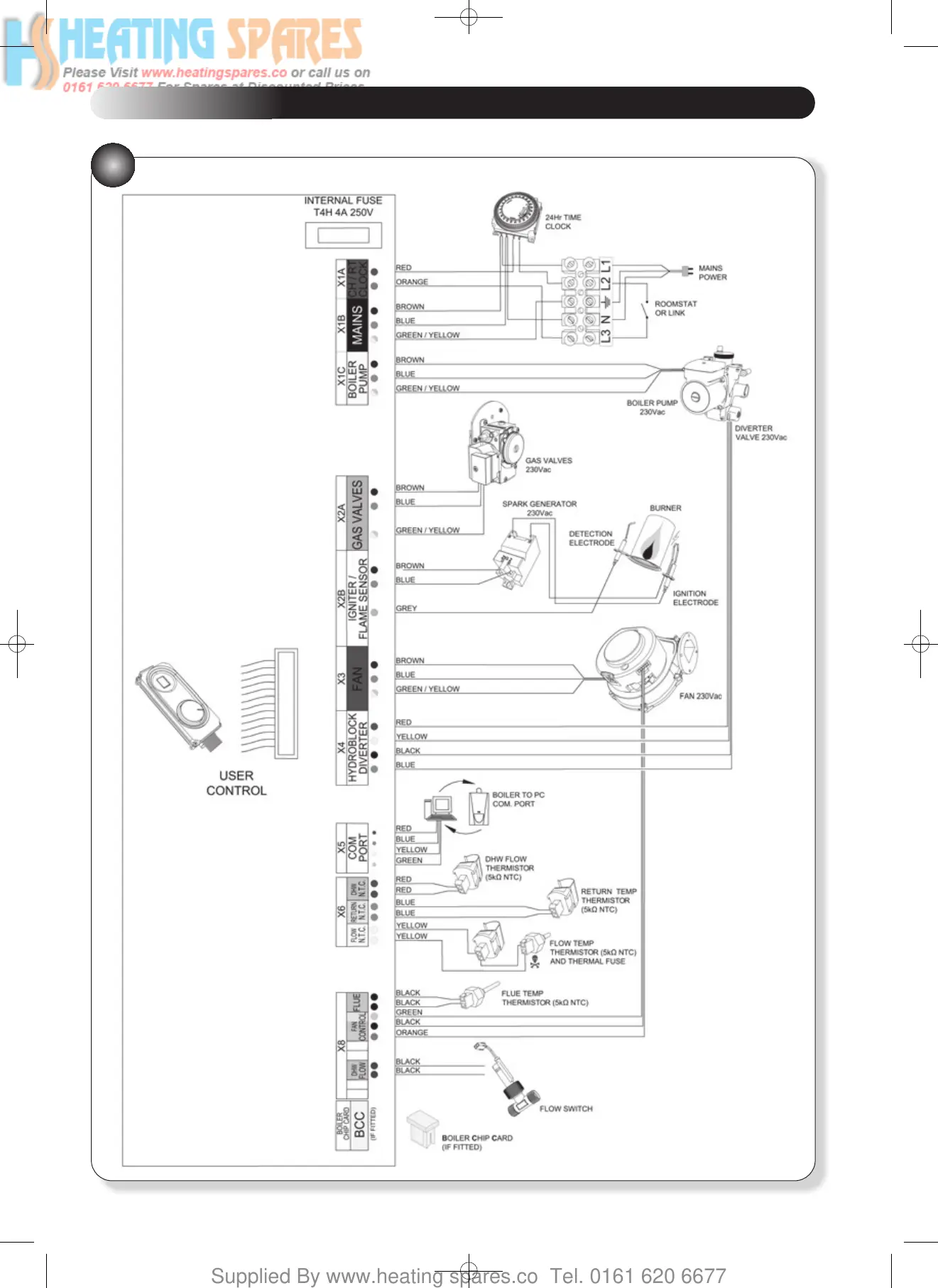

7.1 : FUNCTIONAL FLOW WIRING DIAGRAM
29
27
751094 ACE HE INST MANUAL:751094 ACE HE 28/9/10 09:45 Page 29
