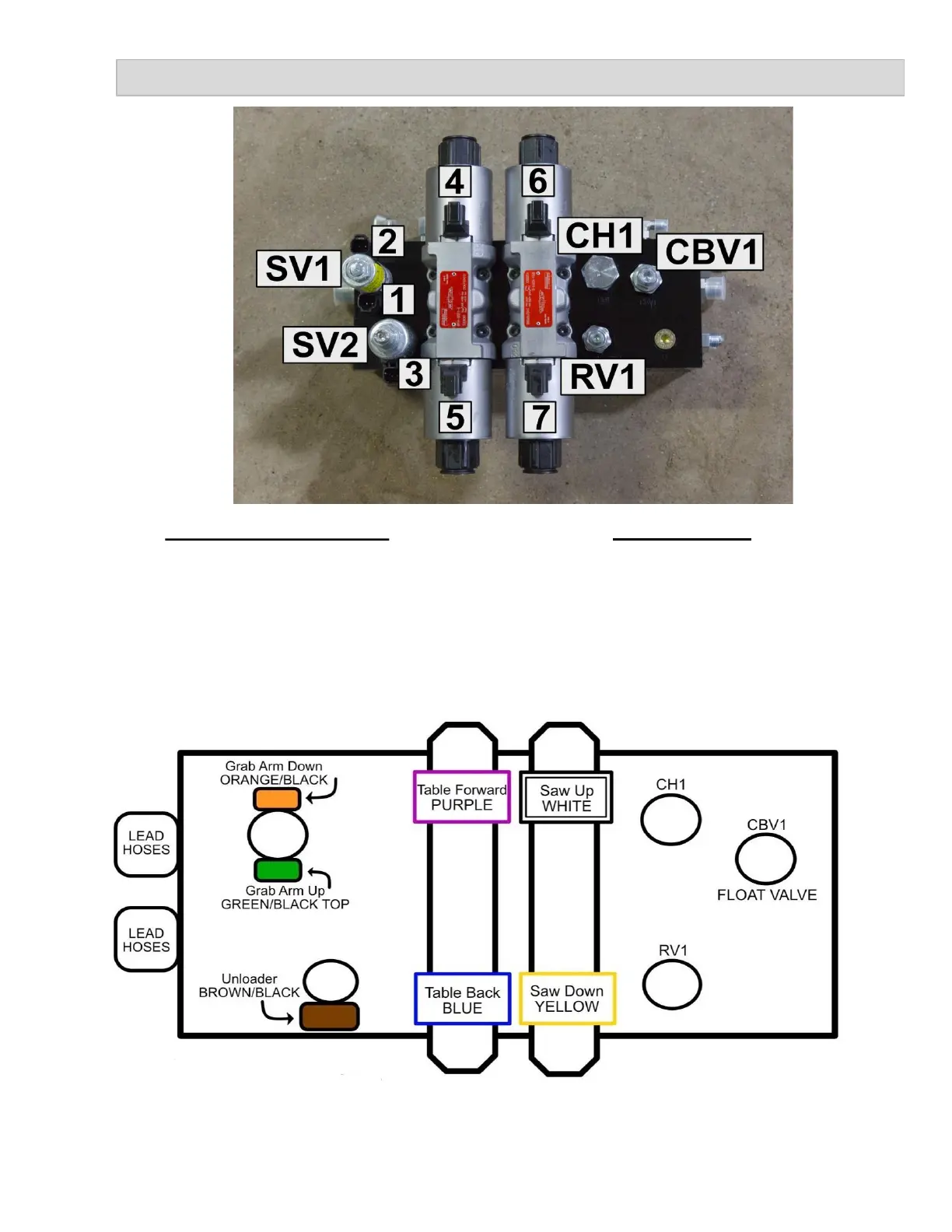

DIAGRAM OF VALVE BODY
VALVES ON VALVE BODY WIRE LOCATION
SV1-GRAB ARM UP AND DOWN 1-GRAB ARM UP
SV2-ENABLER / MAIN PRESSURE RELIEF 2-GRAB ARM DOWN
RV1-SAW UP RELIEF 3-UNLOADER
CH1-CAP 4-TABLE FORWARD
CBV1-FLOAT VALVE 5-TABLE BACK
6-SAW UP
7- SAW DOWN
