1.2 Description
The gun cleaner is completely made out of high-quality stainless steel, hoses for carrying out thinner as
well as coated controls in the front of the control panel. Hazardous fumes, which can form in the
machine, are extracted.
The lid of the basin must remain closed during the wash process. A security valve will deactivate the
supply pump when the lid of the basin is opened.
From the control panel the operator can:
• establish and check the spay gun
• integrate the supply of the spray
• integrate the supply for the clean solvent
• turn on the automatic wash process or eliminate it
• establish the wash time by means of the timer
• after the timer is finished, manually, carry out the last
step of washing
• pump clean solvent
• turn suction on/off

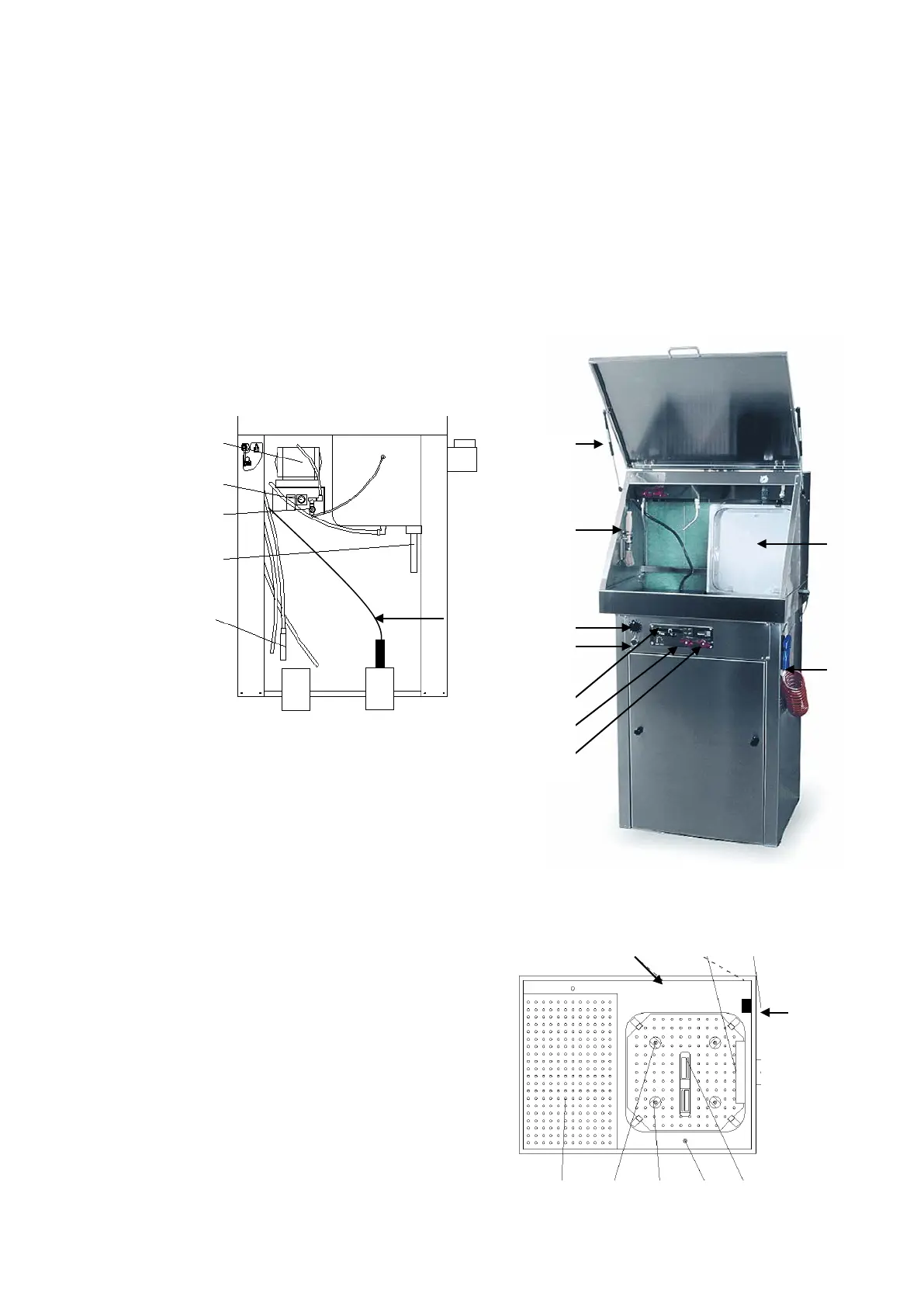

1.3 Functions of lower part of the installation
1. Main valve – for pump or final wash
2. Automatic washing timer
3. Final washing push-button
4. Brush feeding valve
5. Pump switch
6. Washing basin cover
7. Brush
8. Pneumatic pump
9. Air pressure regulator valve
10. Basin unloading pipe
11. Washing liquid aspiration pipe (with filter)
12. Manual cleaning grill
13. Cleaning nozzles
14. Spray gun cleaning nozzles
15. Safety valve
16. Spray Gun part holder
17. Ground wire connection
18. Jerrycan for used solvent
19. Jerrycan for clean solvent
20. Air damper lid (2 x)
21. Air pistol
7
2
3
1
5
4
21
9
10
