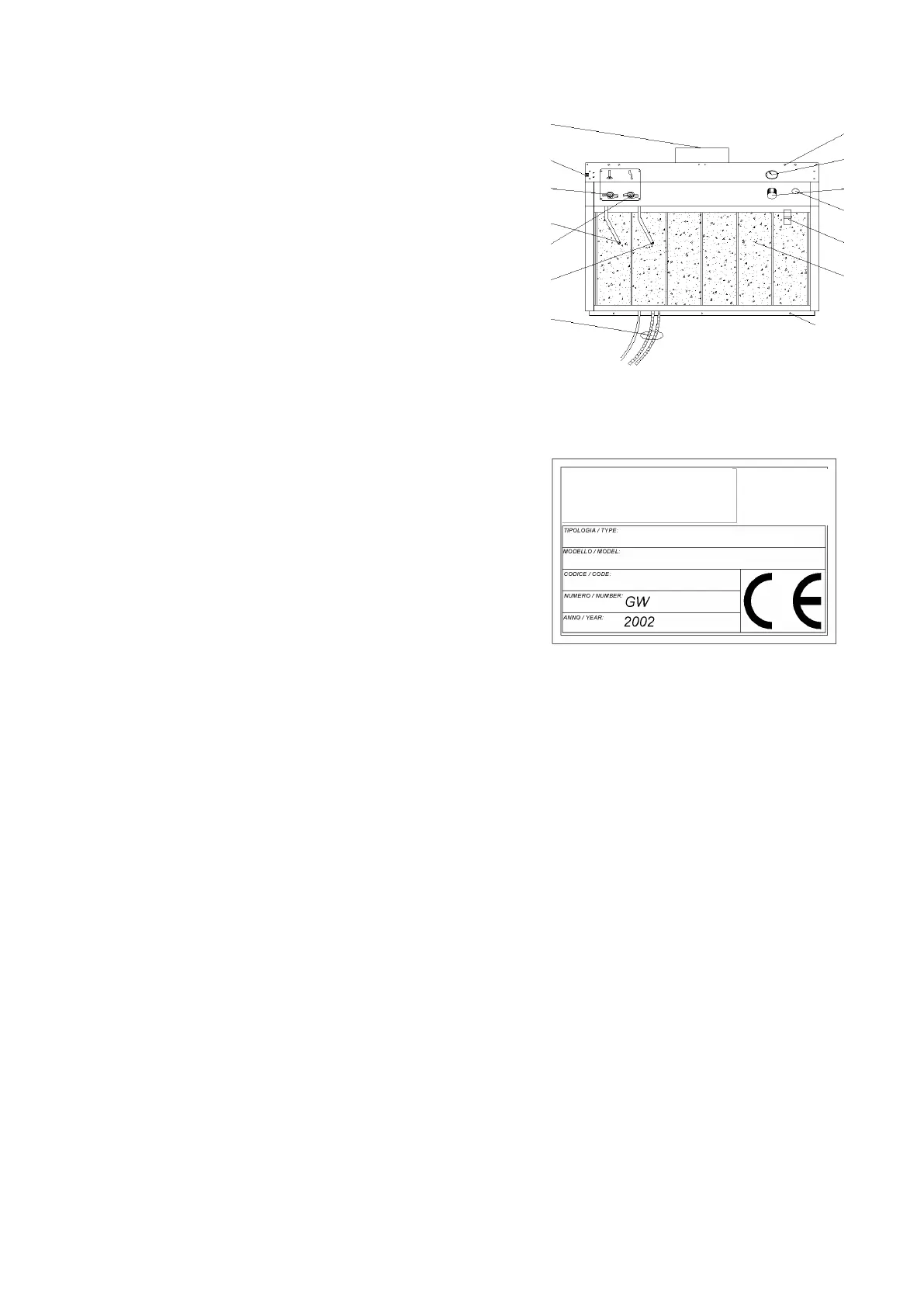

1.3 Functions of the upper part of the installation
1. Vapour extraction chimney
2. Vapour extraction regulator
3. Regulator manual cleaning with air/ solvent
4. Drain-pipe air/ solvent
5. Regulator manual cleaning with solvent
6. Drain-pipe solvent
7. Liquid aspiration pipes (4 x)
8. Manometer (air pressure)
9. Pressure regulator
10. Quick connector for spray gun
11. Cover safety clip
12. Paint stop filter
Supplied accessories
• 1 Earth cable
• 1 jerry can (20 L)
• 1 Manual
• Hazard sticker; to be placed on the inside of the machine lid.
1.4 Identification
Every Spray gun washer has an identification plate with:
• Brand of the producer
• Name and address of Service company
• Model name
• Serial number
• CE sign
The information on this plate must always be mentioned when
applying for service or spare parts.
1.6 Technical data HR 3000
Weight: 70 kg
Dimensions (HxWxL): 1580 x 600 x 840 mm
Dimensions basin (HxWxL): 400 x 350 x 400 mm
Dimensions working plain (LxW): 580 x 320 mm
Capacity solvent can: 20 L
Diameter vapour chimney: 180/90 mm
Number of spray guns per washing: 2
Air pressure: 4 – 5 bar
Number of cans in lower part: 2
Airspeed at entrance of vapour chimney: 0,52 m/sec
Sound level: 79,5 dB(A)
1.7 Sound level
The sound level of the gun cleaner was measured with an empty machine during work conditions and by
means of a sound level meter with integrator.
Measurements have been performed by a qualified laboratory employee in conformity with
EN ISO-norm 3746/96. The results are:
- Acoustic average level at the workplace LpA = 77.9 dB(A)
- Acoustic average level LpAm = 75.4 dB(A)
